SAIL-M12WM12G-4S5.0U
SAIL-M12WM12G-4S5.0U
Dimensioned drawing
Male, angled
SAIL-M12WM12G-4S5.0U
Dimensioned drawing
Straight socket
SAIL-M12WM12G-4S5.0U
Pole scheme
M12 = A-coded
SAIL-M12WM12G-4S5.0U
Pole scheme
M12 = A-coded
SAIL-M12WM12G-4S5.0U
Wiring diagram

SAIL-M12WM12G-4S5.0U

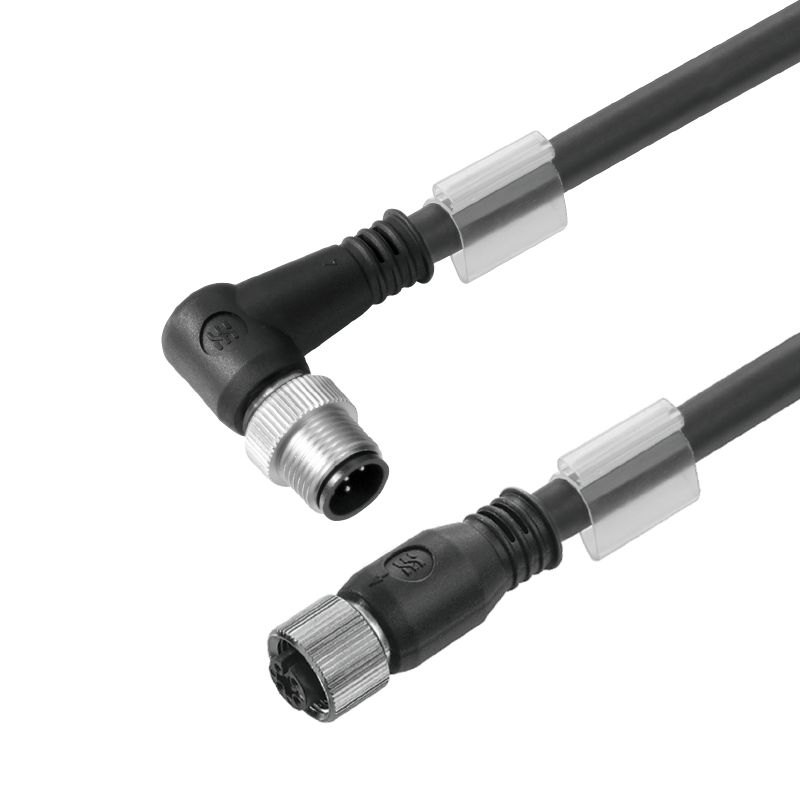

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 5 m, pin, angled - bush straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Art.-Nr. 1059690500
Datenblatt herunterladen Ürün İndirmleri Mühendislik desteği
Aksesuarlar 6 İlgili ürünler 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 5 m, pin, angled - bush straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No
Order No.
1059690500
Type
SAIL-M12WM12G-4S5.0U
GTIN (EAN)
4032248807727
Qty.
1 adet

Dimensions and weights

Net weight
207,68 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Aderquerschnitt
0,34 mm²
Bending cycles at torsion
> 1 Mio.
Cable Material
PUR halogen-free
Ciclos de flexión
2 Mio
Colour coding
brown
white
blue
black
Configurable cable length
No
Drain wire integrated
No
Halogen
No
Hybrid cable
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiation crosslinked
No
Kabellänge
5 m
Kärna i enlighet med UL AWM-stil
10493 (80 °C / 300 V)
LABS-free
Yes
Length of torsion
1 m
Mantelfarbe
black
Number of poles
4
Number of wires
4
Outside diameter
5 mm ± 0.2 mm
Radio de flexión mín., con movimiento
10 x cable diameter
Radio de flexión mín., fijo
5 x cable diameter
Resistance to spread of flame
in accordance with IEC 60332-1 / UL 1581 FT2
in accordance with IEC 60332-2-2
Resistant to welding beads
No
Schleppkettentauglichkeit
Yes
Sheath material
PUR
Sheath material hygroscopic
No
Shielded
Yes
Speed
3 m/s
Temperature range, moving
-25...80 °C
Temperature range, stationary
-40...80 °C
Torsion resistance
180 °/m
UL AWM 방식 규격 외부 클래딩
20549 (80 °C / 300 V)
Welding spark resistance
No
Ölbeständigkeit
Yes

General technical data

IP65
IP66
IP67
IP68
when screwed in
Coding
A-coded
Connection thread
M12 / M12
Contact material
Copper alloy
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
109 Ω
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Temperature range of housing
-25…+85 °C
Threaded ring material
Brass, nickel-plated
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, angled - bush straight

Electrical properties

Insulation resistance
109 Ω
Nominal voltage
250 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Standardní konektor
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, Number of poles: 4, male contact, angled 0°, plug, shielded

Plug, right

Plug right
M12, A-coded, Number of poles: 4, female contact, straight, plug, shielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
