SFM 2/12 1.8-2.5 MM WS
SFM 2/12 1.8-2.5 MM WS

SFM 2/12 1.8-2.5 MM WS

Segnafili e segnacavi, 1.8 - 2.5 mm, 12 x 4.6 mm, bianco

Produkt ID 2719090000
Download datablad Engineering-support Produktdownloads
Tilbehør 2 Anvendte produkter 6
Approvals Dati generali per l’ordinazione 치수 및 중량 Conformità ambientale del prodotto General data Conductor and cable markers Klasyfikacje

Approvals

ROHS
Conform

Dati generali per l’ordinazione

Version
Segnafili e segnacavi, 1.8 - 2.5 mm, 12 x 4.6 mm, bianco
Best.-Nr.
2719090000
Type
SFM 2/12 1.8-2.5 MM WS
GTIN (EAN)
4050118888126
Qty.
1.400 Styk

치수 및 중량

Height
12 mm
Wysokość (cale)
0,472 inch
Width
4,6 mm
Width (inches)
0,181 inch
Net weight
0,212 g

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme senza esenzione
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
PC-ABS
TPU
Colour
white
compatible printer
[THM MULTIMARK](~/p/2599430000)
Halogen
No

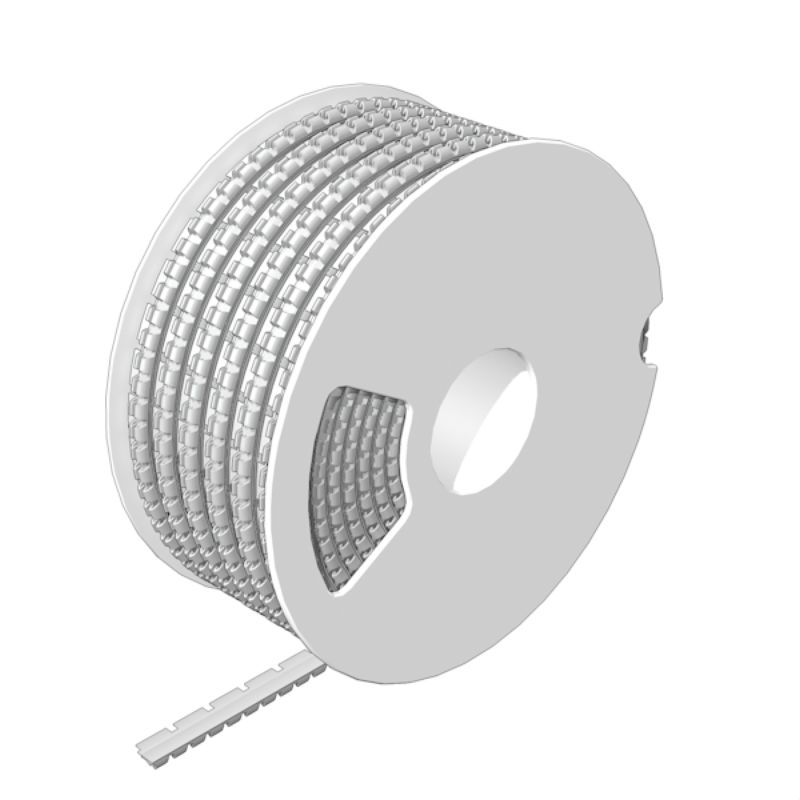

Number per roll
1400
Operating temperature range, max.
90 °C
Operating temperature range, min.
-50 °C
Printed characters
without
Size of labelling field
3.3 x 9.5 mm
Type of printing
neutral
UL 94 flammability rating
V-2
Version
bepattintható lábbal
Width
4,6 mm

Conductor and cable markers

Conductor cross-section, max.
1,5 mm²
Conductor cross-section, min.
0,75 mm²
Conductor O.D.
1.8 - 2.5 mm
Conductor O.D., max.
2,5 mm
Conductor O.D., min.
1,8 mm
Cross-section for connected wire
0.75 - 1.5 mm²
Halogen
No

Klasyfikacje

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
