Özellikler

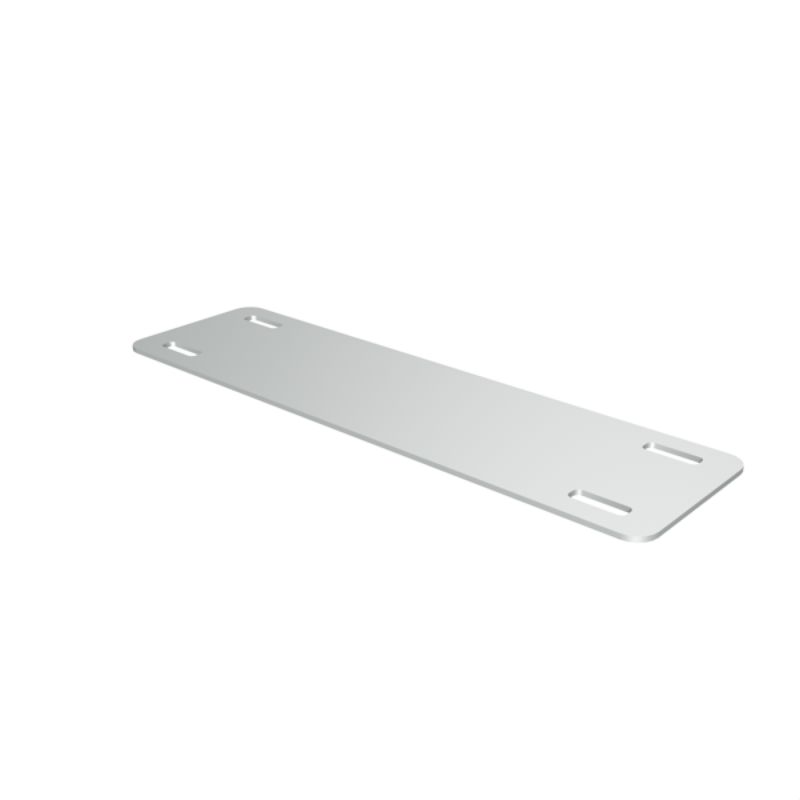

| Version | MetalliCard, Conductor and cable markers, 7 - 40 mm, 60 x 17 mm, silver |
| Order No. | 1500250000 |
| Type | SFX-M 17/60-5 AL |
| GTIN (EAN) | 4050118308778 |
| Qty. | 50 adet |
| Depth | 0,8 mm |
| Depth (inches) | 0,031 inch |
| Height | 60 mm |
| Height (inches) | 2,362 inch |
| Width | 17 mm |
| Width (inches) | 0,669 inch |
| Net weight | 1,48 g |
| Operating temperature range | -55...130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | silver |
| Material | Anodized aluminium |
| Number of markers per combination | 1 MetalliCard = Conductor and cable markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -55...130 °C |
| Operating temperature range, max. | 130 °C |
| Operating temperature range, min. | -55 °C |
| Recommended industries |
Process
Energy |
| Size of labelling field | 17.2 x 40 mm |
| Width | 17 mm |
| Cable tie passage | Flat |
| Conductor cross-section, max. | 500 mm² |
| Conductor cross-section, min. | 16 mm² |
| Conductor O.D. | 7 - 40 mm |
| Conductor O.D., max. | 40 mm |
| Conductor O.D., min. | 7 mm |
| Cross-section for connected wire | 16 - 500 mm² |
| Suitable cable tie | Plastic |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61915) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1500250000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1500250000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
