Özellikler

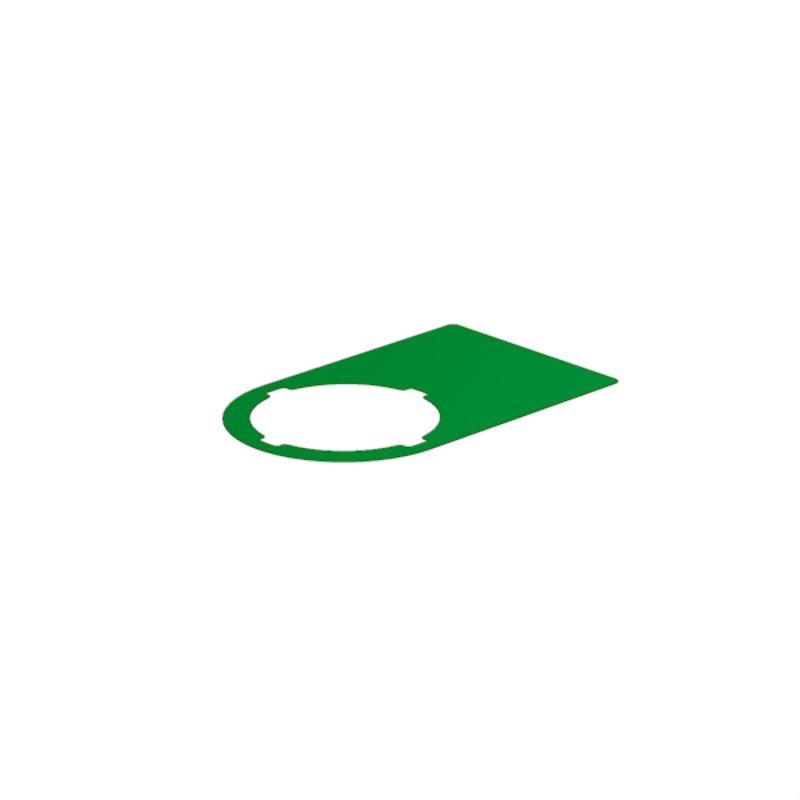

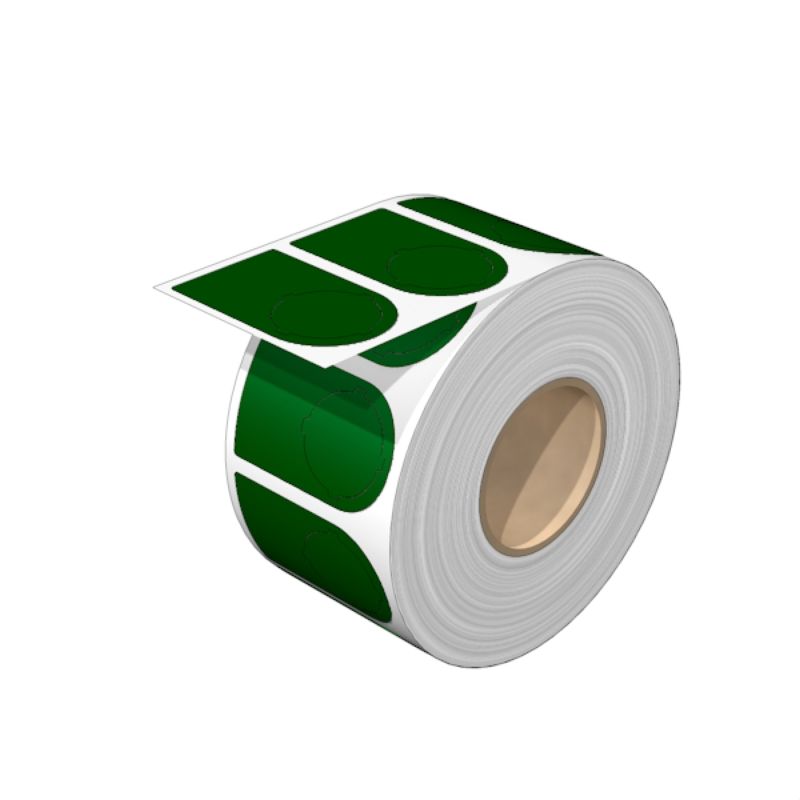

| Version | SwitchMark, Device markers, 47.75 x 27 mm, green |
| Order No. | 2005920000 |
| Type | SM 27/18-22 MM GN |
| GTIN (EAN) | 4050118391022 |
| Qty. | 1.000 adet |
| Depth | 0,1 mm |
| Depth (inches) | 0,004 inch |
| Height | 47,75 mm |
| Height (inches) | 1,88 inch |
| Width | 27 mm |
| Width (inches) | 1,063 inch |
| Diameter | 22 mm |
| Net weight | 0,393 g |
| Operating temperature range | -40...120 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Adhesive | Acrylate adhesive |
| Approval acc. to UL 969 | Yes |
| Colour | green |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | No |
| Material | Polyester |
| Operating temperature range | -40...120 °C |
| Operating temperature range, max. | 120 °C |
| Operating temperature range, min. | -40 °C |
| Size of labelling field | 18 x 27 mm |
| UL 94 flammability rating | V-0 |
| Version |
halogen-free
Self-adhesive |
| Width | 27 mm |
| Diameter | 22 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65719) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2005920000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2005920000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
