Özellikler

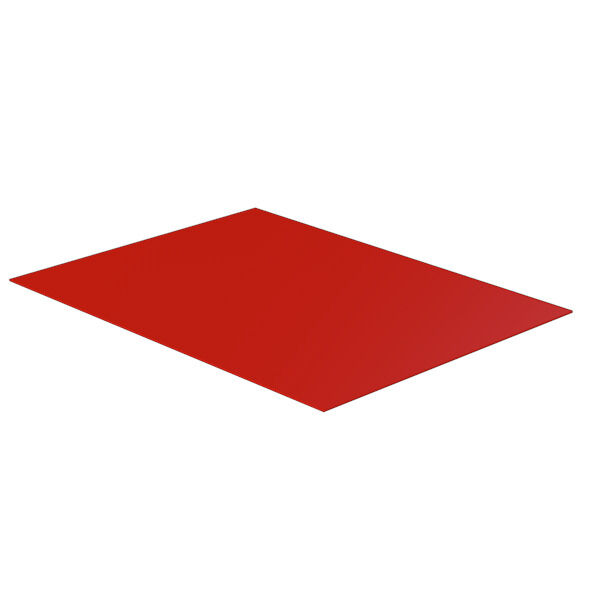

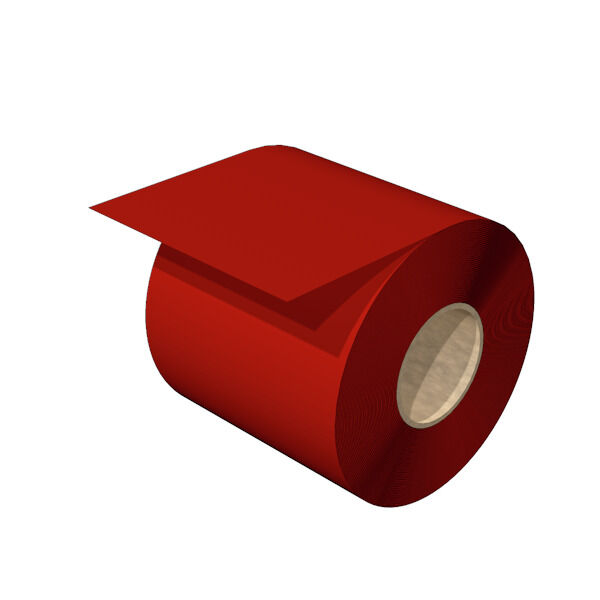

| Version | Device markers, Device markers, 90 x , red |
| Order No. | 2817430000 |
| Type | THM PV EL 90 RT 30M |
| GTIN (EAN) | 4064675322740 |
| Qty. | 1 adet |
| Depth | 0,1 mm |
| Depth (inches) | 0,004 inch |
| Height | 90 mm |
| Height (inches) | 3,543 inch |
| Length | 30.000 mm |
| Length (inches) | 1.181,1 inch |
| Net weight | 290 g |
| Adhesive | Polyacrylate adhesive |
| Approval acc. to UL 969 | Yes |
| Colour | red |
| Halogen | Yes |
| Length | 30.000 mm |
| Material | Vinyl film |
| Operating temperature range, max. | -50 °C |
| Operating temperature range, min. | 110 °C |
| Printed characters | without |
| UL 94 flammability rating | V-0 |
| Halogen | Yes |
| Halogen | Yes |
| White paper |
[Fact Sheet PV Markierer](https://mdcop.weidmueller.com/mediadelivery/asset/900_290539)
[Fact Sheet EN PV Markers](https://mdcop.weidmueller.com/mediadelivery/asset/900_290548) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
