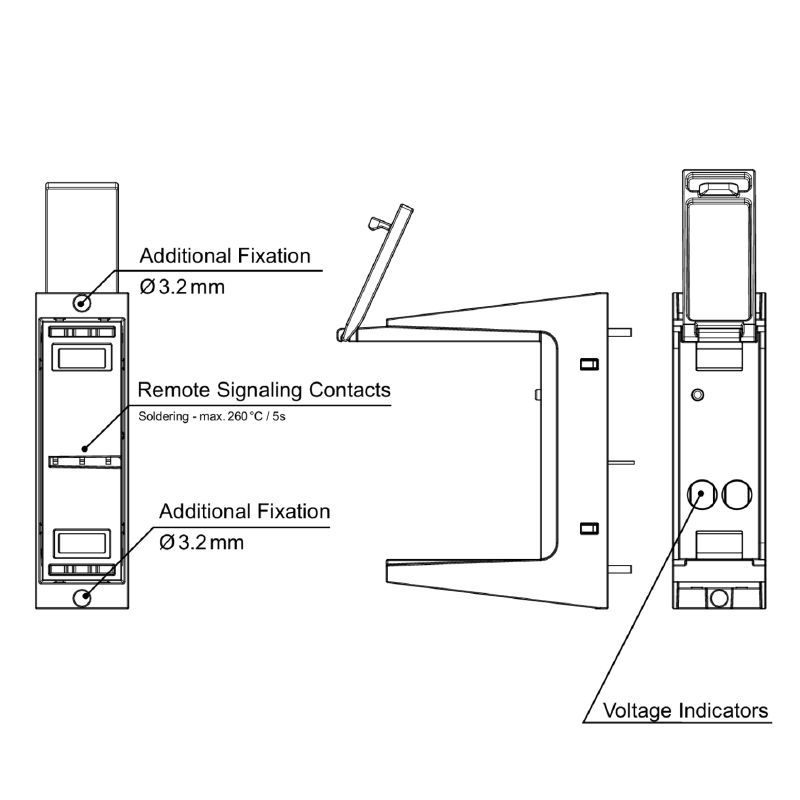

Dimensioned drawing
VPCB PV I+II M 1000
Example of use
VPCB PV I+II M 1000
Electric symbol
Schematic circuit diagram
VPCB PV I+II M 1000
VPCB PV I+II M 1000

VPCB PV I+II M 1000

Bu ürün yakında mevcut olmayacak.

Ürün No. 2665750000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
İlgili ürünler 11
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Datos generales Insulation coordination acc. to EN 50178 Caractéristiques techniques photovoltaïque Rated data IEC / EN Connection data Electrical data General data Guarantee Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Order No.
2665750000
Type
VPCB PV I+II M 1000
GTIN (EAN)
4050118686289
Qty.
20 adet
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1780264800000)/

Dimensions and weights

Depth
52,2 mm
Depth (inches)
2,055 inch
Height
61,6 mm
Height (inches)
2,425 inch
Width
17,9 mm
Width (inches)
0,705 inch
Net weight
20 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...85 °C
Humidity
5 - 95% rel. humidity

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Datos generales

Colour
grey
Design
miscellaneous
Protection degree
IP20
UL 94 flammability rating
V-0
Version
Miscellaneous

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Caractéristiques techniques photovoltaïque

Conditions and requirements
EN 50539-11
Discharge current In (8/20 µs)
20 kA
Lightning test current Iimp (10/350 µs)
6.25 kA
Operating height in the grounded PV system
≤ 4000 m
PV system voltage (Ucpv), max.
1.500 V
Short-circuit curent ISCPV
11 kA
Třída požadavků
Type I/II

Rated data IEC / EN

Discharge current Imax (8/20µs) wire-PE
40 kA
Integrated back-up fuse
No
Lightning test current Iimp (10/350 µs)
6.25 kA
Number of poles
1
Signalling contact
No
Voltage type
DC

Connection data

Type of connection
Solder connection

Electrical data

Voltage type
DC

General data

Number of poles
1
Protection degree
IP20
Colour
grey

Guarantee

Time interval
5 years

Classifications

ETIM 8.0
EC002496
ETIM 9.0
EC002496
ETIM 10.0
EC002496
ECLASS 14.0
27-17-14-03
ECLASS 15.0
27-17-14-03
