VPU AC II 3+1 300/50

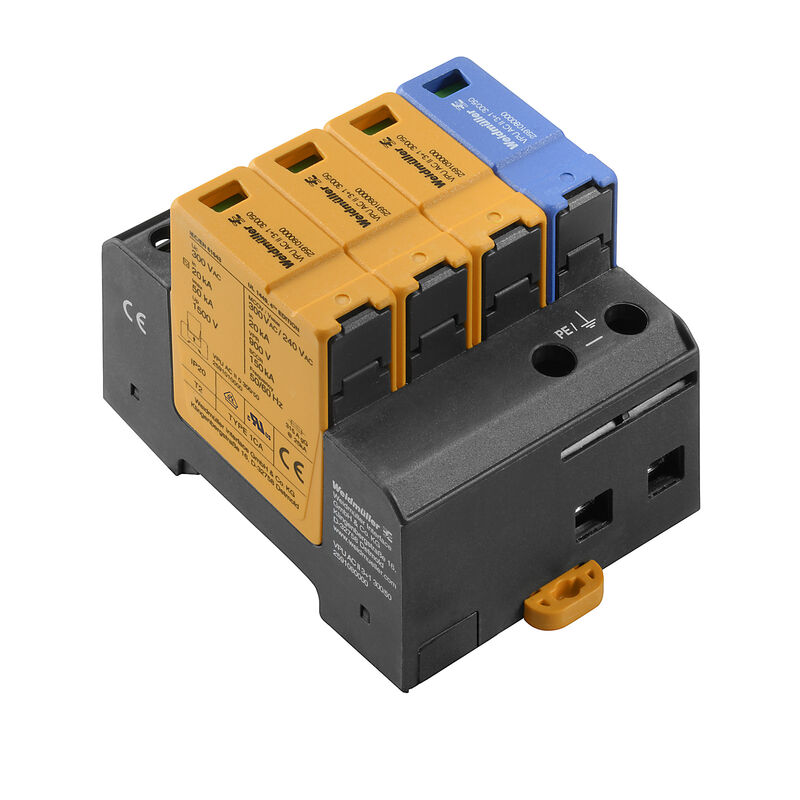

Product image
Abb.ähnlich
VPU AC II 3+1 300/50
Electric symbol

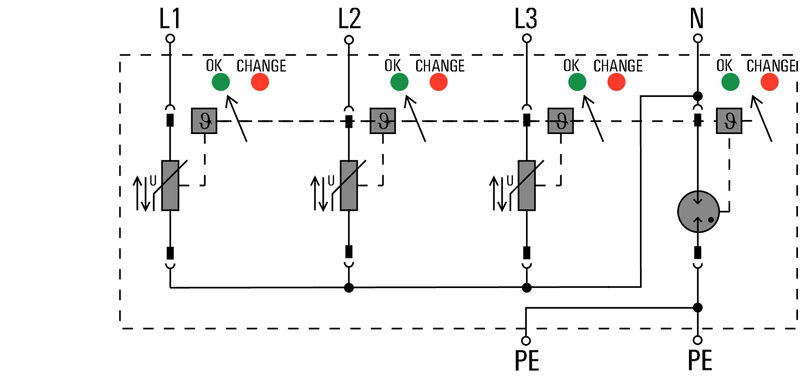

Schematic circuit diagram

VPU AC II 3+1 300/50

Surge voltage arrester, Low voltage, Surge protection, TN-C-S, TN-S, TT, IT with N, IT without N

Produkt ID 2591080000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 4 Reservedele 3 Anvendte produkter 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Connection data, remote alert General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Connection data Electrical data General data Guarantee Important note Product images Classifications

Approvals

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/756ea985-024d-4142-85a7-acc2e9775394/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificat Nº (cURus)
E3542610000

General ordering data

Versión
Surge voltage arrester, Low voltage, Surge protection, TN-C-S, TN-S, TT, IT with N, IT without N
Código
2591080000
Tipo
VPU AC II 3+1 300/50
GTIN (EAN)
4050118599855
Qty.
1 Styk

Dimensions and weights

Profundidad
68 mm
Byggdjup (tum)
2,677 inch
Depth including DIN rail
76 mm
Altura
90 mm
Высота (в дюймах)
3,543 inch
Anchura
72 mm
Width (inches)
2,835 inch
Peso neto
453 g

Temperatures

Temperatura de almacenamiento
-40 °C...85 °C
Temperatura ambiente
-40 °C…85 °C
Temperatura de servicio
-40 °C...85 °C
Humidity
5 - 95% rel. humidity

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
Ne SVHC nad 0,1 wt%

Rated data UL

Ambient temperature (operational), max.
85 °C
정격 전압 UN
240 V
VPR (N-PE)
1.000 V
MCOV (L-PE)
300 V
MCOV (N-PE)
305 V
SCCR
150 kA
In
20 kA
Categoría
SPD TYPE 1CA
Température ambiante (fonctionnement), min.
-40 °C
N° certificato (cURus)
E3542610000
MODE
all modes
VPR (L-L)
1.800 V
VPR (L-N)
900 V
VPR (L-PE)
1.000 V
Voltage type
AC
UL Energy Networks
3-phase WYE

Connection data, remote alert

Connection type
PUSH IN

General data

Colour
black
orange
blue
Design
Installation housing; 4TE
Insta IP 20
Mounting rail
TS 35
Operating altitude
≤ 4000 m
Optical function display
green = OK; red = arrester is defective - replace
Protection degree
IP20 in installed state
Segment
Power distribution
UL 94 flammability rating
V-0
Version
Surge protection

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Combined pulse UOC
6 kV
Discharge current (type III)
3 kA
Discharge current Imax (8/20µs) N-PE
65 kA
Discharge current Imax (8/20µs) wire-PE
50 kA
Discharge current In (8/20µs) N-PE
40 kA
Discharge current In (8/20µs) wire-PE
20 kA
Energy coordination (≤10 m)
Type II
Type III
Folgestromlöschfähigkeit Ifi
Follow current need not be taken into account
Frequency range, max.
60 Hz
Frequency range, min.
50 Hz
Fuse protection
No Fuse neccessary ≤315 A gG
250 A gG @50 kA Isccr
315 A gG @25 kA Isccr
Fusible de soporte integrado
No
Högsta normalspänning, Uc (N-PE)
305 V
Leakage current at Un
1 µA
Low voltage network
TN-C-S
TN-S
TT
IT with N
IT without N
Mains voltage
230 V / 400 V
Max. continuous voltage, Uc (AC)
300 V
Number of poles
4
Protection level Up at IN (L/N-PE)
≤ 1500 V
Protection level Up at IN (N-PE)
≤ 1.5 kV
Rated voltage (AC)
230 V
Requirements category acc. to IEC 61643-11
Type II
Type III
Requirements class, acc. to EN 61643-11
T2
T3
Response time / fallback time
≤ 25 ns
Short-circuit current rating ISCCR
50 kA
Signalling contact
No
SPD type
T2
T3
Standards
IEC 61643-11
EN 61643-11
UL 1449
Temporary surge voltage (over-voltage) - TOV
337 V
Voltage type
AC

Connection data

Stripping length
15 mm
Wire connection method
Screw connection
Type of connection
Screw connection
Stripping length, rated connection
15 mm
Moment obrotowy dociągający, min.
3 Nm
Tightening torque, max.
4,5 Nm
Sections de raccordement, raccordement nominal
16 mm²
Clamping range, min.
1,5 mm²
Clamping range, max.
35 mm²
Wire connection cross section AWG, min.
AWG 16
Wire connection cross section AWG, max.
AWG 2
Wire cross-section, solid, min.
1,5 mm²
Wire cross-section, solid, max.
35 mm²
Wire connection cross section, finely stranded, min.
1,5 mm²
Wire connection cross section, finely stranded, max.
25 mm²
Connection cross-section, stranded, min.
1,5 mm²
Connection cross-section, stranded, max.
35 mm²

Electrical data

Voltage type
AC

General data

Number of poles
4
Protection degree
IP20 in installed state
Colour
black
orange
blue

Guarantee

Time interval
5 years

Important note

Información de producto

Only applicable to IT power systems where the earth on the distribution transformer is interconnected with the earth on the consumer side (RE=RA in Figure 44.A1 of IEC 60634-4-44:2018). For use in DC applications, please use the fuse of SIBA Type NH2XL aR/aSF DC 1500 V

Product images

Classifications

ETIM 8.0
EC000941
ETIM 9.0
EC000941
ETIM 10.0
EC000941
ECLASS 14.0
27-17-12-02
ECLASS 15.0
27-17-12-02
