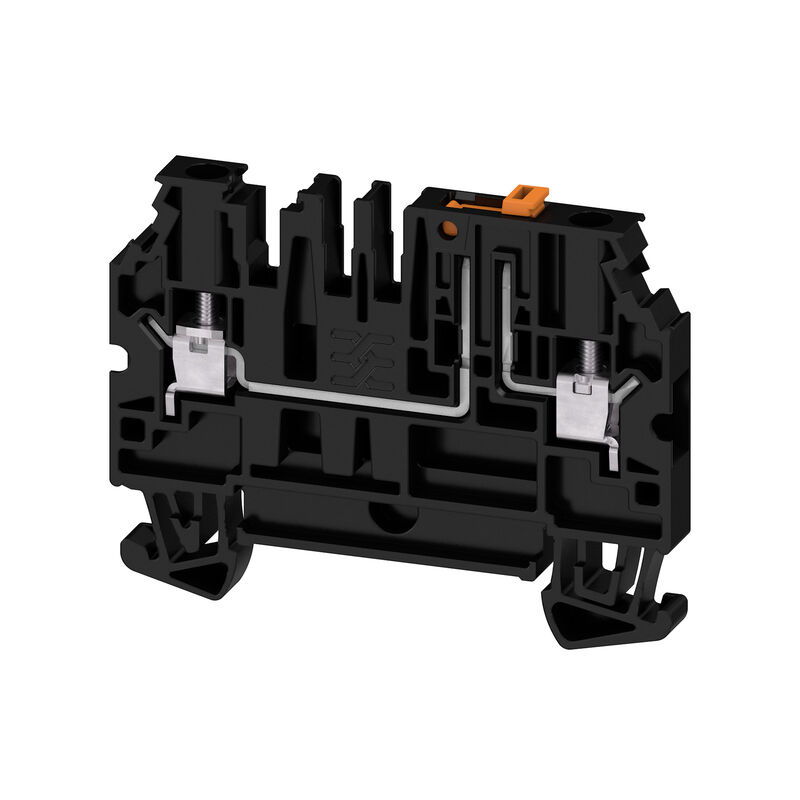

Test-disconnect terminal, Screw connection, black, 4 mm², 28 A, 500 V, Number of connections: 2, Number of levels: 1

Ürün No. 2892760000
Konfigüratörde aç
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 102 İlgili ürünler 92
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Rögzíthető vezetékek (névleges csatlakozás) Dati dimensionamento secondo CSA General Rating data UL 등급 데이터 Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/35c2d189-508a-474d-b19d-eb9035fb9c7c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Test-disconnect terminal, Screw connection, black, 4 mm², 28 A, 500 V, Number of connections: 2, Number of levels: 1
Order No.
2892760000
Type
W2C 4 DT BK
GTIN (EAN)
4064675884415
Qty.
50 adet

Dimensions and weights

Depth
48 mm
Depth (inches)
1,89 inch
Height
60 mm
Height (inches)
2,362 inch
Width
6,1 mm
Width (inches)
0,24 inch
Net weight
12,87 g

Temperatures

Ambient temperature
-60 °C…85 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Barevný
black
Colour of operational elements
orange
Klasifikace hořlavosti UL 94
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
TUEV20ATEX8502U
Certificate No. (IECEX)
IECEXTUR20.0014U
Max. voltage (ATEX)
550 V
Current (ATEX)
26 A
Sección máx. del conductor (ATEX)
4 mm²
Max. voltage (IECEX)
550 V
Current (IECEX)
26 A
Wire cross section max. (IECEX)
4 mm²

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Počet pólů na řadu
1
Úrovně propojené interně
No
Tragschiene
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
No
Open sides
right
Snap-on
Yes
Type of mounting
TS 35

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

Rögzíthető vezetékek (névleges csatlakozás)

Blade size
0,6 x 3,5 mm
Clamping range, max.
6 mm²
Clamping range, min.
0,25 mm²
Clamping screw
M 3
Connection cross-section, finely stranded, min.
0,25 mm²
Connection cross-section, stranded, max.
6 mm²
Connection cross-section, stranded, min.
0,25 mm²
Connection direction
on side
Gauge to IEC 60947-1
A3
Number of connections
2
Stripping length
8 mm
Tightening torque, max.
0,8 Nm
Tightening torque, min.
0,5 Nm
Twin wire-end ferrules, max.
1,5 mm²
Twin wire-end ferrules, min.
0,5 mm²
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
AWG 10
Wire connection cross section AWG, min.
AWG 24
Wire connection cross section, finely stranded, max.
6 mm²
Wire connection cross section, finely stranded, min.
0,25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,25 mm²
Wire connection cross-section, solid core, max.
6 mm²
Wire connection cross-section, solid core, min.
0,25 mm²

Dati dimensionamento secondo CSA

Certificate No. (CSA)
227442-80219640
Current size B (CSA)
20 A
Current size C (CSA)
20 A
Current size D (CSA)
5 A
Voltage size B (CSA)
300 V
Voltage size C (CSA)
300 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
24 AWG

General

Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 10
Wire connection cross section AWG, min.
AWG 24

Rating data

Rated cross-section
4 mm²
Rated voltage
500 V
Bemessungsspannung DC
500 V
Nennstrom
28 A
Current at maximum wires
28 A
Normen
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1 mΩ
Rated impulse withstand voltage
6 kV
Pollution severity
3
Surge voltage category
III

UL 등급 데이터

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
24 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
24 AWG

Classifications

ETIM 8.0
EC000902
ETIM 9.0
EC000902
ETIM 10.0
EC000902
ECLASS 14.0
27-25-01-09
ECLASS 15.0
27-25-01-09
