Özellikler

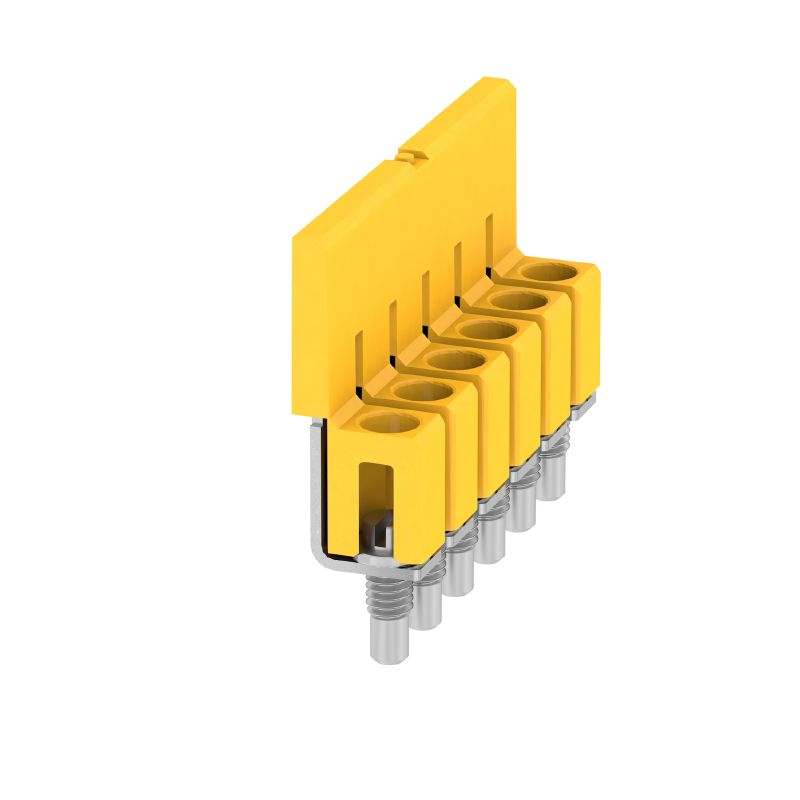

| Version | Cross-connector (terminal), when screwed in, yellow, 32 A, Number of poles: 6, Pitch in mm (P): 5.10, Insulated: Yes, Width: 7 mm |
| Order No. | 1054060000 |
| Type | WQV 2.5/6 |
| GTIN (EAN) | 4008190102272 |
| Qty. | 10 adet |
| Depth | 18 mm |
| Depth (inches) | 0,709 inch |
| Height | 29,5 mm |
| Height (inches) | 1,161 inch |
| Width | 7 mm |
| Width (inches) | 0,276 inch |
| Net weight | 4,5 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA 66 |
| Colour | yellow |
| UL 94 flammability rating | V-0 |
| Version | For the terminals |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Number of cross-connected terminals | 6 |
| Rated current, 2-pole | 32 A |
| Rated current, multi-pole | 32 A |
| Tightening torque range for fixing screw | 0.4...0.8 Nm |
| Type | Cross-connector |
| Pitch in mm (P) | 5,1 mm |
| Installation advice | Direct mounting |
| Number of poles | 6 |
| Rated current | 32 A |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224201) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1054060000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1054060000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1054060000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
