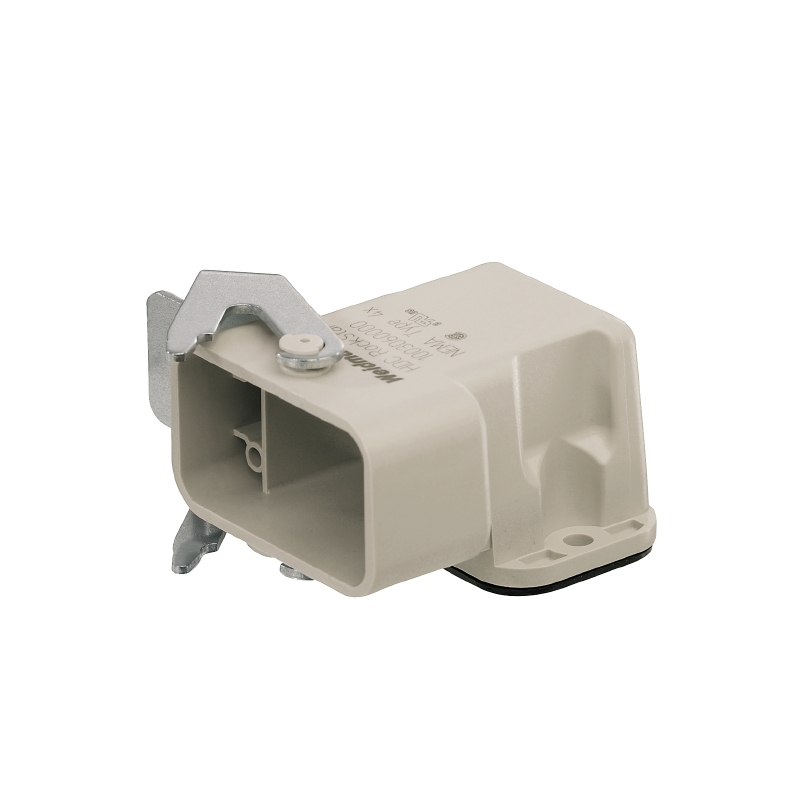

HDC HQP AWLU   Item No. 1003060000

HDC enclosures, Size: HQ, Protection degree: IP65, Open base, Side-locking clamp on lower side, Standard

Please note that any possible discounts or additional costs are not yet applied here. The definitive payment amounts will be shown in the cart.

HDC HQP AWLU HDC HQP AWLU

Properties

Type HDC HQP AWLU
Order No. 1003060000
Version HDC enclosures, Size: HQ, Protection degree: IP65, Open base, Side-locking clamp on lower side, Standard
GTIN (EAN) 4032248697991
Qty. 1 ST
Length 67.1 mm
Length (inches) 2.641727 inch
Width 37 mm
Width (inches) 1.45669 inch
Height 75.6 mm
Height (inches) 2.976372 inch
Depth 67.1 mm
Depth (inches) 2.641727 inch
Mounting dimension - width 38 mm
Net weight 40 g
Limit temperature -40 °C ... 125 °C
REACH SVHC DIBP 84-69-5
Cable entry angled
Height of base B1 3.5 mm
Height of housing B 54.5 mm
Hole pitch length A2 38 mm
Total length housing 45.9 mm
Width base C1 46.5 mm
Width housing C 33 mm
EMC housings No
Housing main material Plastic
Material of locking element Stainless steel, rust-proof
Protection degree IP65
Series HQ
UL 94 flammability rating V-0
Cable entry angled
Clamp version Side-locking clamp
Design Standard
Design of housing Open base
Design of locking system Side-locking clamp on lower side
Sealing NBR
Size HQ
Suitable for ModuPlug® No
Top part/bottom part/lid lower part
Type Bulkhead (feed-through)
Product family HDC enclosures
Product type Enclosures
Type Bulkhead (feed-through)
Cable entry angled
Size HQ
Protection degree IP65
Colour beige
UL 94 flammability rating V-0
Brochure/Catalogue [CAT 3 HDC 17/18 EN](http://download.weidmueller.com/asset/download/file/39468)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
Engineering Data [EPLAN, WSCAD](LINK/CAE_EN.html)
Engineering Data [STEP](http://download.weidmueller.com/asset/download/file/72743)
eClass 5.1 27-14-34-19
eClass 6.2 27-14-34-19
eClass 7.1 27-44-02-05
eClass 8.1 27-44-02-05
eClass 9.0 27-44-02-02
eClass 9.1 27-44-02-02
ETIM 3.0 EC000437
ETIM 4.0 EC000437
ETIM 5.0 EC000437
ETIM 6.0 EC000437
UNSPSC 30-21-18-01
Approvals ![CURUS](/picture/CURUS.gif)
ROHS Conform
UL File Number Search [E92202](LINK/UL_search.html)
