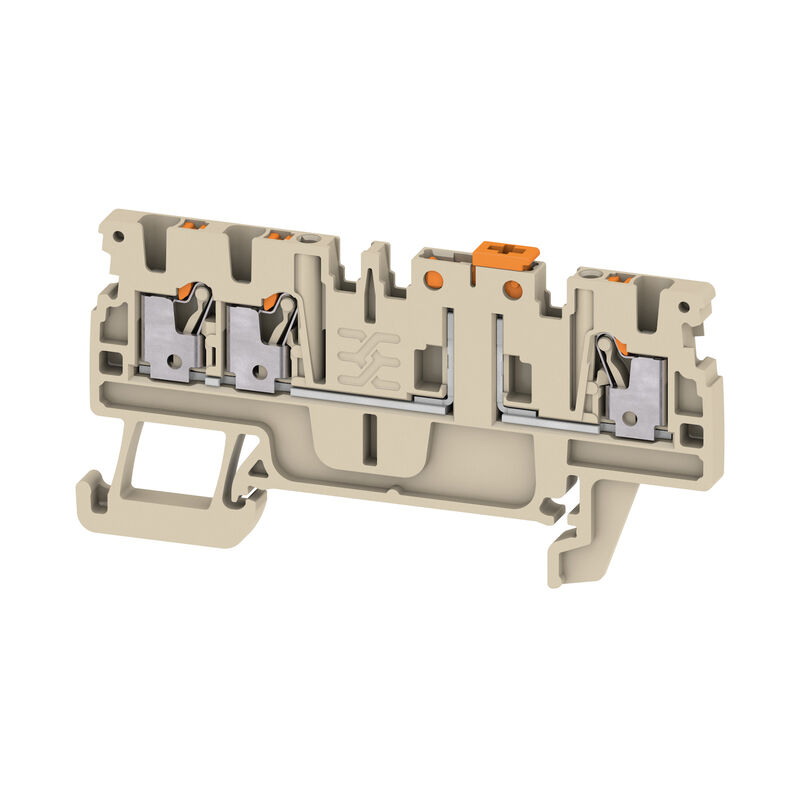

ADT 1.5 3C
ADT 1.5 3C

ADT 1.5 3C

Test-disconnect terminal, PUSH IN, 1.5 mm², 400 V, 10 A, dark beige

Product ID 2918270000
Openen in configurator
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 14 Verwante producten 160
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (rated connection) General Rating data UL rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Test-disconnect terminal, PUSH IN, 1.5 mm², 400 V, 10 A, dark beige
Order No.
2918270000
Type
ADT 1.5 3C
GTIN (EAN)
4099986550827
Qty.
100 items

Dimensions and weights

Depth
33,5 mm
Depth (inches)
1,319 inch
Height
67,5 mm
Height (inches)
2,657 inch
Width
3,5 mm
Width (inches)
0,138 inch
Net weight
5,767 g

Temperatures

Ambient temperature
-60 °C…85 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.085 kg CO2 eq.

Material data

Basic material
Wemid
Färgkod
dark beige
Colour of operational elements
orange
阻燃等级符合 UL 94
V-0

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
3
Antal potentialer per våning
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PEN function
No

Additional technical data

Explosion-tested version
No
Open sides
right
Snap-on
Yes
Type of fixing
TS 35
Type of mounting
TS 35

Conductors for clamping (rated connection)

Blade size
0.4 x 2.0 mm
Clamping range, max.
1,5 mm²
Clamping range, min.
0,14 mm²
Connection cross-section, finely stranded, min.
0,14 mm²
Connection direction
top
Gauge to IEC 60947-1
A1
Number of connections
3
Průřez připojení vodiče, pevné jádro, max.
1,5 mm²
Průřez připojení vodiče, pevné jádro, min.
0,14 mm²
Průřez připojení vodičů, jemně stáčené, min.
0,14 mm²
Průřez připojení vodičů, splétané, max.
1,5 mm²
Průřez připojení vodičů, splétané, min.
0,14 mm²
Stripping length
8 mm
Type of connection
PUSH IN
Type of connection 2
PUSH IN
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²

General

Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 26

Rating data

Rated cross-section
1,5 mm²
Rated voltage
400 V
Rated DC voltage
400 V
额定电流
10 A
Current at maximum wires
10 A
Standards
IEC 60947-7-1
Rated impulse withstand voltage
6 kV
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693
Min. przekrój przewodu (cURus)
26 AWG
Prąd rozm. B (cURus)
10 A
Напряжение, класс C (cURus)
300 V
Ток, класс C (cURus)
10 A
Ток, класс D (cURus)
10 A
電圧サイズ D（cURus）
300 V
와이어 단면적, 최대(cURus)
14 AWG
전압 크기 B(cURus)
300 V

Classifications

ETIM 8.0
EC000902
ETIM 9.0
EC000902
ETIM 10.0
EC000902
ECLASS 14.0
27-25-01-09
ECLASS 15.0
27-25-01-09
