BZT PRV8 BL 35X7.5

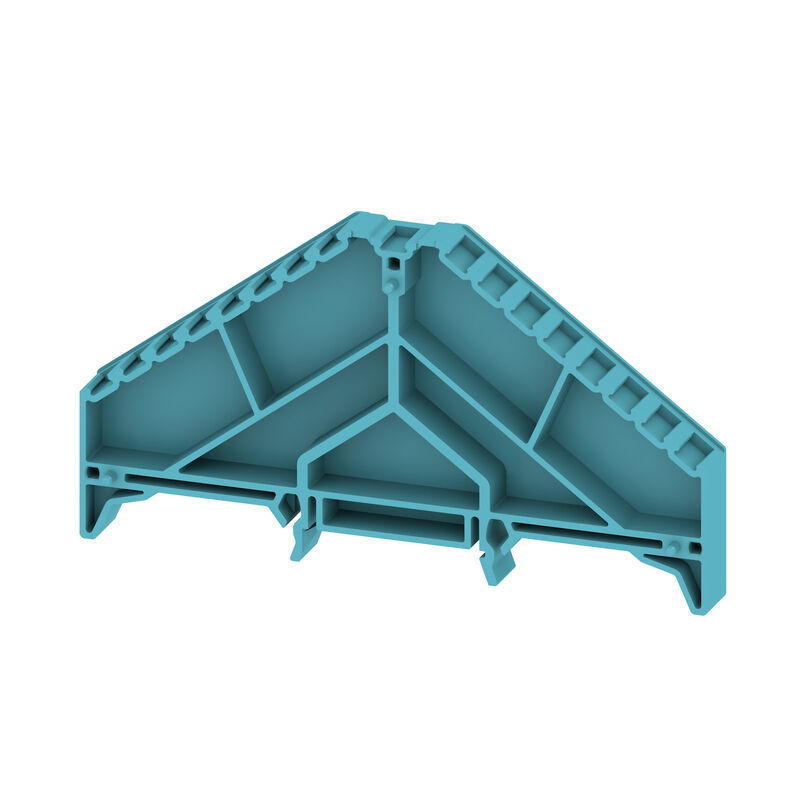

Produktbild

BZT PRV8 BL 35X7.5

P-series, Marker holder, blue, Number of levels: 8, TS 35 x 7.5

Produkt ID 1267970000
Åbn i konfiguratoren
Download datablad Teknisk support Nedladdningar av produkter
Er tilbehør til 9 Anvendte produkter 70
Zulassungen General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications General Klasifikace

Zulassungen

ROHS
Konform

General ordering data

Version
P-series, Marker holder, blue, Number of levels: 8, TS 35 x 7.5
Order No.
1267970000
Type
BZT PRV8 BL 35X7.5
GTIN (EAN)
4032248113293
Cantidad
20 Pieza

Dimensions and weights

Depth
65,6 mm
Depth (inches)
2,583 inch
Height
120 mm
Výška (v palcích)
4,724 inch
Width
10,2 mm
Width (inches)
0,402 inch
Net weight
21,7 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…80 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Keine SVHC über 0,1 Gew.-%

Material data

Basic material
Polycarbonate
Colour
blue
Grado inflamabilidad según UL 94
V-0

System specifications

Version
For the mounting rails
Number of levels
8
Carril de montaje
TS 35 x 7.5

General

Mounting rail
TS 35 x 7.5

Klasifikace

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-14-11-92
ECLASS 15.0
27-14-11-92
