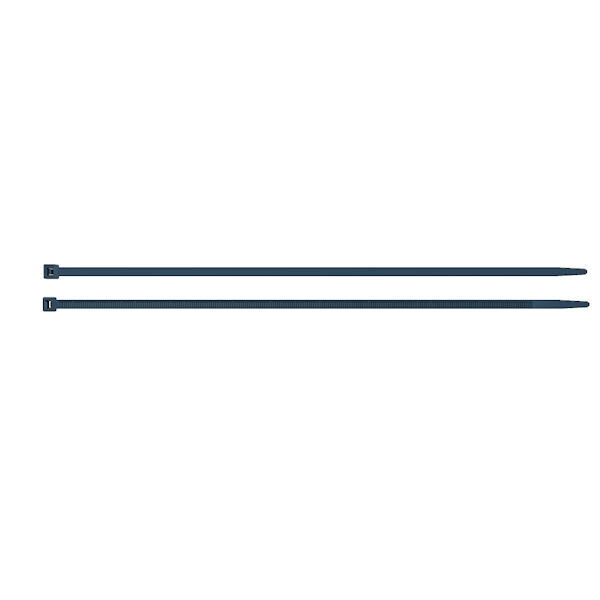

CB-DT 200/3.5 BL
CB-DT 200/3.5 BL

CB-DT 200/3.5 BL

Tuotteen tunnus 3012660000
Lataa tietosivu Tuotelataukset
Samankaltaiset tuotteet 7
Approvals General ordering data Dimensions and weights Environmental Product Compliance Installation materials Classifications

Approvals

ROHS
Conform

General ordering data

Order No.
3012660000
Type
CB-DT 200/3.5 BL
GTIN (EAN)
4099986921887
Qty.
100 items

Dimensions and weights

Depth
1 mm
Depth (inches)
0,039 inch
Height
200 mm
Height (inches)
7,874 inch
Width
3,5 mm
Width (inches)
0,138 inch
Net weight
1 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Installation materials

Basic material
PA 6.6
Bundle diameter, max.
50 mm
Bundle diameter, min.
2 mm
Detectible in accordance with Rondotest
4.7 mm Al
For re-opening
No
Halogen
No
Tensile strength
180 N
UL 94 flammability rating
UL 94
HB
UV-resistant
No
Wytrzymałość na rozciąganie (funt-siła)
40 lbf

Classifications

ETIM 8.0
EC000046
ETIM 9.0
EC000046
ETIM 10.0
EC000046
ECLASS 14.0
27-14-07-02
ECLASS 15.0
27-14-07-02
