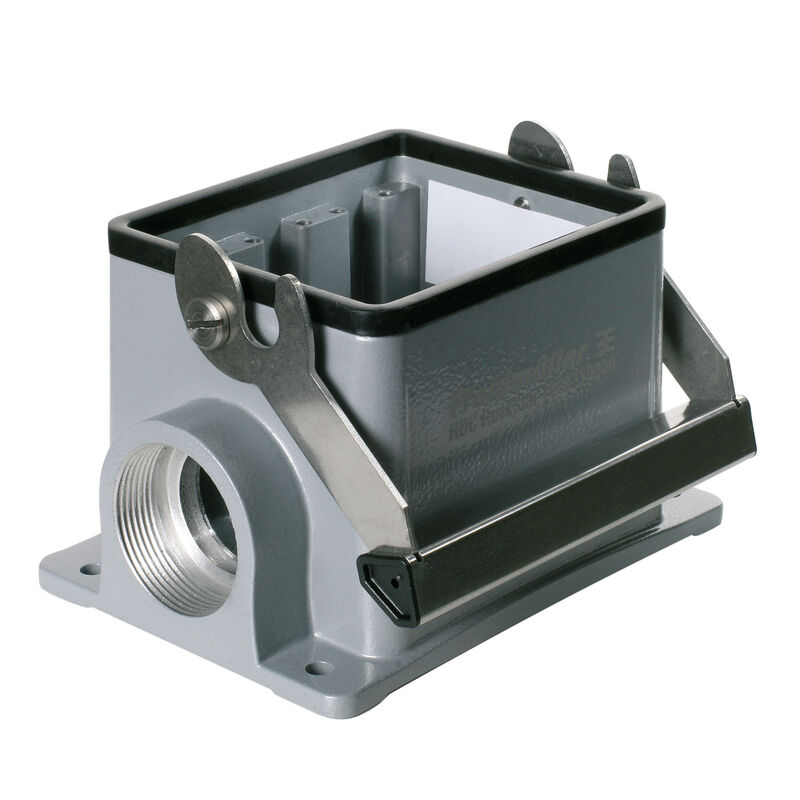

HDC 48A SLU 1PG29G
HDC 48A SLU 1PG29G

HDC 48A SLU 1PG29G

HDC - Custodie, Dimensioni di installazione: 9, Grado di protezione: IP65, in stato collegato, Custodia di base, Gancio longitudinale in basso, Standard, Dimensione entrate cavi: PG 29

Ürün No. 1666770000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 4 aksesuarıdır 4 İlgili ürünler 3
Tanúsítványok Dati generali per l’ordinazione Wymiary i masa Temperatures Conformità ambientale del prodotto Dimensions General data Version Klasyfikacje

Tanúsítványok

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

Dati generali per l’ordinazione

Version
HDC - Custodie, Dimensioni di installazione: 9, Grado di protezione: IP65, in stato collegato, Custodia di base, Gancio longitudinale in basso, Standard, Dimensione entrate cavi: PG 29
Order No.
1666770000
Type
HDC 48A SLU 1PG29G
GTIN (EAN)
4008190423889
Qty.
1 adet

Wymiary i masa

Height
79 mm
Wysokość (cale)
3,11 inch
Width
121,5 mm
Width (inches)
4,783 inch
Mounting dimension - height
67 mm
Mounting dimension - width
112 mm
Net weight
639 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme senza esenzione
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
e98b2b24-ba23-41bf-8d19-0dda3647412f
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Drilling oil
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel
  • Chemical resistance:
    Resistant
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Resistant
  • Substance:
    Coolant
  • Chemical resistance:
    Resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Resistant
  • Substance:
    Sweat
  • Chemical resistance:
    Resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Unstable
  • Substance:
    Ozone
  • Chemical resistance:
    Unstable

Dimensions

Cable entry
w. thread
Height of base B1
5 mm
Height of housing B
79 mm
Hole pitch length A2
112 mm
Total length housing
94 mm
Width base C1
92,5 mm
Width housing C
82,5 mm

General data

Protection degree
IP65
in plugged condition
Surface finish
Powder coating

Version

BG
9
Cable entry
w. thread
Clamp version
End-locking clamp
Colour (RAL)
RAL 7035
Cover
without cover
Design
Standard
Design of housing
Base housing
Design of locking system
End-locking clamp, lower side
Installation size
9
Internal thread
PG 29
Number of cable entry on top
0
Number of cable entry sideways
1
Sealing
NBR
Size of cable entries
PG 29
Suitable for ModuPlug®
No
Tightening torque
2 Nm
Top part/bottom part/lid
lower part
Type
Aufbau (Sockel)

Klasyfikacje

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
