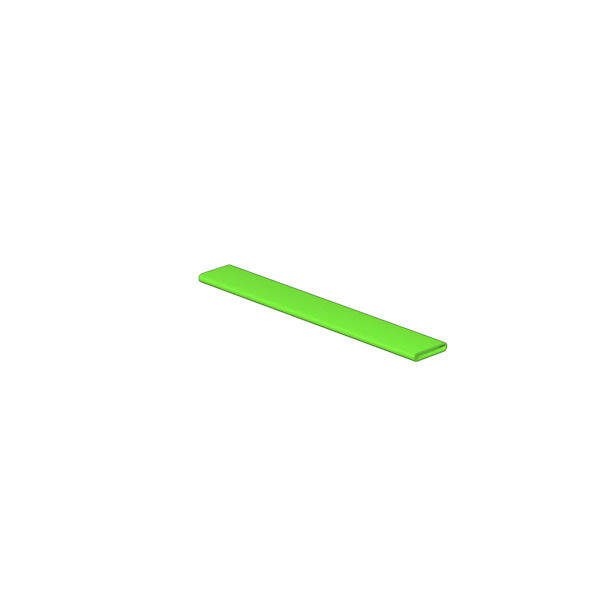

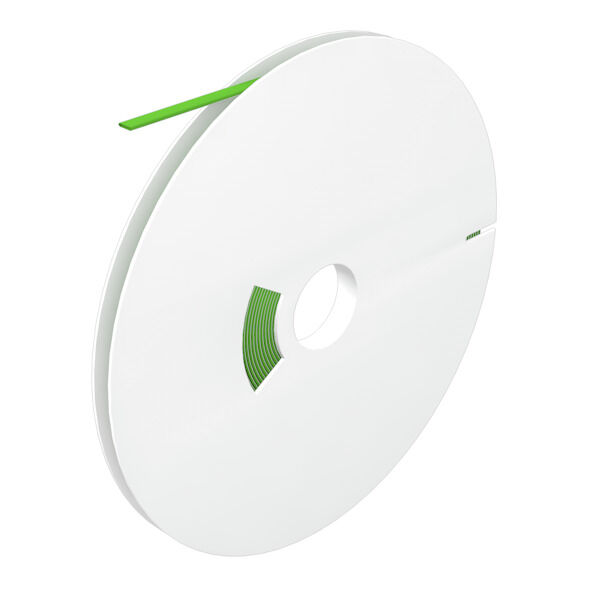

HSS-HF 2.4-4.8 EL G30M
HSS-HF 2.4-4.8 EL G30M

HSS-HF 2.4-4.8 EL G30M

컨덕터 및 케이블 마커, 2.4 - 4.8 mm, 녹색

Tuotteen tunnus 1562970000
Lataa tietosivu Product Downloads Engineering Support
Lisävarusteet 5 Samankaltaiset tuotteet 40
Approvals 일반 주문 데이터 Dimensioni e pesi Temperatures 환경 제품 규정 준수 General data Conductor and cable markers 중요 참고 사항 Классификации

Approvals

ROHS
Conform

일반 주문 데이터

Version
컨덕터 및 케이블 마커, 2.4 - 4.8 mm, 녹색
Order No.
1562970000
Type
HSS-HF 2.4-4.8 EL G30M
GTIN (EAN)
4050118367805
Qty.
1 items

Dimensioni e pesi

Depth
0,9 mm
깊이 (인치)
0,035 inch
Width
7,6 mm
Width (inches)
0,299 inch
Length
30 000 mm
Length (inches)
1 181,1 inch
Net weight
288 g

Temperatures

Operating temperature range
-55...105 °C

환경 제품 규정 준수

RoHS Compliance Status
준수, 예외 미존재
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Polyolefine
Colour
green
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
[THM-TWINMARK](~/p/1140490000)
Halogen
No
Length
30 000 mm
Number per roll
1
Operating temperature range
-55...105 °C
Operating temperature range, max.
105 °C
Operating temperature range, min.
−55 °C
Printed characters
without
Type of printing
üres
Width
7,6 mm

Conductor and cable markers

Conductor cross-section, max.
4 mm²
Conductor cross-section, min.
0,75 mm²
Conductor O.D.
2.4 - 4.8 mm
Conductor O.D., max.
4,8 mm
Conductor O.D., min.
2,4 mm
Cross-section for connected wire
0.75 - 4 mm²
Halogen
No
Rate of shrinkage
2:1
Recommended shrinking temperature
90 °C

중요 참고 사항

Product information
외부 롤 홀더 1302920000 필요

Классификации

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
