特性
版本 | 法兰 RJ45, IP67, 类别 1 金属,RJ45/RJ45 耦合, Cat.6A / Class EA (ISO/IEC 11801 2010) |
订货号 | 1963470000 |

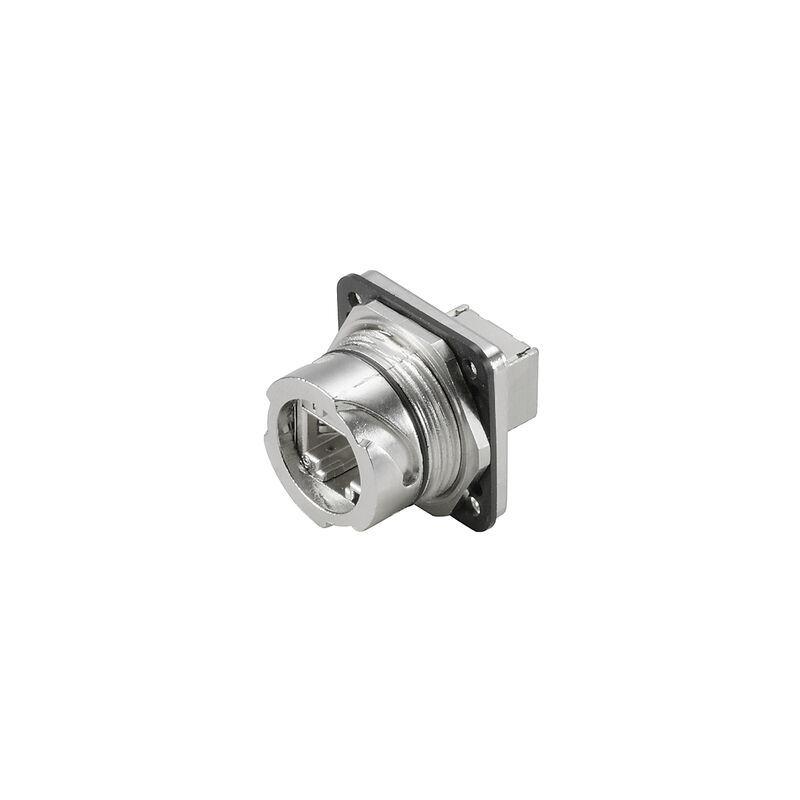

类型 | IE-BS-V01M-RJ45-C |
GTIN (EAN) | 4032248645565 |
数量 | 10 PC |
高度 | 32 mm |
高度 (英寸) | 1.26 inch |
宽度 | 32 mm |
宽度 (英寸) | 1.26 inch |
净重 | 72.8 g |
工作温度 | -40 °C...70 °C |
RoHS 合规状态 | 合规,有例外 |
RoHS 豁免(如适用/已知) | 6c |
REACH SVHC |
Lead 7439-92-1
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1 |
SCIP | c1a8d9e9-fd0c-4258-8c31-7317a7b4ce18 |
端口1 | RJ45 |
端口 2 | RJ45 |
物品描述 | 类别 1 金属,RJ45/RJ45 耦合 |
密封圈材料 | EPDM |
颜色编码 | 其他 |
外壳基本材料 | 铸锌 |
目录册 | Cat.6A / Class EA (ISO/IEC 11801 2010) |
插针镀层 | 镍,镀金 |
屏蔽 | 360度;全封闭外壳 |
防护等级 | IP67 |
插拔次数 | 750 |
介电强度,触点-触点 | ≥ 1000 V AC/DC |
电源联接器耐压强度,触点-触点,最小 | ≥ 1500 V AC/DC |
证书号 (cULus) | E316369 |
连接器标准 |
IEC 61076-3-106 型号1
IEC 60603-7-51 |
认证/证书/一致性声明 |
[GOST Approval](https://mdcop.weidmueller.com/mediadelivery/asset/900_58423)
[ISO/IEC and TIA/EIA DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_58438) [ISO/IEC EN and TIA/EIA Screened Class E Category 6, 3 connector permanent link](https://mdcop.weidmueller.com/mediadelivery/asset/900_67334) [ISO/IEC EN and TIA/EIA Screened Class E Category 6, 4 connector channel](https://mdcop.weidmueller.com/mediadelivery/asset/900_67335) [ISO/IEC EN and TIA/EIA Screened Class EA Category 6A, 2 connector channel](https://mdcop.weidmueller.com/mediadelivery/asset/900_67336) [DUXR.E316369](https://mdcop.weidmueller.com/mediadelivery/asset/900_58418) |
工程数据 | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_151483) |
CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1963470000) |
产品更改通知 |
[Technical change to Bulkhead Variant 1 (Metal) - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_93599)
[Technical change to Bulkhead Variant 1 (Metal) - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_95594) [20190724 Technische Änderung zu Flansch Variante 1 (Metall)](https://mdcop.weidmueller.com/mediadelivery/asset/900_166915) [20190724 Technische Änderung zu Flansch Variante 1 (Metall)](https://mdcop.weidmueller.com/mediadelivery/asset/900_166916) [20190724 Technical change to Bulkhead Variant 1 (Metal)](https://mdcop.weidmueller.com/mediadelivery/asset/900_166918) |
用户文档 |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) [Designation key / Type key](https://mdcop.weidmueller.com/mediadelivery/asset/900_90842) [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_96751) |
产品目录 | [Catalogues in PDF-format](LINK/Catalog.html) |
样本 |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
ETIM 6.0 | EC001121 |
ETIM 7.0 | EC001121 |
ETIM 8.0 | EC001121 |
ETIM 9.0 | EC001121 |
ECLASS 9.0 | 27-44-03-90 |
ECLASS 9.1 | 27-44-03-90 |
ECLASS 10.0 | 27-44-03-90 |
ECLASS 11.0 | 27-44-03-90 |
ECLASS 12.0 | 27-44-03-90 |
ECLASS 13.0 | 27-44-03-90 |
ECLASS 14.0 | 27-44-03-90 |
认证 | ![CULUS](/picture/CULUS.gif) |
ROHS | 一致 |
UL File Number Search | [UL 网站](LINK/UL_search.html) |
证书号 (cULus) | E316369 |
