特性

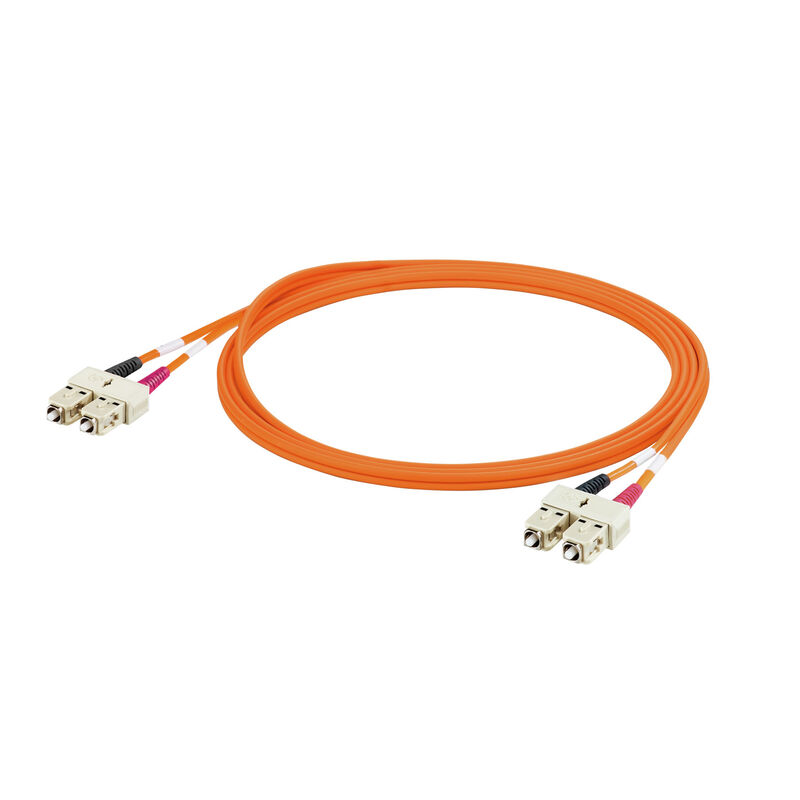

| 版本 | 预制电缆，跳线, SC duplex IP 20, SC duplex IP 20, 50 µm, PVC, 3 m |
| 订货号 | 8813320000 |
| 类型 | IE-FM5Z2VO0003MSD0SD0X |
| GTIN (EAN) | 4032248513178 |
| 数量 | 1 PC |
| 长度 | 3 m |
| 长度 (英寸) | 118.11 inch |
| 净重 | 64 g |
| 存储温度 | -25 °C...75 °C |
| 工作温度 | -5 °C...75 |
| 安装温度 | -5 °C...50 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
| RoHS 合规状态 | 合规，有例外 |
| RoHS 豁免（如适用/已知） | 6c |
| 连接器标准 | IEC 61754-4 |
| 连接器标准 | IEC 61754-4 |
| 光纤类型 |
GOF
多重模式 OM2 |
| 带宽 |
≥600 MHz*km @ 850 nm
≥1200 MHz*km @ 1300 nm |
| 衰减 |
≤ 2.7 dB/km @ 850 nm
≤ 0.7 dB/km @ 1300 nm |
| 一次涂覆 | 245 µm |
| 护套材料 | PVC |
| 护套直径 | 3*6 mm |
| 护套颜色 | 橙色 |
| 标准名称 | I-V(ZN)Y |
| 电缆结构 | 光纤软线 |
| 芯线直径 | 50 µm |
| 最小弯曲半径，单次 | 30mm |
| 最小弯曲半径，多次 | 60mm |
| 插头，右 | SC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded |
| 插头，左 | SC-Duplex, IP20, 针式端头, 笔直, 插头, 塑料, 不带屏蔽 |
| 插头，左 | SC-Duplex, IP20, 针式端头, 笔直, 插头, 塑料, 不带屏蔽 |
| 插头，右 | SC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded |
| 用户文档 |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| 产品目录 | [Catalogues in PDF-format](LINK/Catalog.html) |
| 样本 |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002607 |
| ETIM 7.0 | EC002607 |
| ETIM 8.0 | EC002607 |
| ETIM 9.0 | EC002607 |
| ECLASS 9.0 | 27-06-10-03 |
| ECLASS 9.1 | 27-06-10-03 |
| ECLASS 10.0 | 27-06-10-03 |
| ECLASS 11.0 | 27-06-10-03 |
| ECLASS 12.0 | 27-06-10-03 |
| ECLASS 13.0 | 27-06-10-03 |
| ECLASS 14.0 | 27-06-10-03 |
| ROHS | 一致 |
