特性

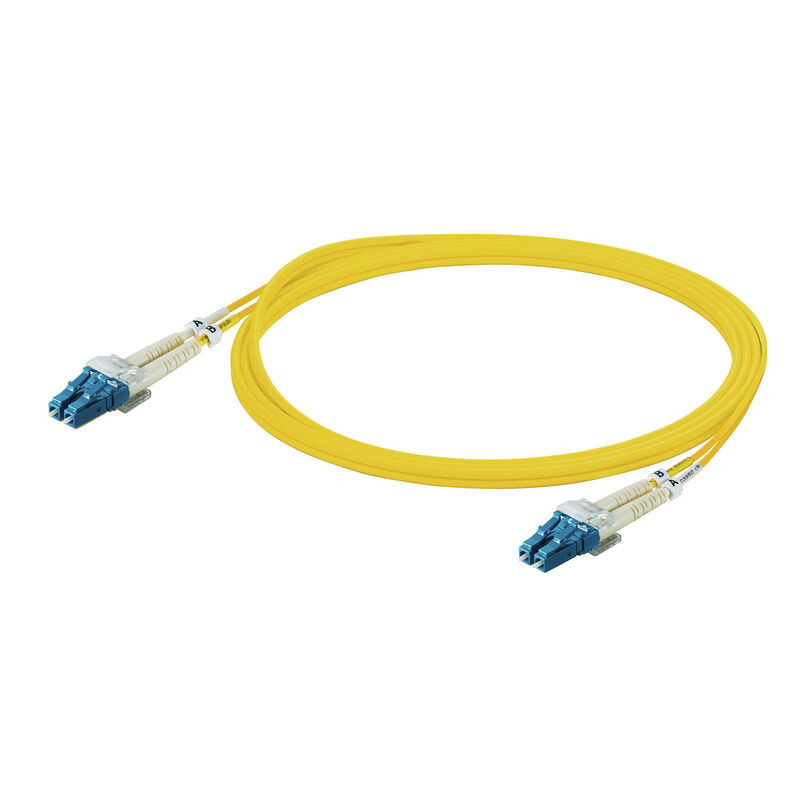

| 版本 | 转接电缆，双卡槽固定, LC-Duplex IP 20, LC-Duplex IP 20, 9 µm, LSZH, 5 m |
| 订货号 | 1433950050 |
| 类型 | IE-FSMZ2LY0005MLD0LD0-X |
| GTIN (EAN) | 4050118242379 |
| 数量 | 1 PC |
| 长度 | 5 m |
| 长度 (英寸) | 196.85 inch |
| 净重 | 54 g |
| 工作温度 | -20 °C...70 |
| REACH SVHC | / |
| RoHS 合规状态 | 合规，无例外 |
| 对双绞线的说明 |
IEC 61156-6
DIN EN 50288-4-2 |
| 对检验通信对称电缆的说明 | IEC 61935-3 |
| 连接器标准 | IEC 61754-20 |
| 连接器标准 | IEC 61754-20 |
| 光纤类型 |
单模
OS 2 |
| 衰减 | ≤0.4 dB/km @ 1310 nm |
| 一次涂覆 | 245 µm |
| 护套材料 | LSZH |
| 护套直径 | 2.0 * 4.1 mm |
| 护套颜色 | 黄色 |
| 标准名称 | I-V(ZN)H |
| 电缆结构 | 光纤软线 |
| 芯线直径 | 9 µm |
| 卤素 | 不 |
| 最小弯曲半径，单次 | 20 mm |
| 最小弯曲半径，多次 | 40 mm |
| 插头，右 | LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded |
| 插头，左 | LC-Duplex, IP20, 针式端头, 笔直, 插头, 塑料, 不带屏蔽 |
| 插头，左 | LC-Duplex, IP20, 针式端头, 笔直, 插头, 塑料, 不带屏蔽 |
| 插头，右 | LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded |
| 用户文档 |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| 产品目录 | [Catalogues in PDF-format](LINK/Catalog.html) |
| 样本 |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002607 |
| ETIM 7.0 | EC002607 |
| ETIM 8.0 | EC002607 |
| ETIM 9.0 | EC002607 |
| ECLASS 9.0 | 27-06-10-03 |
| ECLASS 9.1 | 27-06-10-03 |
| ECLASS 10.0 | 27-06-10-03 |
| ECLASS 11.0 | 27-06-10-03 |
| ECLASS 12.0 | 27-06-10-03 |
| ECLASS 13.0 | 27-06-10-03 |
| ECLASS 14.0 | 27-06-10-03 |
| ROHS | 一致 |
