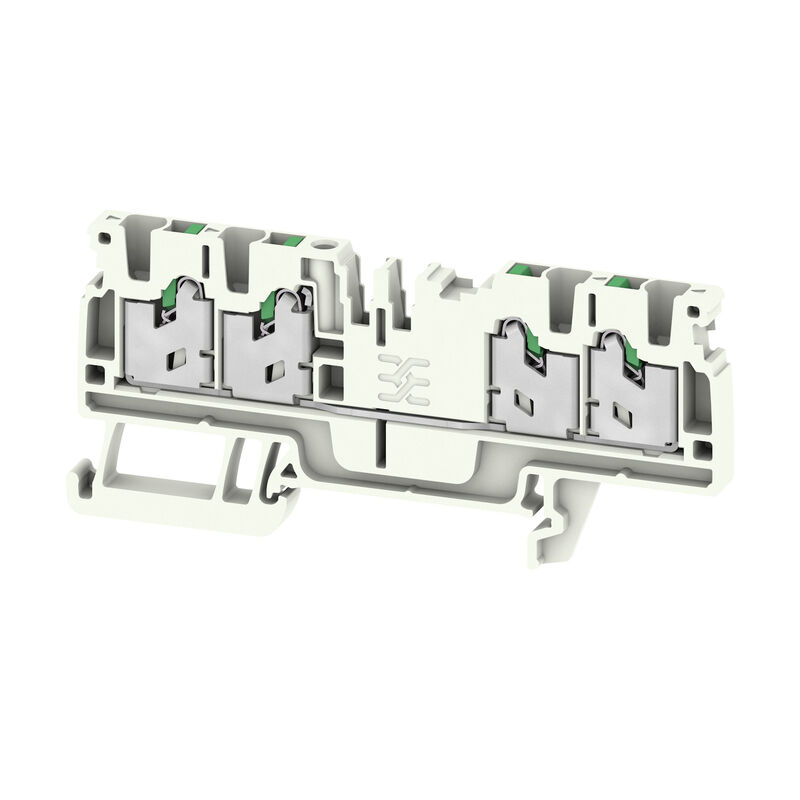

Morsettiera passante, SNAP IN, grigio, 2.5 mm², 24 A, 800 V, Numero di collegamenti: 4

Tuotteen tunnus 3112250000
Avaa konfiguraattorissa
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 87 Samankaltaiset tuotteet 1057
Omologazioni Dati generali per l’ordinazione Dimensioni e pesi Temperature Conformità ambientale del prodotto Dati dei materiali Dati caratteristici del sistema weitere technische Daten Conductors for clamping (additional connection) Klemmbare Leiter (Bemessungsanschluss) Bemessungsdaten nach CSA General Dati dimensionamento Bemessungsdaten nach UL 분류

Omologazioni

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/680ba583-8621-4d57-b79a-2859678ecdf9/DAP_Master_ICON,w_80,q_80)
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (cURus)
E60693
Zertifikat-Nr. (cURusEX)
E184763

Dati generali per l’ordinazione

Version
Morsettiera passante, SNAP IN, grigio, 2.5 mm², 24 A, 800 V, Numero di collegamenti: 4
Order No.
3112250000
Type
S4C 2.5 GY
GTIN (EAN)
4099987196369
VPE
100 items

Dimensioni e pesi

Depth
38 mm
Profondità (pollici)
1,496 inch
Height
84 mm
높이 (인치)
3,307 inch
Width
5,1 mm
폭 (인치)
0,201 inch
Nettogewicht
13,696 g

Temperature

Storage temperature
-25 °C...55 °C
Ambient temperature
-60 °C…85 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme senza esenzione
REACH SVHC
0.1 wt% 이상의 SVHC 없음

Dati dei materiali

Werkstoff
Wemid
Farbe
grey
Colour of operational elements
green
UL 94 flammability rating
V-0

Dati caratteristici del sistema

Abschlussplatte erforderlich
Sì
Anzahl der Potentiale
1
레벨 수
1
레벨당 클램프 지점 개수
4
Anzahl der Potentiale pro Etage
1
Etagen intern gebrückt
No
Tragschiene
TS 35
N-Funktion
Nie
PE-Funktion
Nie
PEN-Funktion
Nie

weitere technische Daten

Befestigungsart
gerastet
explosionsgeprüfte Ausführung
No
Montageart
Snap-on
Open sides
right
Snap-on
Yes

Conductors for clamping (additional connection)

Connection type, additional connection
SNAP IN

Klemmbare Leiter (Bemessungsanschluss)

Blade size
0,6 x 3,5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0,34 mm²
Connection cross-section, finely stranded, min.
0,34 mm²
Connection cross-section, stranded, max.
2,5 mm²
Connection cross-section, stranded, min.
0,34 mm²
Connection direction
top
Gauge to IEC 60947-1
A2
Number of connections
4
Stripping length
10 mm
Tube length for twin wire-end ferrule acc. to cross-section
  • Sección, mín.:
    0,5 mm²
  • Sección, máx.:
    0,5 mm²
  • Longitud del tubo, mín.:
    8 mm
  • Longueur de tube, max.:
    12 mm
  • Section, min.:
    0,75 mm²
  • Section, max.:
    0,75 mm²
  • Longueur de tube, min.:
    18 mm
  • Longueur de tube, max.:
    18 mm
Tube length for wire-end ferrule with plastic collar acc. to cross-section
  • Section, min.:
    0,25 mm²
  • Section, max.:
    0,34 mm²
  • Longueur de tube, min.:
    8 mm
  • Longueur de tube, max.:
    8 mm
  • Section, min.:
    0,5 mm²
  • Section, max.:
    1 mm²
  • Longueur de tube, min.:
    8 mm
  • Longueur de tube, max.:
    12 mm
  • Section, min.:
    1,5 mm²
  • Section, max.:
    2,5 mm²
  • Longueur de tube, min.:
    10 mm
  • Longueur de tube, max.:
    18 mm
Tube length for wire-end ferrule without plastic collar acc. to cross-section
  • Section, min.:
    0,5 mm²
  • Section, max.:
    1 mm²
  • Longueur de tube, min.:
    10 mm
  • Longueur de tube, max.:
    10 mm
  • Section, min.:
    1,5 mm²
  • Section, max.:
    2,5 mm²
  • Longueur de tube, min.:
    10 mm
  • Longueur de tube, max.:
    18 mm
Twin wire-end ferrules, max.
0,75 mm²
Twin wire-end ferrules, min.
0,5 mm²
Type of connection
SNAP IN
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 22
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,34 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,34 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,34 mm²
Wire connection cross-section, solid core, max.
2,5 mm²
Wire connection cross-section, solid core, min.
0,34 mm²

Bemessungsdaten nach CSA

Certificate No. (CSA)
200039-8116541
Current size C (CSA)
15 A
Current size D (CSA)
5 A
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
14 AWG
Wire cross section min. (CSA)
20 AWG

General

Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 22

Dati dimensionamento

Bemessungsquerschnitt
2,5 mm²
Bemessungsspannung
800 V
Bemessungsspannung DC
800 V
Nominal current
24 A
Strom bei max. Leiter
24 A
Normen
IEC 60947-7-1
Durchgangswiderstand gemäß IEC 60947-7-x
1,33 mΩ
Bemessungsstoßspannung
8 kV
Verlustleistung gemäß IEC 60947-7-x
0,77 mW
Pollution severity
3
Surge voltage category
II

Bemessungsdaten nach UL

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
22 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
22 AWG
Current size B (cURus)
20 A
Current size C (cURus)
20 A
Current size D (cURus)
5 A
Voltage size B (cURus)
600 V
Voltage size C (cURus)
600 V
Voltage size D (cURus)
600 V

분류

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
