SAIL-M12GM12G-3-20V
SAIL-M12GM12G-3-20V
Detailed drawing
Male, straight
SAIL-M12GM12G-3-20V
Detailed drawing
Straight socket
SAIL-M12GM12G-3-20V
Pole scheme
Male
SAIL-M12GM12G-3-20V
Pole scheme
Socket
SAIL-M12GM12G-3-20V
Wiring diagram
Schaltbild

SAIL-M12GM12G-3-20V

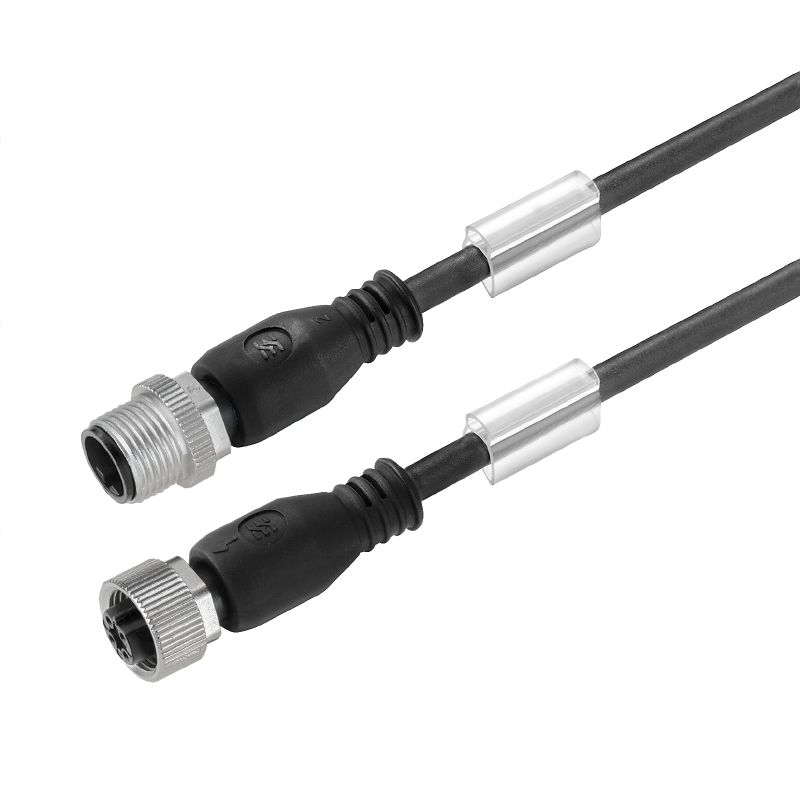

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 20 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes

Produkt ID 1925302000
Download datablad Produktdownloads Engineering-support
Tilbehør 7 Anvendte produkter 9
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Versione
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 20 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Nr zam.
1925302000
유형
SAIL-M12GM12G-3-20V
GTIN (EAN)
4032248882717
Qty.
1 Styk

Dimensions and weights

Net weight
699 g

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant with exemption
Wyłączenie RoHS (w przypadkach, w których ma to zastosowanie / jest znane)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Cable length
20 m
Campo delle temperature, posa mobile
-5...80 °C
Configurable cable length
Yes
Código de color
brown
blue
black
Diametro esterno
4.9 mm ± 0.2 mm
Halogen
Yes
Insulation
PVC
Irradiation crosslinked
No
Materiál pláště
PVC
Numero di poli
3
Outer cladding in accordance with UL AWM style
2464 (80 °C / 300 V)
Průřez jádra
0,34 mm²
Resistencia a la torsión
0 °/m
Sheathing colour
black
Stíněný
No
Temperature range, stationary
-30...80 °C
Tropicalisé (résistant aux perles de soudure)
No
Vhodné pro nosiče kabelů
No
Welding spark resistance
No

General technical data

Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
kodowanie
A-coded
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
IP68
when fully mounted
IP65
IP66
Shock and vibration proof according to
Section B
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Utförande
pin, straight - socket, straight
Ścieżka połączenia
M12 / M12
Поверхность контакта
Gold-plated

Electrical properties

Resistenza d'isolamento
108 Ω
Tensione nominale
250 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101
Shock and vibration proof according to
Section B

Plug, left

Plug left
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Plug right
M12, A-coded, IP69, female contact, straight, Plastic, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
