SAIL-ZW-3-3.0U
SAIL-ZW-3-3.0U
Dimensioned drawing
Twin male connector, straight
SAIL-ZW-3-3.0U
Pole scheme
M12 = A-coded
SAIL-ZW-3-3.0U
Wiring diagram
SAIL-ZW-3-3.0U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-ZW-3-3.0U

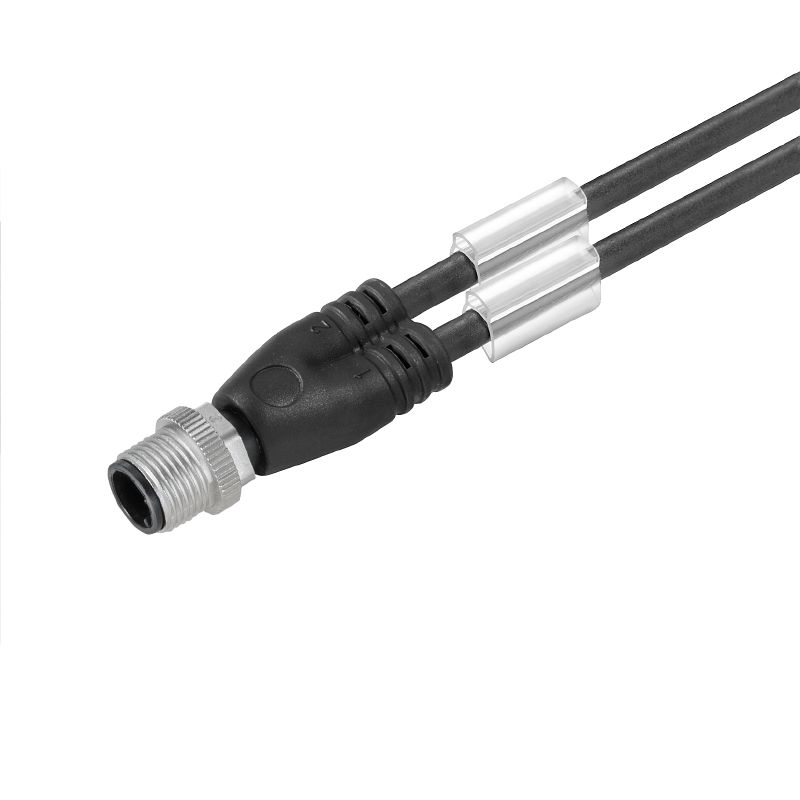

Sensor/actuator line, One end without connector, M12, Number of poles : 3, 3 m, Twin cabling, pin, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Product ID 1964310300
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 6 Verwante producten 6
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Utförande
Sensor/actuator line, One end without connector, M12, Number of poles : 3, 3 m, Twin cabling, pin, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1964310300
Type
SAIL-ZW-3-3.0U
GTIN (EAN)
4032248647729
Qty.
1 items

Dimensions and weights

Net weight
139,92 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

black (similar to RAL 9005)
Accelerartion
5 m/s²
Antal poler
3
Böjcykler
12 Mio
Böjradie min, fast monterad
5 x cable diameter
Böjradie min, rörlig
10 x cable diameter
Beständighet mot svetsgnistor
No
Böjningscykler vid vridning
> 5 Mio.
Färkodning
brown
blue
black
Flamhärdighet
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Halogener
No
hastighet
3,33 m/s
Hydrolys- och mikrobresistent
Yes
Isolering
PP
Kabellängd
3 m
Kabelns längd är konfigurerbar
No
Kärna i enlighet med UL AWM-stil
10493 (80 °C / 300 V)
Ledararea
0,34 mm²
Mantel i enlighet med UL AWM-stil
20549 (80 °C / 300 V)
Mantelmaterial
PUR
Oljebeständighet
Yes
Skärmad
No
Släpkedjetålighet
Yes
Säker mot svetsstänk
No
Temperaturområde, fast lagd
-50...80 °C
Temperaturområde, rörligt
-25...60 °C
Vridningslängd
1 m
Vridtålighet
180 °/m

General technical data

AF size
12 mm
Coding
A-coded
Connection thread
M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
IP68
when screwed in
IP65
IP66
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
Twin cabling, pin, straight

Electrical properties

Isolationsmotstånd
108 Ω
Nominell spänning
250 V

General standards

Certifikat nr. (CSA)
200039-2372994
Certifikat-Nr. (cULus)
E307231
Kontaktdon Norm
IEC 61076-2-101

Standards

Kontaktdon Norm
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
