Egenskaber

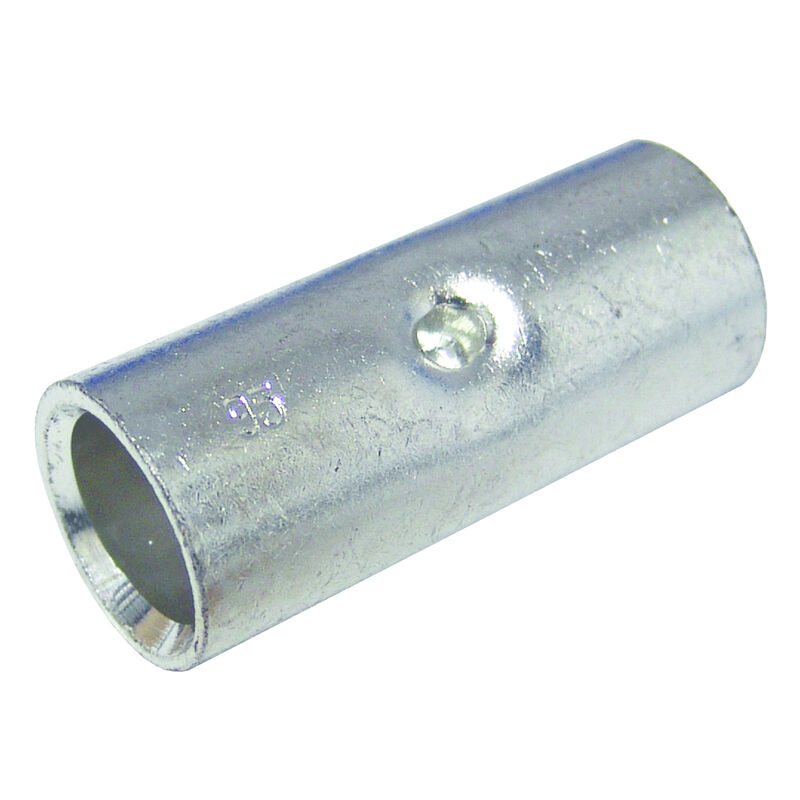

| Version | cable lug, terminal end,16 mm²,16 mm² |
| Order No. | 1493040000 |
| Type | VSTN/16 |
| GTIN (EAN) | 4050118302981 |
| Qty. | 100 Styk |
| Net weight | 6,03 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Conductor cross-section | 16 mm² |
| Conductor cross-section, max. | 16 mm² |

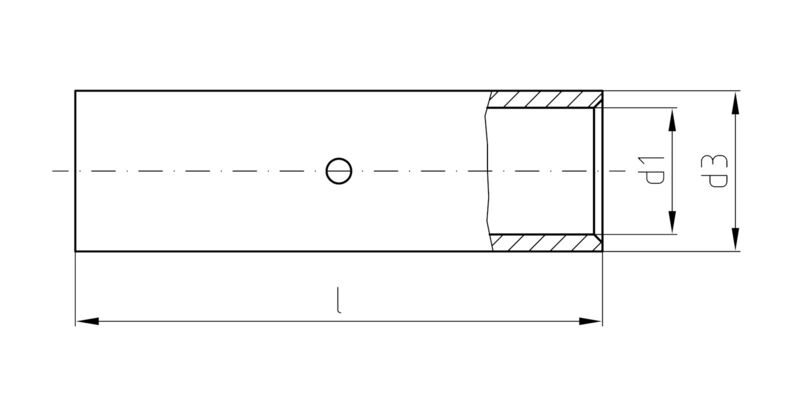

| Connection length (I) | 26 mm |
| Inside diameter of shaft (d1) | 5,9 mm |
| Insulation | not available |
| Outside diameter of shaft (d3) | 8,3 mm |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001059 |
| ETIM 7.0 | EC001059 |
| ETIM 8.0 | EC001059 |
| ETIM 9.0 | EC001059 |
| ECLASS 9.0 | 27-40-02-12 |
| ECLASS 9.1 | 27-40-02-12 |
| ECLASS 10.0 | 27-40-02-12 |
| ECLASS 11.0 | 27-40-02-12 |
| ECLASS 12.0 | 27-40-02-12 |
| ECLASS 13.0 | 27-40-02-12 |
| ECLASS 14.0 | 27-40-02-12 |
| ROHS | Conform |
