WS 8/5 MM WS

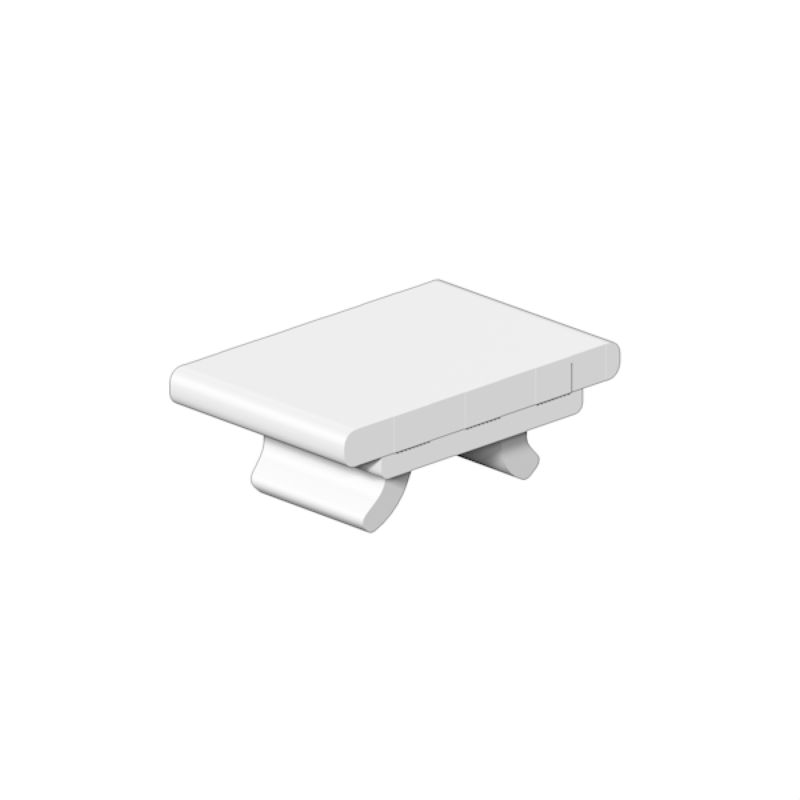

WS, Terminal marker, 8 x 5 mm, Weidmueller, white

Produkt ID 2007150000

Egenskaber

General ordering data

Version	WS, Terminal marker, 8 x 5 mm, Weidmueller, white
Order No.	2007150000
Type	WS 8/5 MM WS
GTIN (EAN)	4050118392029
Qty.	800 Styk

Dimensions and weights

Height	8 mm
Height (inches)	0,315 inch
Width	5 mm
Width (inches)	0,197 inch
Net weight	0,09 g

Temperatures

Operating temperature range

-50...90 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

General data

Application/manufacturer	Weidmueller
Colour	white
compatible printer	[THM MULTIMARK](~/p/2599430000) [THM MULTIMARK PLUS](~/p/2599440000)
Halogen	No
Material	PC-ABS TPU
Number per roll	800
Operating temperature range	-50...90 °C
Operating temperature range, max.	90 °C
Operating temperature range, min.	-50 °C
Printed characters	neutral
UL 94 flammability rating	V-2
Version	halogen-free
Width	5 mm

Downloads

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54586)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2007150000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2007150000)
Product Change Notification	[MultiMark_PCN_de_Extern](https://mdcop.weidmueller.com/mediadelivery/asset/900_49685) [MultiMark_PCN_en_external](https://mdcop.weidmueller.com/mediadelivery/asset/900_49686)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000761
ETIM 7.0	EC000761
ETIM 8.0	EC000761
ETIM 9.0	EC000761
ECLASS 9.0	27-14-11-37
ECLASS 9.1	27-14-11-37
ECLASS 10.0	27-14-11-37
ECLASS 11.0	27-28-11-01
ECLASS 12.0	27-28-11-01
ECLASS 13.0	27-28-11-01
ECLASS 14.0	27-28-11-01

Approvals

ROHS

Conform
