Properties

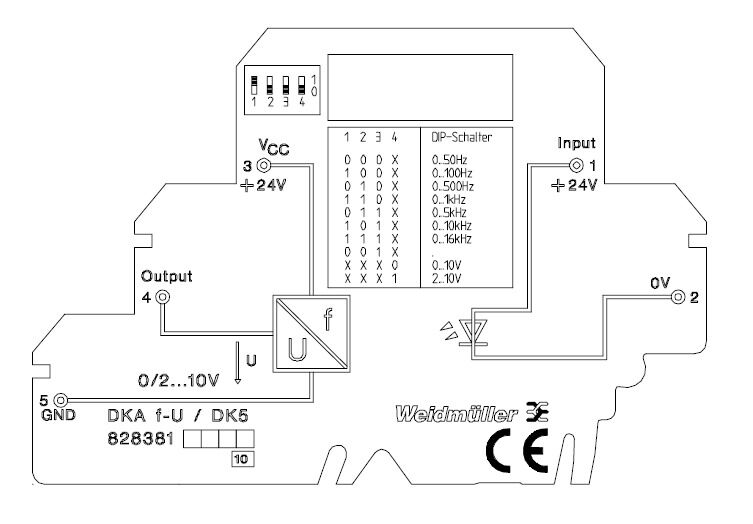

| Version | Frequency signal converter, Input : Frequency, 0...50/ 100/ 500 Hz; 0...1/ 5/ 10/ 16 kHz, Output : 0-10 V |
| Order No. | 8283810001 |
| Type | DK F-U DK5 0-16KHZ 24V |
| GTIN (EAN) | 4008190371074 |
| Qty. | 10 items |
| Height | 64 mm |
| Height (inches) | 2.52 inch |
| Width | 12 mm |
| Width (inches) | 0.472 inch |
| Length | 76.8 mm |
| Length (inches) | 3.024 inch |
| Net weight | 22.9 g |
| Storage temperature | -25 °C...60 °C |
| Operating temperature | 0 °C...60 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c, 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 35d83707-6a3b-45b5-b9f8-6ba8184c863e |
| Input frequency | 0...50/ 100/ 500 Hz; 0...1/ 5/ 10/ 16 kHz |
| Input resistance, voltage | 10 kΩ |
| Number of inputs | 1 |
| Number of outputs | 1 |
| Output voltage, note | 0(2)...10 V |
| Accuracy | 0.5 % (8-bit resolution) |
| Current consumption | 32 mA + I-Last |
| Galvanic isolation | 2-way isolator |
| Protection degree | IP20 |
| Rail |
TS 35
TS 32 |
| Voltage supply | 24 V DC ± 10 % |
| Galvanic isolation | 2-way isolator |
| Insulation voltage | 2.5 kV |
| Insulation voltage input or output/rail | 4 kVeff |
| Type of connection | Screw connection |
| Clamping range, rated connection | 4 mm² |
| Clamping range, min. | 0.5 mm² |
| Clamping range, max. | 4 mm² |
| Approval/Certificate/Document of Conformity | [Application notes -- Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_47747) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002918 |
| ETIM 7.0 | EC002918 |
| ETIM 8.0 | EC002918 |
| ETIM 9.0 | EC002918 |
| ECLASS 9.0 | 27-21-01-28 |
| ECLASS 9.1 | 27-21-01-28 |
| ECLASS 10.0 | 27-21-01-28 |
| ECLASS 11.0 | 27-21-01-28 |
| ECLASS 12.0 | 27-21-01-28 |
| ECLASS 13.0 | 27-21-01-28 |
| ECLASS 14.0 | 27-21-01-28 |
| Approvals |  |
| ROHS | Conform |
Accessories
-
Item No.:1633290000Packaging unit:5 PC
Cross-connector (terminal), when screwed in, red, 17.5 A, Number of poles: 50, Pitch in mm (P): 6.20, Insulated: Yes, Width: 4.2 mm
-
Item No.:1633280000Packaging unit:5 PC
Cross-connector (terminal), when screwed in, blue, 17.5 A, Number of poles: 50, Pitch in mm (P): 6.20, Insulated: Yes, Width: 4.2 mm
-
Item No.:1635120000Packaging unit:5 PC
Cross-connector (terminal), when screwed in, black, 17.5 A, Number of poles: 50, Pitch in mm (P): 6.20, Insulated: Yes, Width: 4.2 mm
-
Item No.:0383560000Packaging unit:50 PC
End bracket, beige, TS 35, V-2, Wemid, Width: 8.5 mm, 100 °C
