Properties
| Version | Mounting tool |
| Order No. | 1479090000 |

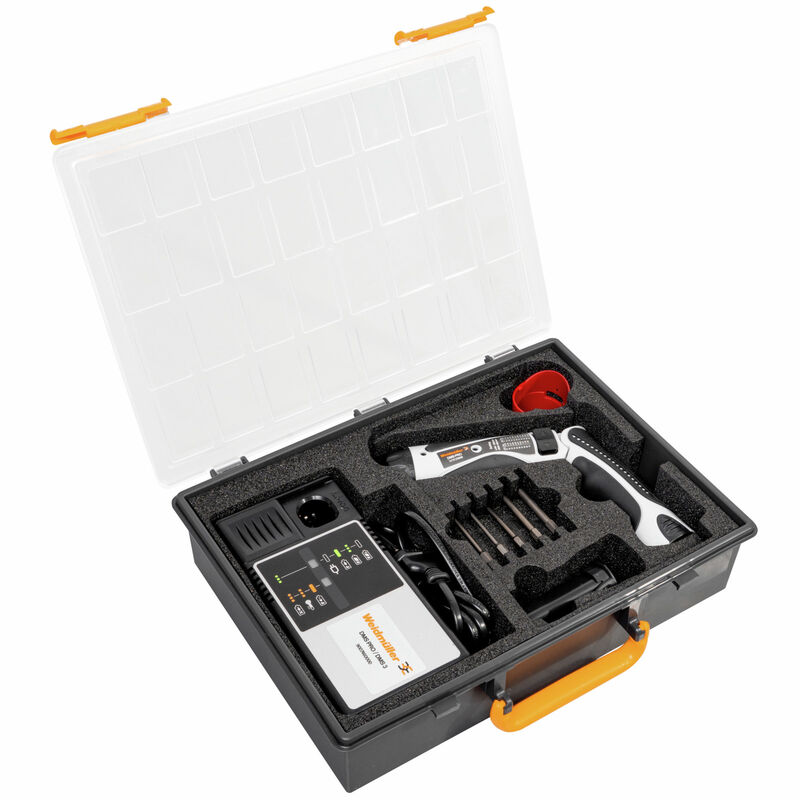

| Type | DMS PRO SET |
| GTIN (EAN) | 4050118286786 |
| Qty. | 1 items |
| Depth | 261 mm |
| Depth (inches) | 10.276 inch |
| Width | 338 mm |
| Width (inches) | 13.307 inch |
| Net weight | 2,278 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c, 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 8a39b146-a7e9-4fe1-a2bc-f82c0bb3aeeb |
| Charging time | 30 min |
| Description of article | Mains-operated torque screwdriver with 1/4" drive |
| Battery voltage | 3.6 V |
| Bit holder | 1/4" DIN 3126 Form E6.3 |
| Charger input | AC 220-240V~50-60Hz 30W |
| Charger output | DC 2.8...6V; 4.8A / 30W max. |
| Charging time | 30 min |
| Idling speed | 200 u. 600 min-1 |
| Rated voltage | 3.6 V |
| Rechargeable batteries | Li-Ion battery |
| Torque setting, max. | 3 Nm |
| Torque setting, min. | 0.36 Nm |
| Torque setting, max. | 3 Nm |
| Torque setting, min. | 0.36 Nm |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001395 |
| ETIM 7.0 | EC001395 |
| ETIM 8.0 | EC001395 |
| ETIM 9.0 | EC001395 |
| ECLASS 9.0 | 21-05-21-90 |
| ECLASS 9.1 | 21-04-04-17 |
| ECLASS 10.0 | 21-05-21-90 |
| ECLASS 11.0 | 21-05-08-90 |
| ECLASS 12.0 | 21-05-08-90 |
| ECLASS 13.0 | 21-05-08-90 |
| ECLASS 14.0 | 21-05-08-90 |
| Approvals |  |
| ROHS | Conform |
