Properties
| Version | PE terminal, Screw connection, 35 mm², 800 V, Number of connections: 2, Number of levels: 1, yellow, green |
| Order No. | 0661460000 |

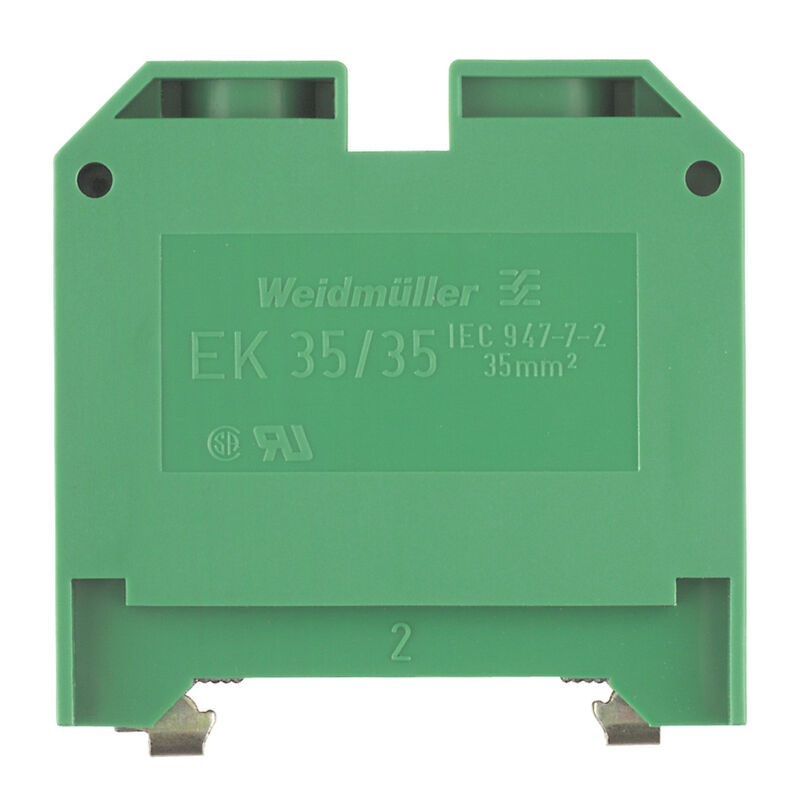

| Type | EK 35/35 |
| GTIN (EAN) | 4008190147600 |
| Qty. | 20 items |
| Delivery status | This article will no longer be available in the future. |
| Available until | 31.12.2022 |
| Alternative product | [1010500000](~/p/1010500000) |
| Depth | 60 mm |
| Depth (inches) | 2.362 inch |
| Height | 58 mm |
| Height (inches) | 2.283 inch |
| Width | 16 mm |
| Width (inches) | 0.63 inch |
| Net weight | 89.75 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | e1c310ef-6b67-4efa-80a6-d307472f4de9 |
| Material | PA 66 |
| Colour |
yellow
green |
| UL 94 flammability rating | V-2 |
| Version |
Screw connection
With PE connection in closed state |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | Yes |
| Rail | TS 35 |
| N-function | No |
| PE function | Yes |
| PEN function | Yes |
| Explosion-tested version | No |
| Number of similar terminals | 1 |
| Open sides | closed |
| Type of mounting | when screwed in |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 35 mm² |
| Blade size | 6.5 x 1.2 mm |
| Clamping range, max. | 50 mm² |
| Clamping range, min. | 6 mm² |
| Clamping screw | M 6 |
| Connection cross-section, stranded, max. | 50 mm² |
| Connection cross-section, stranded, min. | 16 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | B9 |
| Number of connections | 2 |
| Stripping length | 20 mm |
| Tightening torque, max. | 4 Nm |
| Tightening torque, min. | 4 Nm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 2 |
| Wire connection cross section AWG, min. | AWG 8 |
| Wire connection cross section, finely stranded, max. | 35 mm² |
| Wire connection cross section, finely stranded, min. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 35 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 10 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 6 mm² |
| Certificate No. (CSA) | 12400-127 |
| Current size C (CSA) | 145 A |
| Voltage size C (CSA) | 600 V |
| Wire cross section max. (CSA) | 2 AWG |
| Wire cross section min. (CSA) | 6 AWG |
| TS 15 offset | 22 mm |
| Rail | TS 35 |
| Standards | IEC 60947-7-2 |
| Wire connection cross section AWG, max. | AWG 2 |
| Wire connection cross section AWG, min. | AWG 8 |
| Rated short-time current | 4200 A (35 mm²) |
| Centre screw on PE terminals | M 4 |
| Tightening torque range for fixing screw | 1.2...2.4 Nm |
| PEN function | Yes |
| Rated cross-section | 35 mm² |
| Rated voltage to adjoining terminal | 800 V |
| Standards | IEC 60947-7-2 |
| Volume resistance according to IEC 60947-7-x | 0.26 mΩ |
| Rated impulse withstand voltage to adjacent terminal | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 4 W |
| Pollution severity | 3 |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 2 AWG |
| Conductor size Factory wiring min. (UR) | 6 AWG |
| Conductor size Field wiring max. (UR) | 2 AWG |
| Conductor size Field wiring min. (UR) | 6 AWG |
| Approval/Certificate/Document of Conformity |
[CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89280)
[CB Test Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89282) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36695) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59252) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0661460000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0661460000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0661460000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000901 |
| ETIM 7.0 | EC000901 |
| ETIM 8.0 | EC000901 |
| ETIM 9.0 | EC000901 |
| ECLASS 9.0 | 27-14-11-41 |
| ECLASS 9.1 | 27-14-11-41 |
| ECLASS 10.0 | 27-14-11-41 |
| ECLASS 11.0 | 27-14-11-41 |
| ECLASS 12.0 | 27-14-11-41 |
| ECLASS 13.0 | 27-25-01-03 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
