Properties
| Version | , Male, 250 V, 16 A, Number of poles: 10, PUSH IN, Size: 1 |
| Order No. | 3124530000 |

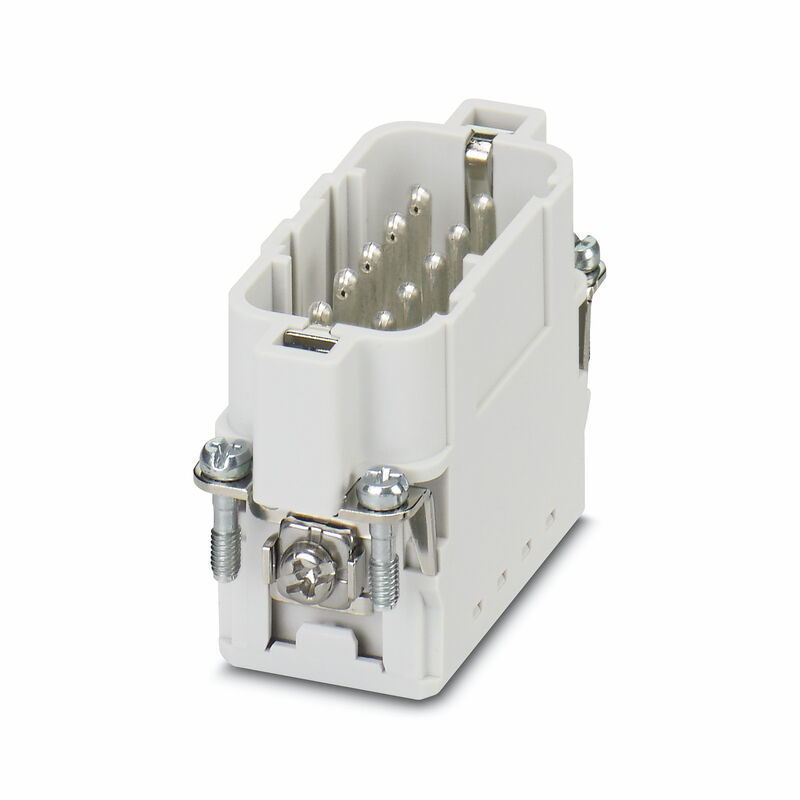

| Type | HDC HA 10 MP |
| GTIN (EAN) | 4099987277525 |
| Qty. | 1 items |

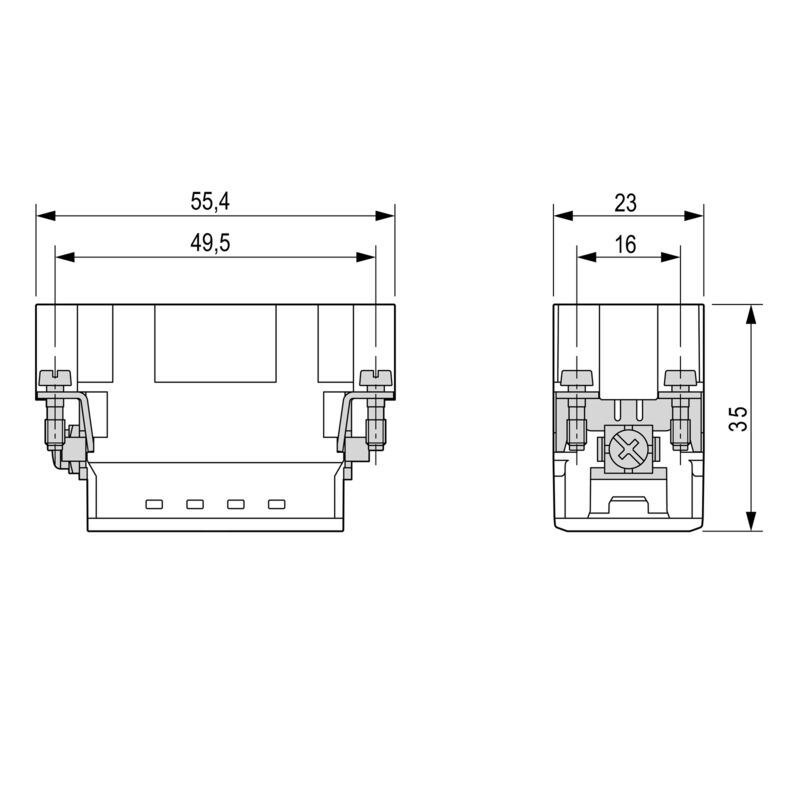

| Depth | 14.6 mm |
| Depth (inches) | 0.575 inch |
| Height | 34.1 mm |
| Height (inches) | 1.343 inch |
| Width | 23 mm |
| Width (inches) | 0.906 inch |
| Length | 55.5 mm |
| Length (inches) | 2.185 inch |
| Net weight | 0 g |
| Limit temperature | -40 °C ... 125 °C |
| Chemical resistance |
|
| Total length base | 55.5 mm |
| Width | 23 mm |
| BG | 1 |
| Colour | Light Grey |
| Insulating material | PC |
| Material | Polycarbonate |

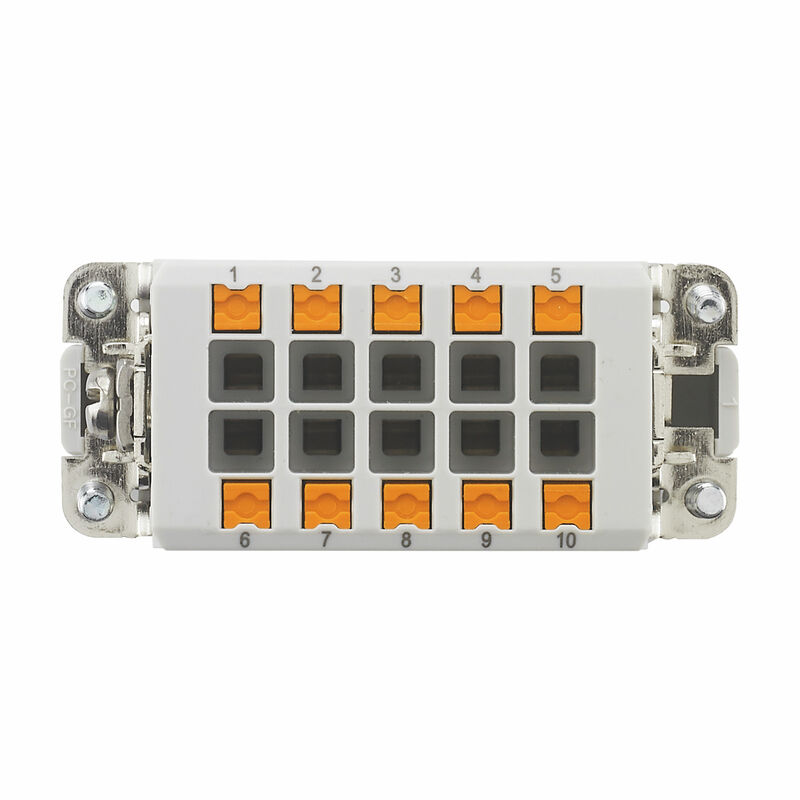

| Number of poles | 10 |
| Plugging cycles | ≥ 500 |
| Pollution severity | 3 |
| Rated current (DIN EN 61984) | 16 A |
| Rated impulse voltage (DIN EN 61984) | 4 kV |
| Rated voltage (DIN EN 61984) | 250 V |
| Series | HA |
| Size | 1 |
| Surge voltage category | III |
| Type | Male |
| Type of connection | PUSH IN |
| UL 94 flammability rating | V-0 |
| Connection type PE | PUSH IN connection |
| Rated voltage (DIN EN 61984), power contact | 250 V |
| Stripping length according to the cable diameter |
|
| Tightening torque, max. according to the conductor cross-section |
|
| Tightening torque, power contact, max. | 1 Nm |
| Tightening torque, power contact, min. | 0.7 Nm |
| BG | 1 |
| Material | Polycarbonate |
| Size | 1 |
| Stripping length, rated connection | 4.2 mm |
| Type of connection | PUSH IN |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section AWG, min. | AWG 26 |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002312 |
| ETIM 7.0 | EC002312 |
| ETIM 8.0 | EC000438 |
| ETIM 9.0 | EC000438 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-18 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
