Properties
| Version | , Male, 230 V, 10 A, Number of poles: 4, PUSH IN, Size: 1 |
| Order No. | 2985430000 |

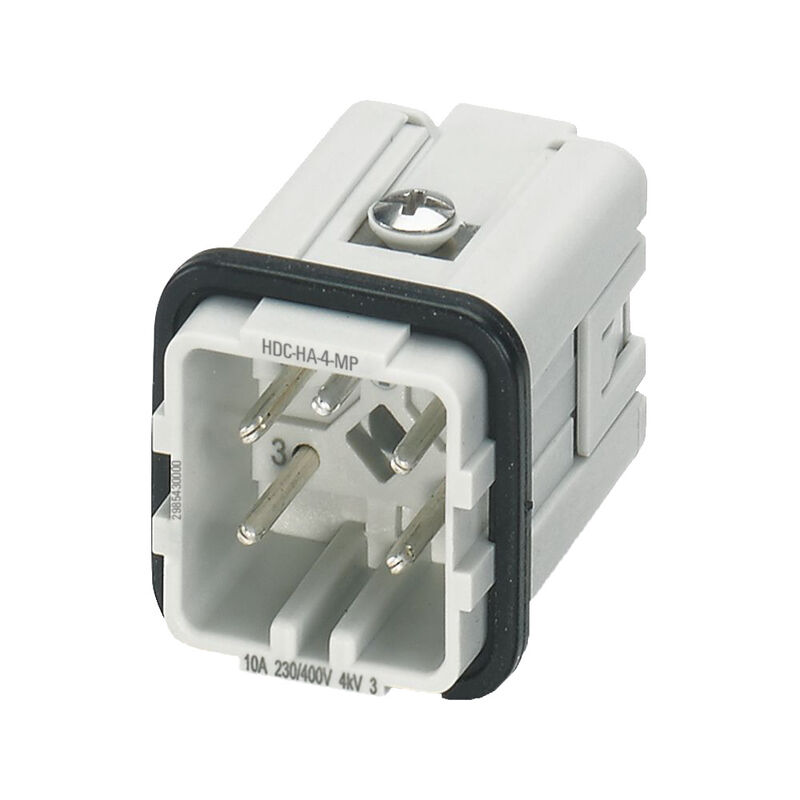

| Type | HDC HA 4 MP |
| GTIN (EAN) | 4099986847682 |
| Qty. | 1 items |

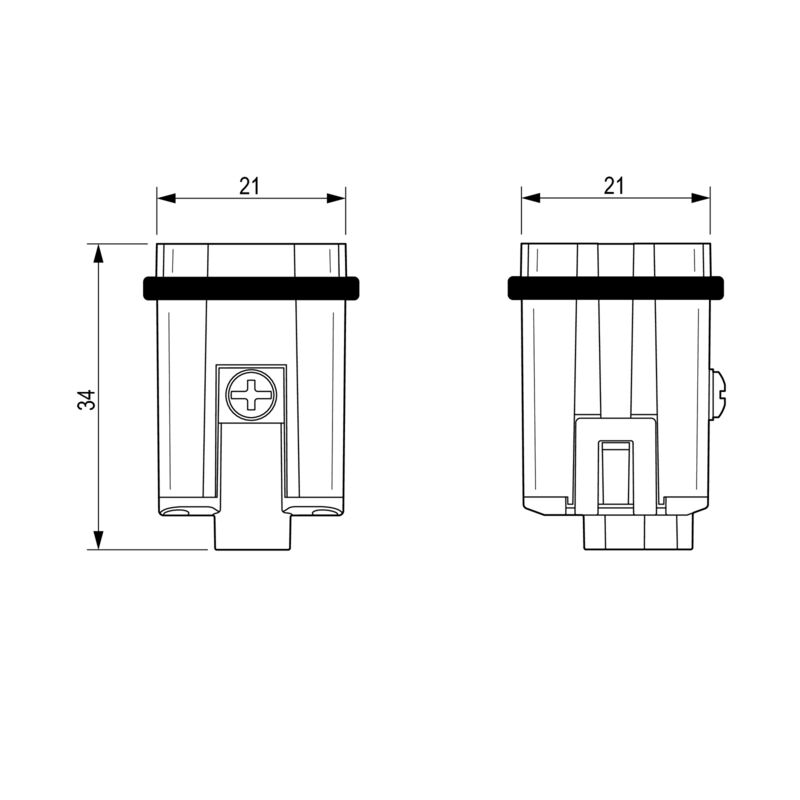

| Depth | 14.6 mm |
| Depth (inches) | 0.575 inch |
| Height | 35.2 mm |
| Height (inches) | 1.386 inch |
| Width | 34.2 mm |
| Width (inches) | 1.346 inch |
| Net weight | 50 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Chemical resistance |
|
| Width | 34.2 mm |
| BG | 1 |
| Colour | Light Grey |
| Insulating material | PC |
| Material | Polycarbonate |
| Number of poles | 4 |
| Plugging cycles | ≥ 500 |
| Pollution severity | 3 |
| Rated current (DIN EN 61984) | 10 A |
| Rated impulse voltage (DIN EN 61984) | 4 kV |
| Rated voltage (DIN EN 61984) | 230 V |
| Series | HA |
| Size | 1 |
| Type | Male |
| Type of connection | PUSH IN |
| UL 94 flammability rating | V-0 |
| Rated voltage (DIN EN 61984), power contact | 230 V |
| BG | 1 |
| Conductor cross-section, max. | 1.5 mm² |
| Conductor cross-section, min. | 0.14 mm² |
| Material | Polycarbonate |
| Size | 1 |
| Stripping length, rated connection | 4.2 mm |
| Type of connection | PUSH IN |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002312 |
| ETIM 7.0 | EC002312 |
| ETIM 8.0 | EC000438 |
| ETIM 9.0 | EC000438 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-18 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| ROHS | Conform |
