RS32 24 VDC SAFETY
Product image
RS32 24 VDC SAFETY

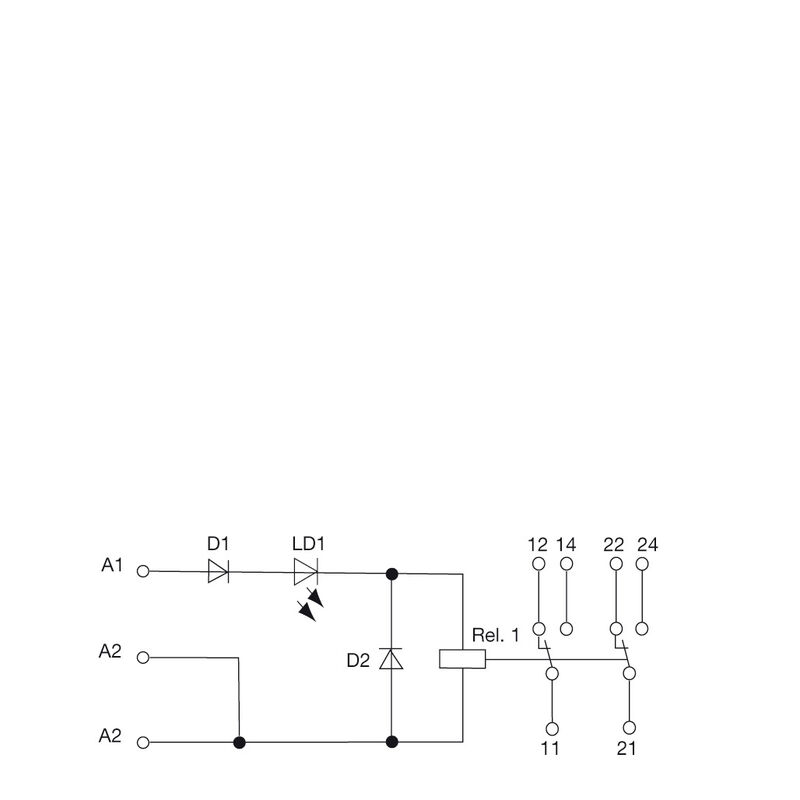

Wiring diagram

RS32 24 VDC SAFETY

RS-SERIES, Relay module, Number of contacts: 2, CO contact AgNi 90/10, Rated control voltage: 24 V DC ±10 %, Continuous current: 4 A, Screw connection, Test button available: No

Item No. 8872160000
Download data sheet Product Downloads Engineering Support
Related products 46
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Control side Load side General data Insulation coordination Further details of approvals / standards Connection data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
RS-SERIES, Relay module, Number of contacts: 2, CO contact AgNi 90/10, Rated control voltage: 24 V DC ±10 %, Continuous current: 4 A, Screw connection, Test button available: No
Order No.
8872160000
Type
RS32 24 VDC SAFETY
GTIN (EAN)
4032248605309
Qty.
10  items
Delivery status
Discontinued
Available until
31.08.2023

Dimensions and weights

Depth
63.5  mm
Depth (inches)
2.5  inch
Height
70  mm
Height (inches)
2.756  inch
Width
25  mm
Width (inches)
0.984  inch
Net weight
54.7  g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-25 °C...40 °C
Humidity
40 °C / 93 % rel. humidity, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a
REACH SVHC
Lead 7439-92-1
SCIP
7b5ffb72-271d-4c73-8b09-bd0aaee3697a

Control side

Rated control voltage
24 V DC ±10 %
Rated current DC
21 mA
Power rating
0.5 W
Status indicator
red LED

Load side

Rated switching voltage
250 V AC
Max. switching frequency at rated load
0.1  Hz
Max. switching voltage, AC
250  V
Min. switching power
10 mA @ 5 V
AC switching capacity (resistive), max.
1000 VA
Switch-off delay
≤ 10 ms
Contact type
2 CO contact (AgNi 90/10)
Mechanical service life
20 x 106 switching cycles

General data

Version
soldered relay
Mounting rail
TS 32
TS 35
Test button available
No
Mechanical switch position indicator
No
Colour
orange

Insulation coordination

Rated voltage
300  V
Pollution severity
2
Surge voltage category
III
Creepage and clearance distance input – output
≥ 4 mm
Dielectric strength to mounting rail
4 kVeff / 1 Min.
Impulse withstand voltage
4 kV (1.2/50 µs)
Protection degree
IP20

Further details of approvals / standards

Standards
DIN EN 50205

Connection data

Wire connection method
Screw connection
Stripping length, rated connection
8  mm
Clamping range, rated connection
2.5  mm²
Clamping range, min.
0.5  mm²
Clamping range, max.
4  mm²

Classifications

ETIM 6.0
EC001437
ETIM 7.0
EC001437
ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 9.0
27-37-16-01
ECLASS 9.1
27-37-16-01
ECLASS 10.0
27-37-16-01
ECLASS 11.0
27-37-16-01
ECLASS 12.0
27-37-16-01
ECLASS 13.0
27-37-16-01
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
