SAI-04D-VP3V-4A-P12L-PNP
Product image
SAI-04D-VP3V-4A-P12L-PNP
Dimensioned drawing
SAI-04D-VP3V-4A-P12L-PNP

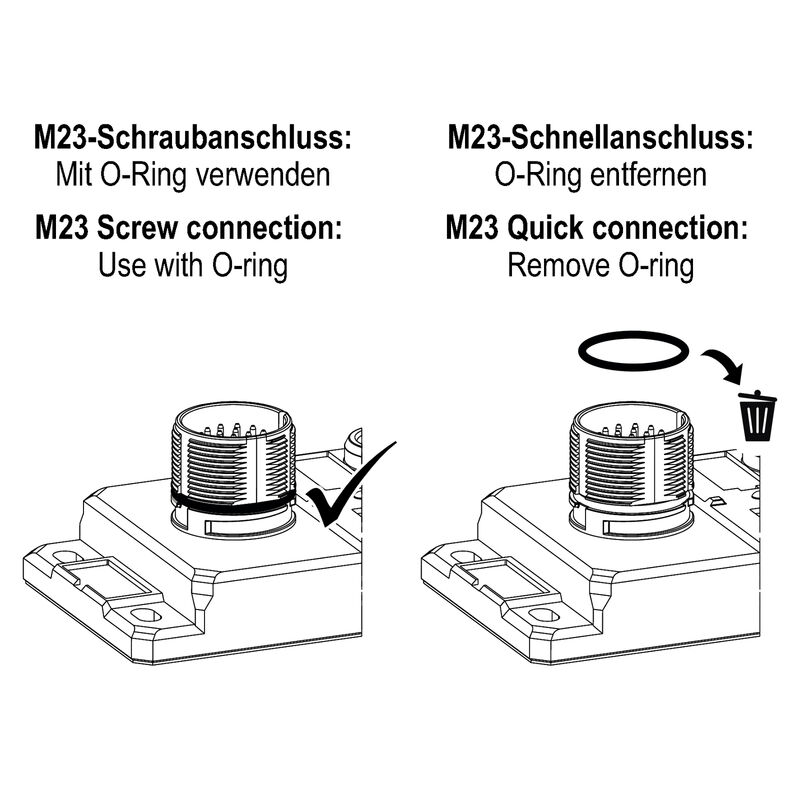

Detailed drawing
SAI-04D-VP3V-4A-P12L-PNP

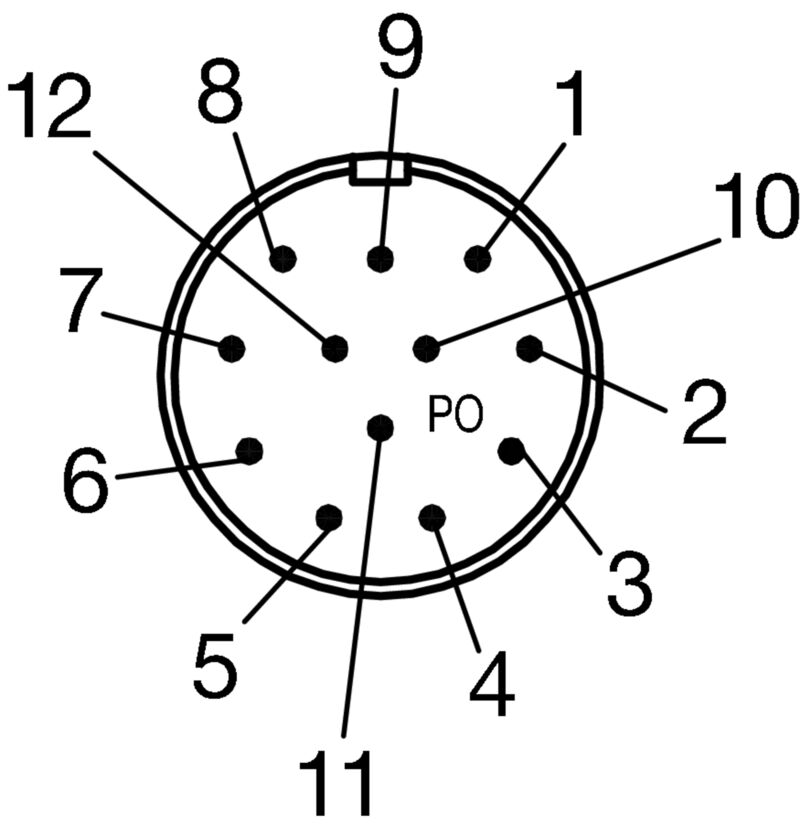

Pole scheme
SAI-04D-VP3V-4A-P12L-PNP
Pole scheme
M12 = A-coded

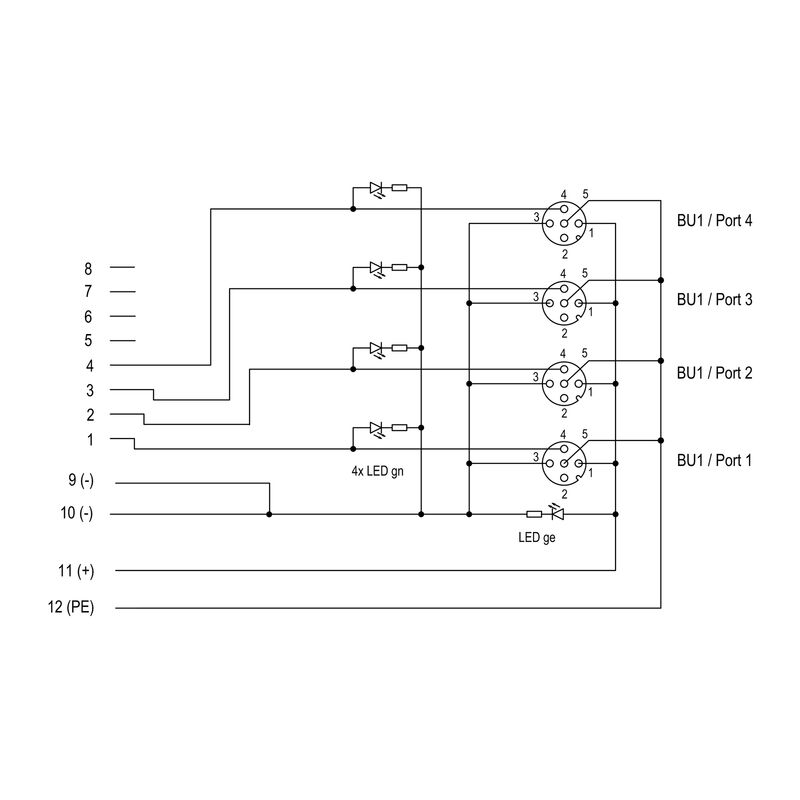

SAI-04D-VP3V-4A-P12L-PNP
Wiring diagram

SAI-04D-VP3V-4A-P12L-PNP

with M23 outlet, 12-pole, M12, M23, 30 V, A-coded, LED: Yes, LED initiator: Yes, Wiring type: PNP

Produkt ID 3023680000
Download datablad Engineering-support Produktdownloads
Tilbehør 3 Anvendte produkter 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Connection data Standards Electrical data General technical data Material data Technical data cable Classifications

Approvals

Сертификаты
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Konform

General ordering data

Версия
with M23 outlet, 12-pole, M12, M23, 30 V, A-coded, LED: Yes, LED initiator: Yes, Wiring type: PNP
Order No.
3023680000
Type
SAI-04D-VP3V-4A-P12L-PNP
GTIN (EAN)
4099986944688
Qty.
1 szt.

Dimensions and weights

Height
35,2 mm
Height (inches)
1,386 inch
너비
56 mm
Width (inches)
2,205 inch
Length
108 mm
Longueur (pouces)
4,252 inch
Net weight
250 g

Temperatures

Рабочая температура
-25 - 80°C

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant with exemption
Исключение из RoHS (если применимо/известно)
6c
REACH SVHC
Lead 7439-92-1
Bumetrizole (UV-326) 3896-11-5
SCIP
aff684c1-bd47-44d6-8d6c-78b6bd183080

Connection data

Elosztó kimenet
with M23 outlet
12-pole
Tightening torque
M12: 0.4 Nm
M23: 2.5 Nm

Standards

Connector standard
IEC 61076-2-010

Electrical data

Rated voltage, min.
10 V
Rated voltage, max.
30 V
Max. current-carrying capacity per slot
4 A
Total current
10 A
Current per signal
2 A
K dispozici elektrická izolace
No

General technical data

when screwed in
IP67
Codage de voie d'enfichage
A-coded
Number of poles
4
Número de contactos hembra
4
Connection thread
M12
M23
Infiammabilità
V-0
LED
Yes
LED initiator
Yes
LED colour for indicating operation
green
LED colour for I/O function
yellow

Material data

Material O-Ring
FKM, NBR
Housing main material
PBT
Material of distributor
Plastic
Housing colour
černá
Contact material
CuSn
CuZn
Contact surface
förgylld
Contact carrier material
PA

Technical data cable

Pólusszám
4
Suitable for cable carriers
No

Classifications

ETIM 8.0
EC003558
ETIM 9.0
EC003558
ETIM 10.0
EC003558
ECLASS 14.0
27-44-01-11
ECLASS 15.0
27-44-01-11
