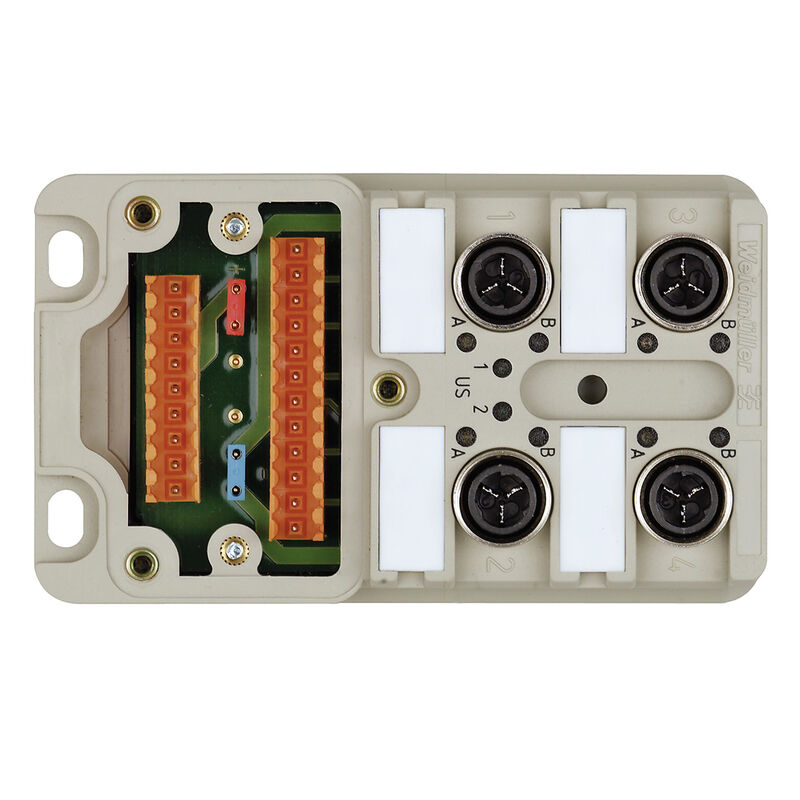

SAI-4-M 4P IDC UT
SAI-4-M 4P IDC UT
Dimensioned drawing
SAI-4-M 4P IDC UT
Wiring diagram

SAI-4-M 4P IDC UT

Fördelare i huven, nedre del, IDC, M12, 30 V, A-kodad, LED: Ja, Initiator ljusdiod: Ja, Anslutningstyp: PNP

Produkt ID 1766781000
Download datablad Engineering-support Produktdownloads
Tilbehør 4 Anvendte produkter 11
승인 Allmänna beställningsdata 치수 및 중량 Temperatures Экологическое соответствие изделия Anslutningsdata Данные об эл. характеристиках General technical data 재질 데이터 Datos técnicos de cable Classifications

승인

Approvals
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197

Allmänna beställningsdata

Verze
Fördelare i huven, nedre del, IDC, M12, 30 V, A-kodad, LED: Ja, Initiator ljusdiod: Ja, Anslutningstyp: PNP
Číslo objednávky
1766781000
Typ
SAI-4-M 4P IDC UT
GTIN (EAN)
4032248145300
Qty.
2 Styk

치수 및 중량

Hloubka
102 mm
Depth (inches)
4,016 inch
Výška
41,5 mm
Height (inches)
1,634 inch
Šířka
60 mm
Width (inches)
2,362 inch
Net weight
105,16 g

Temperatures

Provozní teplota
-20 - 90°C

Экологическое соответствие изделия

RoHS-Konformitätsstatus
Kompatibel med undantag
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
4060c755-8d0b-4d43-bdb3-4ffabe9d7497

Anslutningsdata

Vnější prům. vodiče, min.
1,2 mm
Conductor O.D., max.
1,6 mm
Clamping range, min.
0,08 mm²
Clamping range, max.
1,5 mm²
max. connection of equal cross-section
10
Storage space
Standard
Distributor outlet
Hood distributor lower part
IDC

Данные об эл. характеристиках

Rated voltage, min.
10 V
Rated voltage, max.
30 V
Test voltage
1 kV
Max. current-carrying capacity per slot
4 A
Total current
10 A
Current per signal
2 A
K dispozici elektrická izolace
Yes
Insulation resistance
109 Ω

General technical data

Plug-in station coding
Codificato A
Protection degree
IP67
Number of poles
4
Number of contact sockets
4
Connection thread
M12
Pollution severity
2
Fire behaviour
V-0
LED
Yes
LED initiator
Yes
LED colour for indicating operation
green
LED colour for I/O function
yellow

재질 데이터

Housing main material
Pocan
Material of distributor
Plastic
Housing colour
grey, RAL 7032
Hood sealing material
Viton
Screw socket
Nickel-plated CuZn
Contact material
CuZn
Contact surface
Gold-plated
Contact carrier material
PBT (UL 94 V0)

Datos técnicos de cable

Conductor O.D., max.
1,6 mm
Conductor O.D., min.
1,2 mm
Number of poles
4
Suitable for cable carriers
No

Classifications

ETIM 8.0
EC003558
ETIM 9.0
EC003558
ETIM 10.0
EC003558
ECLASS 14.0
27-44-01-11
ECLASS 15.0
27-44-01-11
