Properties
| Version | Hood version Ex, M12, 30 V, A-coded, LED: Yes, LED initiator: Yes, Wiring type: |
| Order No. | 1896050000 |

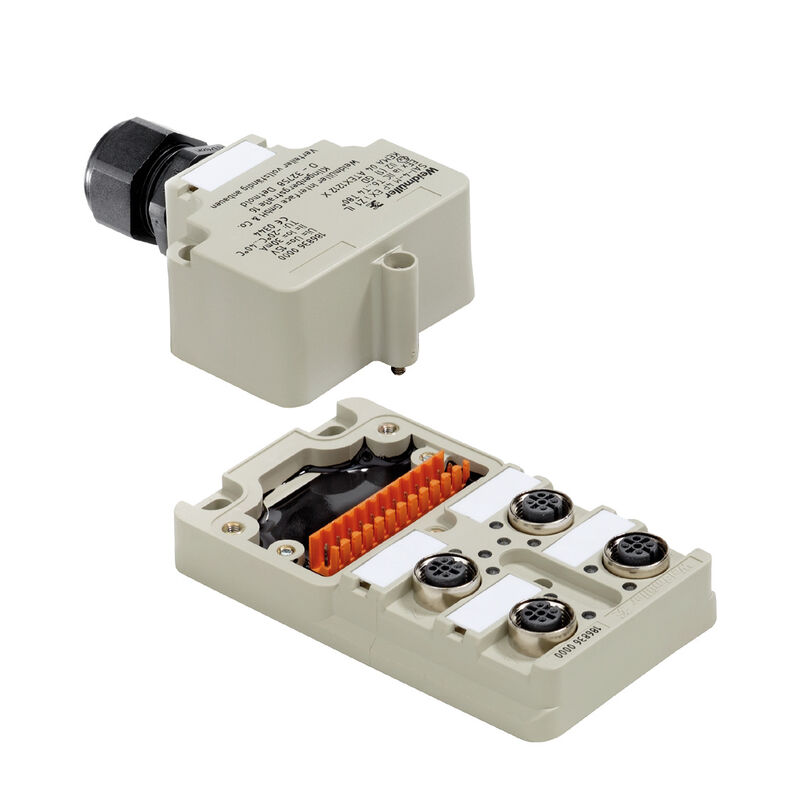

| Type | SAI-4-M 5P M12 EX IA |
| GTIN (EAN) | 4032248511006 |
| Qty. | 1 items |
| Delivery status | This article will no longer be available in the future. |
| Available until | 29.06.2024 |
| Alternative product | [2943810000](~/p/2943810000) |
| Net weight | 206 g |
| Operating temperature | -20 - 40 |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Clamping range, min. | 0.1 mm² |
| Clamping range, max. | 1.5 mm² |
| Storage space | Standard |
| Distributor outlet | Hood version Ex |
| Connection type PE | Screw connection |
| Rated voltage, min. | 10 V |
| Rated voltage, max. | 30 V |
| Test voltage | 1 kV |
| Max. current-carrying capacity per slot | 100 mA |
| Total current | 2.3 A |
| Current per signal | 100 mA |
| Insulation strength | 109 Ω |
| Plug-in station coding | A-coded |
| Protection degree | IP68 |
| Number of poles | 5 |
| Number of contact sockets | 4 |
| Connection thread | M12 |
| Pollution severity | 3 |
| Fire behaviour | V-0 |
| Plugging cycles | ≤ 50 |
| LED | Yes |
| LED initiator | Yes |
| LED colour for indicating operation | green |
| LED colour for I/O function | yellow |
| Housing main material | Pocan |
| Material of distributor | Plastic |
| Housing colour | grey, RAL 7032 |
| Hood sealing material | Viton |
| Screw socket | Nickel-plated CuZn |
| Contact material | CuZn |
| Contact surface | Gold-plated |
| Contact carrier material | PBT (UL 94 V0) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_177492) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1896050000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002585 |
| ETIM 7.0 | EC003558 |
| ETIM 8.0 | EC003558 |
| ETIM 9.0 | EC003558 |
| ECLASS 9.0 | 27-44-01-08 |
| ECLASS 9.1 | 27-44-01-08 |
| ECLASS 10.0 | 27-44-01-11 |
| ECLASS 11.0 | 27-44-01-11 |
| ECLASS 12.0 | 27-44-01-11 |
| ECLASS 13.0 | 27-44-01-11 |
| ECLASS 14.0 | 27-44-01-11 |
| Approvals |  |
| ROHS | Conform |
