SAIBWZ-P-4/6-M12
SAIBWZ-P-4/6-M12

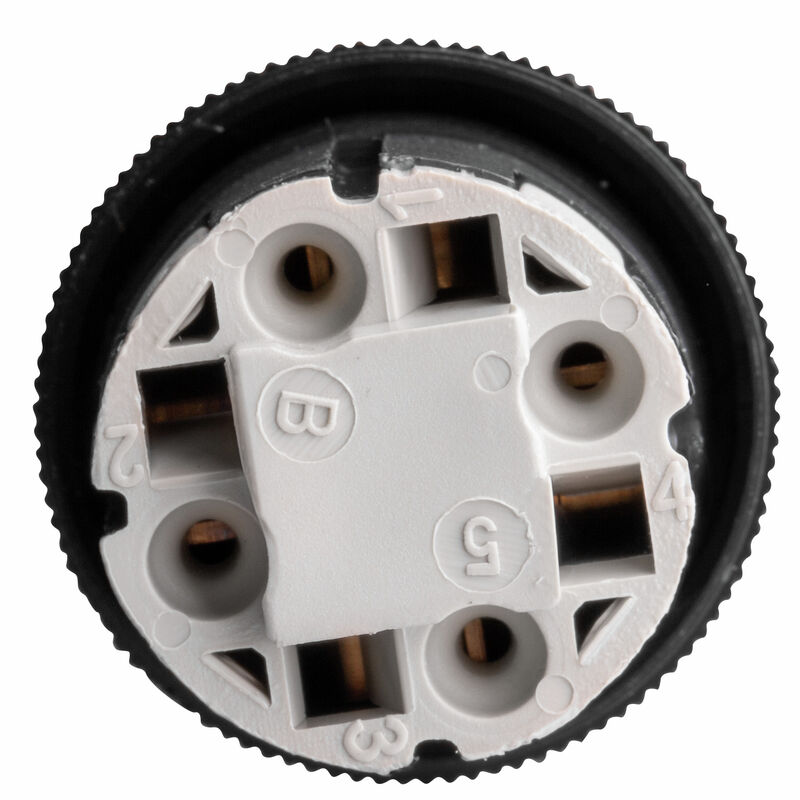

Pole scheme
Socket
SAIBWZ-P-4/6-M12
SAIBWZ-P-4/6-M12

SAIBWZ-P-4/6-M12

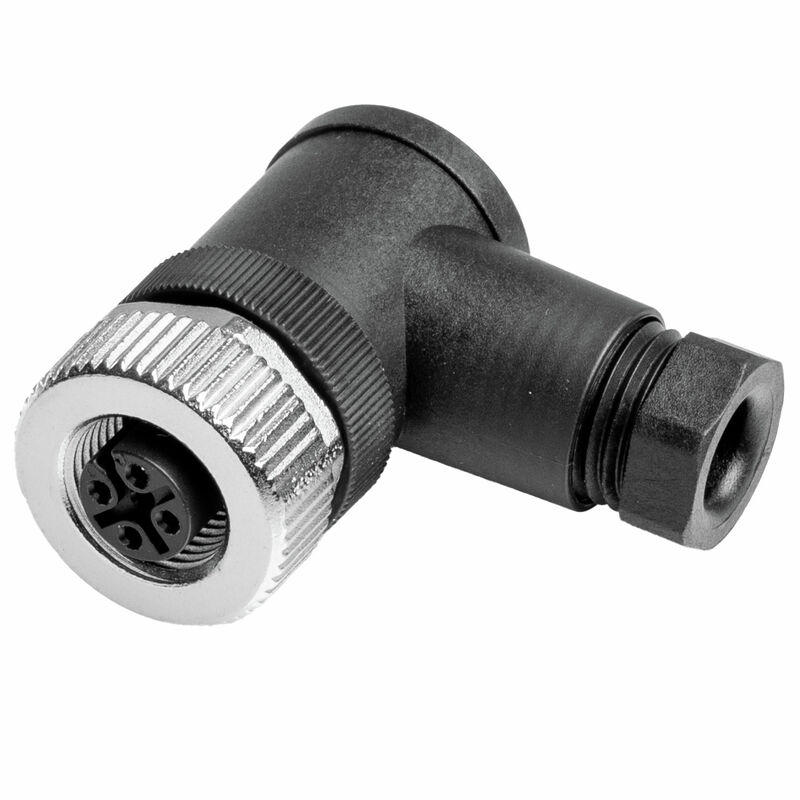

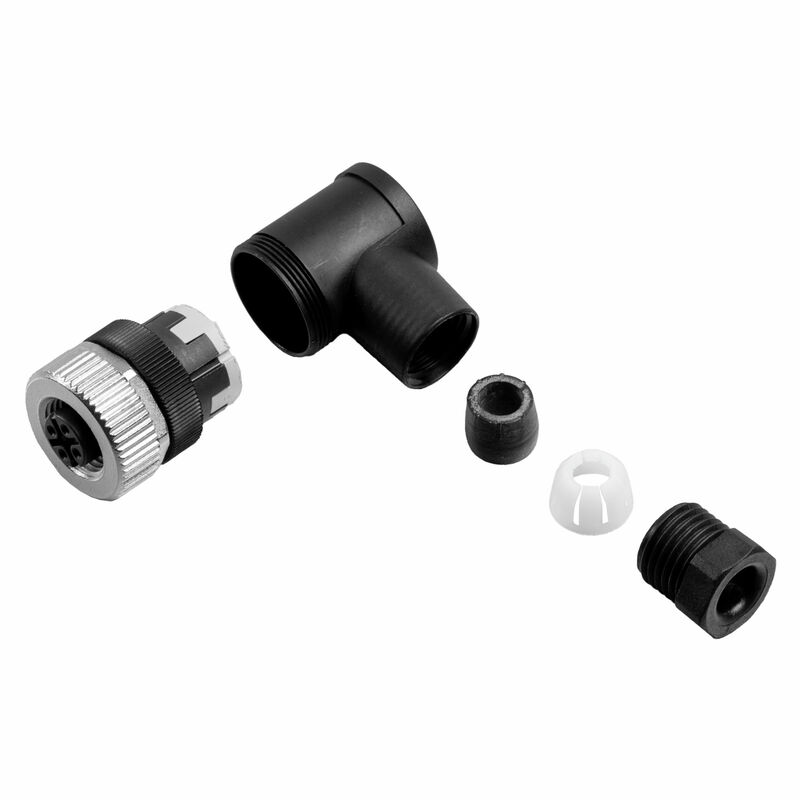

Field attachable connector, M12

Ürün No. 1967880000
Veri sayfasını indir Product Downloads Engineering Support
İlgili ürünler 17
Approvals General ordering data Dimensions and weights Environmental Product Compliance Dane techniczne adaptowalnych złączy wtykowych Dane ogólne Classifications

Approvals

Jóváhagyások
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Versión
Field attachable connector, M12
Order No.
1967880000
Tipo
SAIBWZ-P-4/6-M12
GTIN(EAN)
4032248668656
Qty.
1 adet

Dimensions and weights

Net weight
25 g

Environmental Product Compliance

RoHS 준수 상태
Compliant without exemption
REACH SVHC
Imidazolidine-2-thione 96-45-7
SCIP
a2cb82cf-1eab-43cd-bafb-63d26622fe9e

Dane techniczne adaptowalnych złączy wtykowych

Cable diameter, max.
6 mm
Cable diameter, min.
4 mm
Coding
A-coded
Conductor cross-section, max.
0,5 mm²
Conductor cross-section, min.
0,14 mm²
Contact surface
Gold-plated
Gender of contact
Female
Housing main material
PA
Insulation resistance
108 Ω
Material Gewindering
Diecast zinc
Nominal current
4 A
Nominal voltage
250 V
Number of poles
4
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Shield connection
Non
Temperaturbereich Gehäuse
-40 ~ +85 ° C
Type of connection
złącze sprężynowe

Dane ogólne

Number of poles
4
Connection 1
M12
Connection 2
Tension-clamp
Housing main material
PA
Connection thread
M12
Contact surface
Gold-plated
Protection degree
IP67
Plugging cycles
≥ 100

Classifications

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
