Properties
| Version | Built-in plugs, M5, pin, straight, Mounting thread: , Number of poles: 4, Strand / cable length: 0.2 m |
| Order No. | 1873030000 |
| Type | SAIE-M5S-4-0.2U |
| GTIN (EAN) | 4032248478293 |
| Qty. | 1 items |
| Net weight | 4 g |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | ebf89fc8-a87f-4691-b87a-dfb9921774b4 |
| Cable glands | M 5 |
| Contact surface | Gold-plated |
| Housing main material |
Brass
nickel-plated |

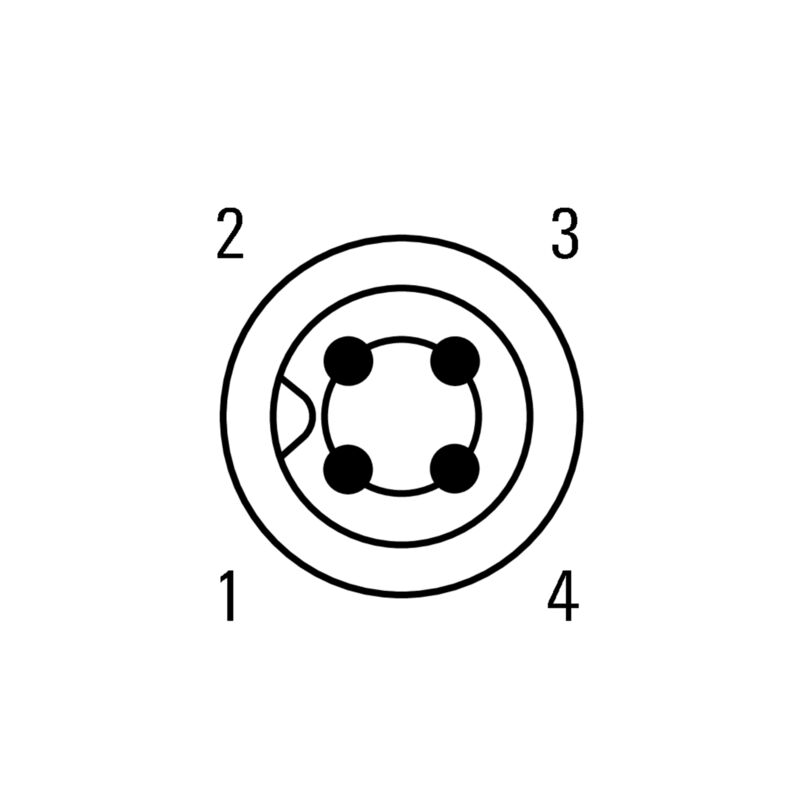

| Number of poles | 4 |
| Plugging cycles | ≥ 500 |
| Protection degree |
IP67
when screwed in |
| Rated current | 1 A |
| Rated voltage | 60 V |
| Temperature range of housing | -25…+80 °C |
| Type of connection | Pin |
| Cable glands | M 5 |
| Cable length | 0.2 m |
| Conductor O.D. | - |
| Connection thread | M5 |
| Contact surface | Gold-plated |
| Core cross-section | 0.14 mm² |
| Housing main material |
Brass
nickel-plated |
| Material | PVC |
| Number of poles | 4 |
| Plugging cycles | ≥ 500 |
| Protection degree |
IP67
when screwed in |
| Rated current | 1 A |
| Rated voltage | 60 V |
| Rated voltage | 60 V |
| Strand / cable length | 0.2 m |
| Temperature range of housing | -25…+80 °C |
| Type of connection | Pin |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205297) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1873030000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1873030000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002635 |
| ETIM 7.0 | EC003570 |
| ETIM 8.0 | EC003570 |
| ETIM 9.0 | EC003570 |
| ECLASS 9.0 | 27-44-01-03 |
| ECLASS 9.1 | 27-44-01-03 |
| ECLASS 10.0 | 27-44-01-03 |
| ECLASS 11.0 | 27-44-01-03 |
| ECLASS 12.0 | 27-44-01-03 |
| ECLASS 13.0 | 27-44-01-03 |
| ROHS | Conform |
