SAIL-M12BG-2/4-10UGE
SAIL-M12BG-2/4-10UGE
Dimensioned drawing
Straight socket
SAIL-M12BG-2/4-10UGE
Pole scheme
Socket

SAIL-M12BG-2/4-10UGE

This product is discontinued.

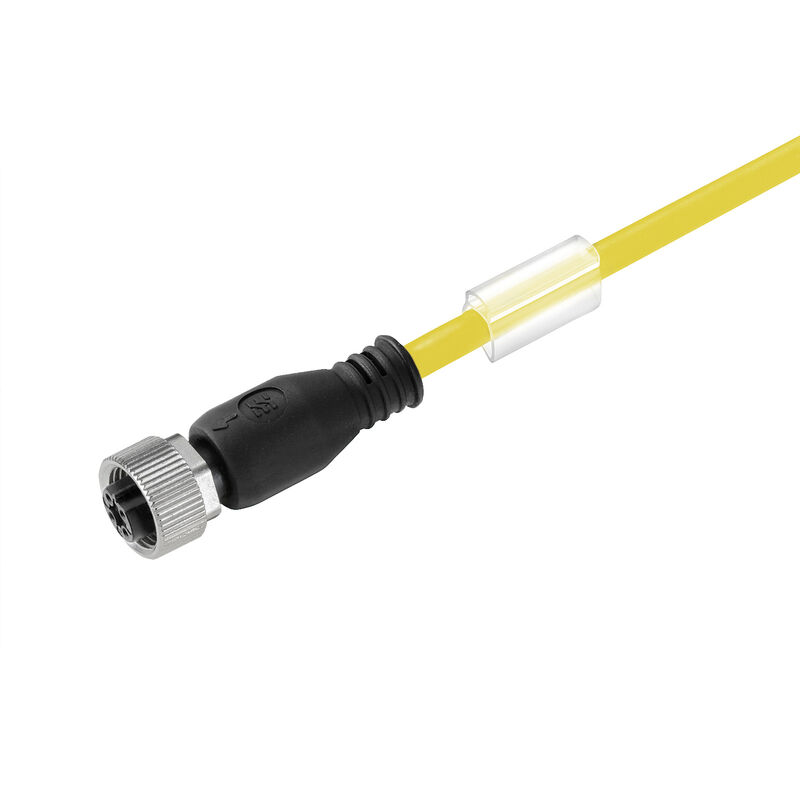

Sensor/actuator line, One end without connector, M12, Number of poles : 3, 10 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Item No. 1092901000
Download data sheet Engineering Support Product Downloads
Accessories 7
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 3, 10 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1092901000
Type
SAIL-M12BG-2/4-10UGE
GTIN (EAN)
4032248865987
Qty.
1 items
Delivery status
Discontinued
Last order date
/Date(1764370800000)/

Dimensions and weights

Net weight
266 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Böjradie min, fast monterad
5 x cable diameter
Böjradie min, rörlig
10 x cable diameter
Bending cycles
5 Mio
Bending cycles at torsion
> 5 Mio.
Colour coding
brown
blue
black
Configurable cable length
No
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Hydrolysis and microbe resistant
Yes
Irradiation crosslinked
No
LABS-free
Yes
Length of torsion
1 m
Number of poles
3
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Outside diameter
4.3 mm ± 0.2 mm
Przydatność do łańcucha ciągowego
Yes
Resistance to oils
in accordance with IEC 60811:404
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistant to welding beads
No
Sheath material
PUR
Speed
5 m/s
Temperature range, moving
-25...80 °C
Temperature range, stationary
-40...80 °C
Torsion resistance
360 °/m
Welding spark resistance
No
Галогены
No
Изоляция
PP
Поперечное сечение жилы
0,34 mm²
Ускорение
5 m/s²
Экранированный
No
외피 색상
yellow
케이블 길이
10 m

General technical data

IP67
IP68
when screwed in
IP65
IP66
Coding
A-coded
Connection thread
M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
2/4
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Temperature range of housing
-25…+85 °C
Threaded ring material
Brass, nickel-plated
Tightening torque
M12: 0.8 - 1.2 Nm
Version
Female socket, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

General standards

Connettori a norma
IEC 61076-2-101

Standards

Csatlakozó, standard
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, IP69, female contact, straight, Plastic, unshielded

Plug, right

Plug right
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
