SAIL-M12W-3-5.0T

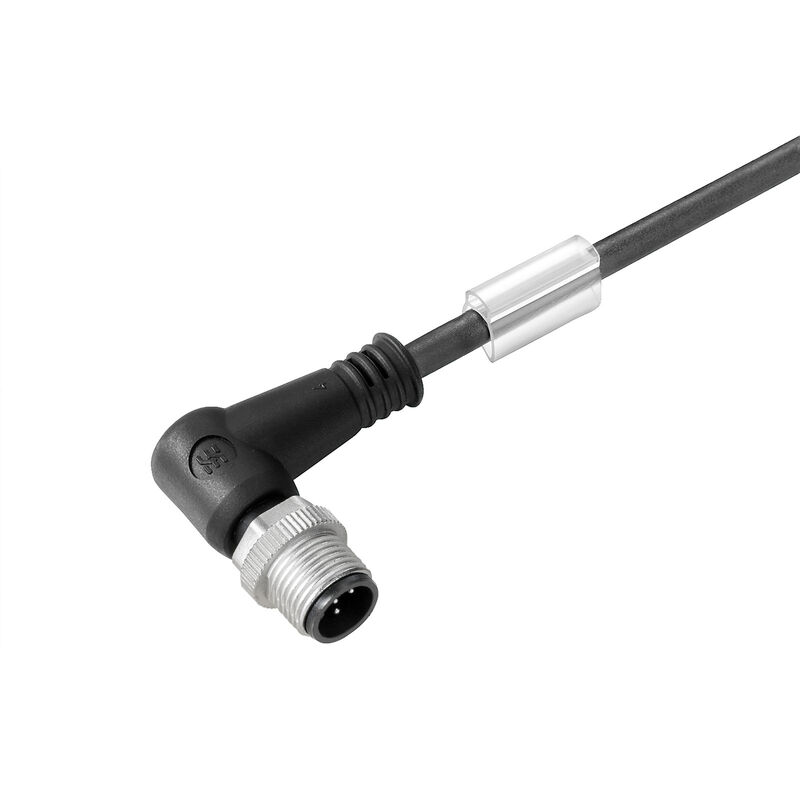

Sensor/actuator line, One end without connector, M12, Number of poles : 3, 5 m, pin, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Item No. 1021760500

Version	Sensor/actuator line, One end without connector, M12, Number of poles : 3, 5 m, pin, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.	1021760500
Type	SAIL-M12W-3-5.0T
GTIN (EAN)	4032248735518
Qty.	1 items

Net weight

158 g

REACH SVHC	Lead 7439-92-1
SCIP	1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Product type	Sensor/actuator line
Sheathing colour	black

Acceleration	5 m/s²
Bending cycles	10 Mio
Bending radius, min., moving	7.5 x cable diameter
Bending radius, min., stationary	4 x cable diameter
Cable length	5 m
Colour coding	brown blue black
Configurable cable length	No
Core cross-section	0.34 mm²
Halogen	No
Insulation	PP
Irradiation crosslinked	No
Number of poles	3
Outer cladding in accordance with UL AWM style	20233 (80 °C / 300 V)
Outside diameter	4.9 mm ± 0.2 mm
Resistant to welding beads	Yes
Sheath material	PUR
Sheathing colour	black
Shielded	No
Speed	200 m/s
Suitable for cable carriers	Yes
Temperature range, moving	-30...105 °C
Temperature range, stationary	-40...105 °C
Torsion resistance	360 °/m
Welding spark resistance	Yes

Coding	A-coded
Connection thread	M12
Contact surface	Gold-plated
Housing main material	PUR
Insulation strength	10⁸ Ω
jumpered	No
LED	No
Plugging cycles	≥ 100
Pollution severity	3
Protection degree	IP67 IP68 when screwed in IP65 IP66
Rated current	4 A
Rated voltage	250 V
Temperature range of housing	-25…+85 °C
Threaded ring material	Diecast zinc
Tightening torque	M12: 0.8 - 1.2 Nm
Version	pin, 90°

Insulation strength	10⁸ Ω
Rated voltage	250 V

Certificate no. (cULus)	E307231
Connector standard	IEC 61076-2-101

Connector standard

IEC 61076-2-101

Plug left

M12, A-coded, IP69, male contact, angled 90°, Plastic, unshielded

Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_156782)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1021760500)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1021760500)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1021760500&norm=0)
Product Change Notification	[DE - Technische Änderung zu M12 Gewindering mit 6-Kant](https://mdcop.weidmueller.com/mediadelivery/asset/900_88623) [EN - Technical change to M12 nut with additional hexagonal mounting](https://mdcop.weidmueller.com/mediadelivery/asset/900_88624)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)

Approvals	![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E307231
