Properties

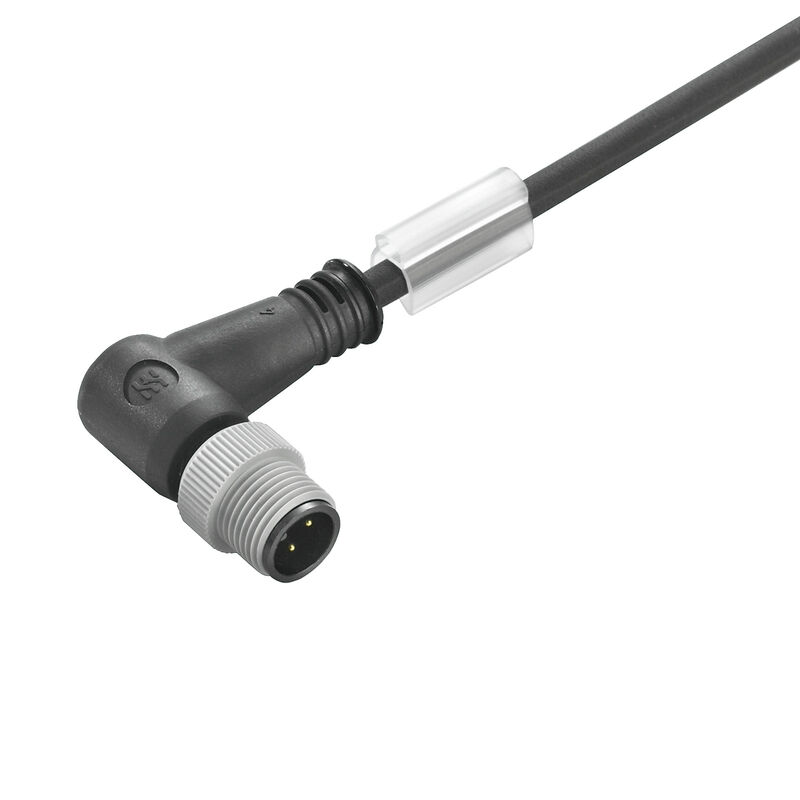

| Version | Sensor/actuator line, One end without connector, M12, Number of poles : 5, 10 m, pin, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No |
| Order No. | 1108691000 |
| Type | SAIP-M12W-5-10U |
| GTIN (EAN) | 4032248888627 |
| Qty. | 1 items |
| Net weight | 346.72 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 1c533b66-fcff-4da5-b89f-fd55fbf5cb55 |
| Acceleration | 5 m/s² |
| Bending cycles | 12 Mio |
| Bending cycles at torsion | > 5 Mio. |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |
| Cable length | 10 m |
| Colour coding |
brown
white blue black grey |
| Configurable cable length | No |
| Core cross-section | 0.34 mm² |
| Core in accordance with UL AWM style | 10493 (80 °C / 300 V) |
| Halogen | No |
| Hydrolysis and microbe resistant | Yes |
| Insulation | PP |
| Irradiation crosslinked | No |
| LABS-free | Yes |
| Length of torsion | 1 m |
| Number of poles | 5 |
| Outer cladding in accordance with UL AWM style | 20549 (80 °C / 300 V) |
| Outside diameter | 5.3 mm ± 0.2 mm |
| Resistance to oils | in accordance with IEC 60811:404 |
| Resistance to spread of flame |
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2 |
| Resistant to welding beads | No |
| Sheath material | PUR |
| Sheathing colour | black |
| Shielded | No |
| Speed | 5 m/s |
| Suitable for cable carriers | Yes |
| Temperature range, moving | -25...80 °C |
| Temperature range, stationary | -40...80 °C |
| Torsion resistance | 360 °/m |
| Welding spark resistance | No |
| Coding | A-coded |
| Connection thread | M12 |
| Contact surface | Gold-plated |
| Housing main material | PUR |
| Insulation strength | 108 Ω |
| jumpered | No |
| LED | No |
| Plugging cycles | ≥ 100 |
| Pollution severity | 3 |
| Protection degree |
IP65
IP66 IP67 IP68 when screwed in |
| Rated current | 4 A |
| Rated voltage | 60 V |
| Temperature range of housing | -25…+85 °C |
| Threaded ring material | Plastic |
| Tightening torque | M12 (plastic nut): 0.6 - 0.8 Nm |
| Version | pin, 90° |
| Insulation strength | 108 Ω |
| Rated voltage | 60 V |
| Certificate no. (cULus) | E307231 |
| Connector standard | IEC 61076-2-101 |
| Connector standard | IEC 61076-2-101 |
| Plug left | M12, A-coded, IP69, male contact, angled 90°, Plastic, unshielded |
| Plug right | free conductor end |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_157024) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1108691000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1108691000) |
| Product Change Notification |
[Technical change to M12 plastic nuts - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_93139)
[Technical change to M12 plastic nuts - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_93140) [Technical change to 3 to 5-pole unshielded M12 cord sets](https://mdcop.weidmueller.com/mediadelivery/asset/900_318301) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 9.0 | EC001855 |
| ECLASS 9.0 | 27-06-03-11 |
| ECLASS 9.1 | 27-06-03-11 |
| ECLASS 10.0 | 27-06-03-11 |
| ECLASS 11.0 | 27-06-03-11 |
| ECLASS 12.0 | 27-06-03-11 |
| ECLASS 13.0 | 27-06-03-11 |
| ECLASS 14.0 | 27-06-03-11 |
