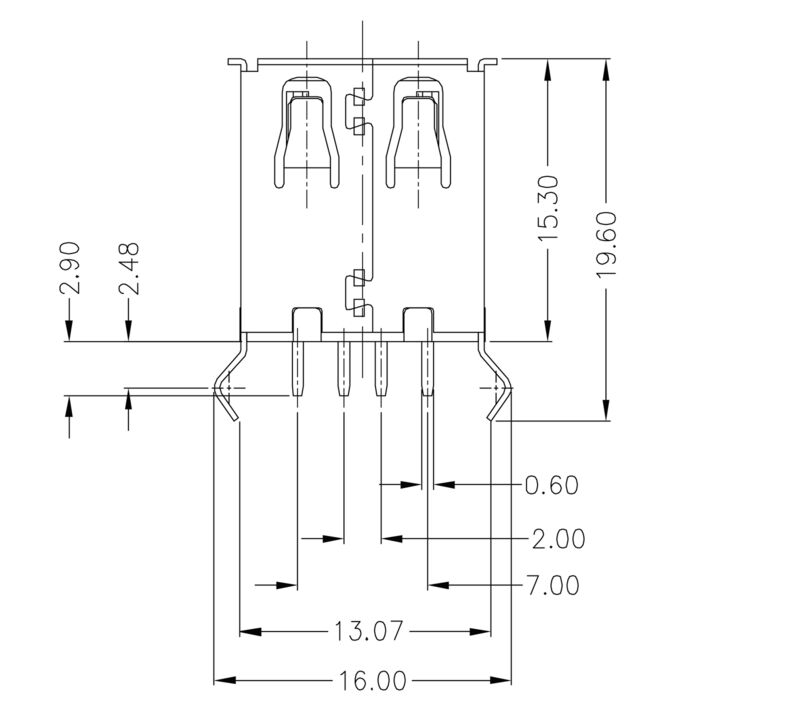

Dimensioned drawing
USB2.0A T1V 2.5N4 TY BK

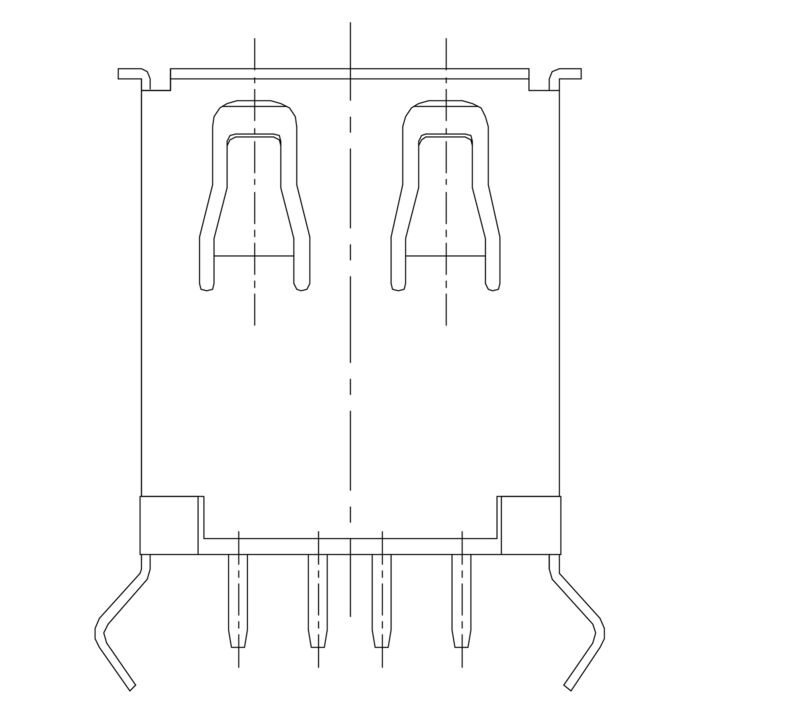

Dimensioned drawing
USB2.0A T1V 2.5N4 TY BK

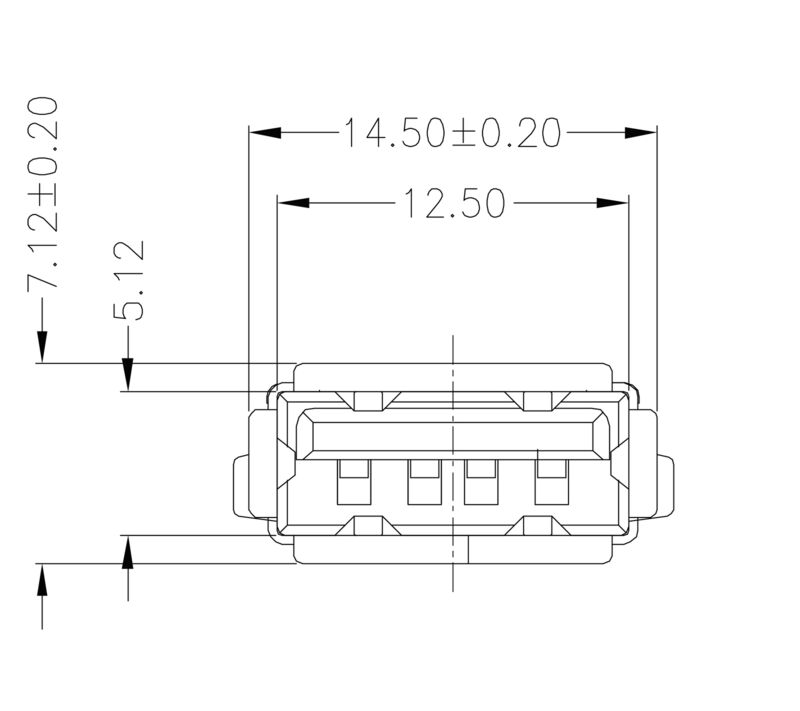

Dimensioned drawing
USB2.0A T1V 2.5N4 TY BK

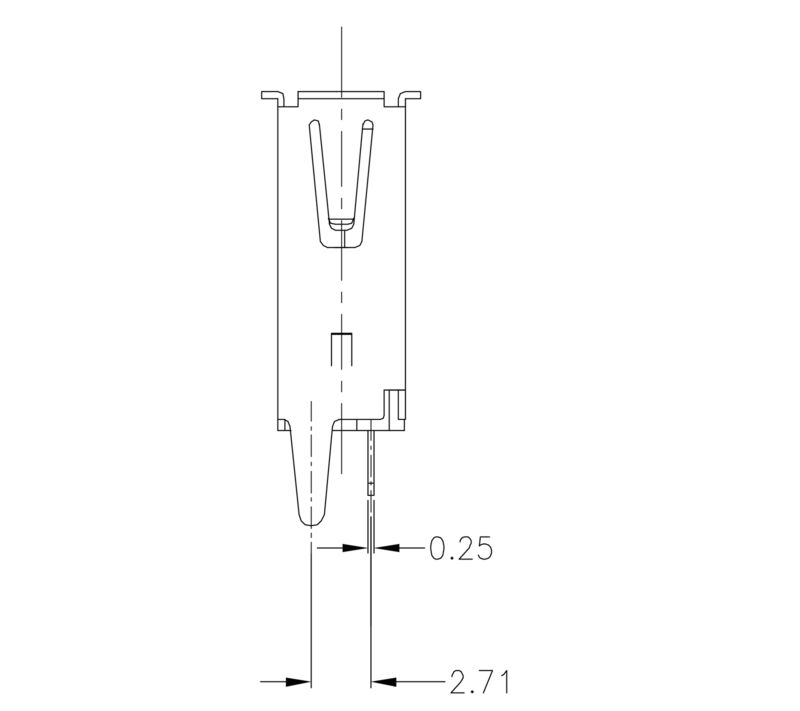

Dimensioned drawing
USB2.0A T1V 2.5N4 TY BK

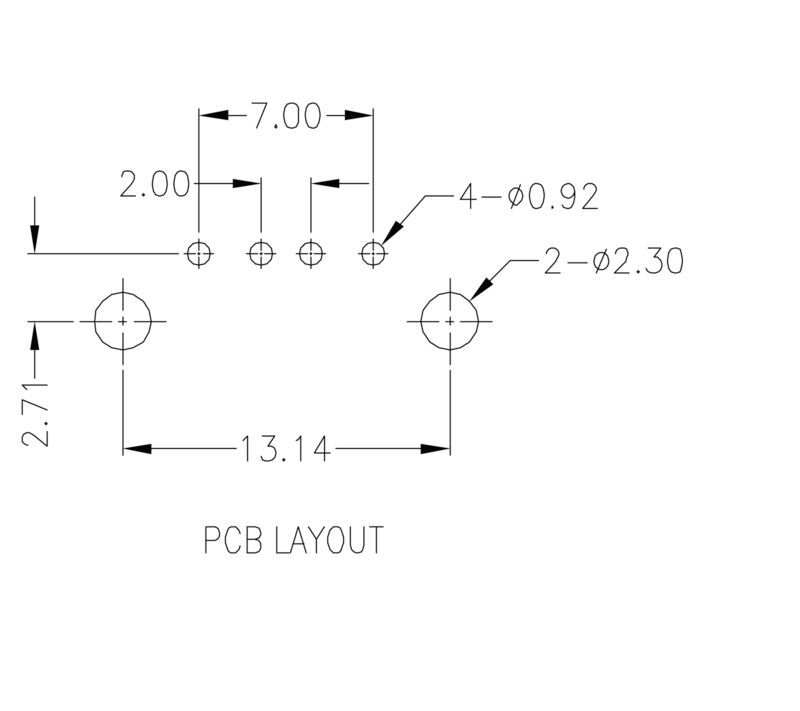

PCB design
USB2.0A T1V 2.5N4 TY BK
Legend

USB2.0A T1V 2.5N4 TY BK

Dette produkt er snart ikke længere tilgængeligt.

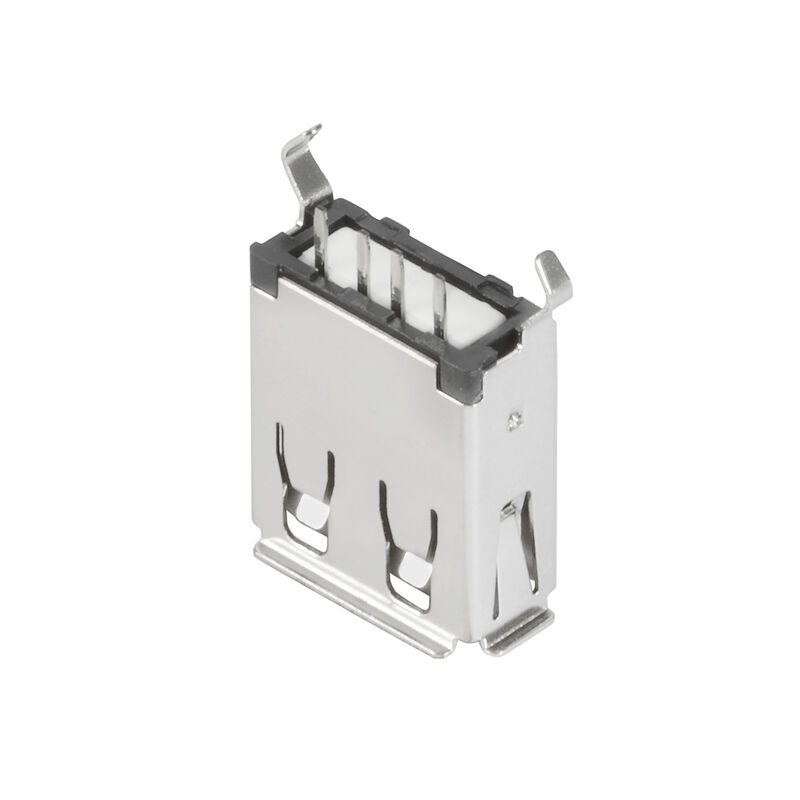

OMNIMATE Data - USB jack, PCB plug-in connector, USB 2.0, Type A, 480 Mbps, THT solder connection, 180°, Plugging cycles: ≥ 1500, Number of poles: 4, PBT, Gold over nickel, Tray (manual assembly)

Produkt ID 1985910000
Download datablad Engineering Support Product Downloads
Approvals General ordering data Dimensions and weights Environmental Product Compliance Specifiche di sistema Электрические свойства Material data Packing Classifications

Approvals

ROHS
Conform

General ordering data

Változat
OMNIMATE Data - USB jack, PCB plug-in connector, USB 2.0, Type A, 480 Mbps, THT solder connection, 180°, Plugging cycles: ≥ 1500, Number of poles: 4, PBT, Gold over nickel, Tray (manual assembly)
Rendelési szám
1985910000
Típus
USB2.0A T1V 2.5N4 TY BK
GTIN (EAN)
4050118370843
Qty.
100 Styk
Packaging
Tray (manual assembly)
Delivery status
This article will no longer be available in the future.
Available until
01.11.2025

Dimensions and weights

Mélység
7,12 mm
Mélység (coll)
0,28 inch
Magasság
19,6 mm
Height (inches)
0,772 inch
Height of lowest version
15,3 mm
Szélesség
14,5 mm
Width (inches)
0,571 inch
Net weight
2,499 g

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant
REACH SVHC
No SVHC above 0.1 wt%

Specifiche di sistema

Abgangswinkel
180°
Anschlussart
Solder connection
Anzahl Lötstifte pro Pol
1
LED
No
Mounting onto the PCB
THT solder connection
Performance-Category
480 Mbps
Pitch in inches (P)
0,079 "
Polzahl
4
Produktfamilie
OMNIMATE Data - USB jack
Přenosová rychlost
480 Mbps
Raster in mm (P)
2 mm
Schirmoberfläche
nickel-plated
Schutzart
IP20
Shield tabs
none
Shielding
Yes
Shielding material
Brass
Side termination, characteristic
Solder flange
Solder pin dimensions
Octagonal
Solder pin length (l)
2,9 mm
Soldering process
Manual soldering
Wave soldering
Steckzyklen
≥ 1500
Tolerance of solder pin position
± 0.1 mm

Электрические свойства

Dielectric strength, contact / contact
500 V AC
Insulation resistance
≥ 1000 MΩ
Nominal voltage
30 V
Rated current
1.5 A

Material data

Szigetelőanyag
PBT
Szín
black
Színskála (hasonló)
RAL 9011
Szigetelőanyag csoport
II
Comparative Tracking Index (CTI)
≥ 500
Szigetelési ellenállás
≥ 1000 MΩ
UL 94 flammability rating
V-0
Contact base material
Phosphorus bronze
Contact material
Cu-alloy
Contact surface
Gold over nickel
Layer structure of plug contact
30...80 µ" Ni / ≥ 30 µ" Au
Storage temperature, min.
-40 °C
Storage temperature, max.
60 °C
-40 °C
Operating temperature, max.
60 °C

Packing

Emballage
Tray (manual assembly)
Longueur VPE
267 mm
VPE szélesség
239 mm
VPE magasság
11 mm

Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
