Properties
| Version | Surge voltage arrester, Low voltage, Surge protection, TT nur für L-N, TN-C, TN-S |
| Order No. | 2859330000 |
| Type | VPU AC I F 1 275/25 |
| GTIN (EAN) | 4064675570509 |
| Qty. | 1 items |
| Depth | 91 mm |
| Depth (inches) | 3.583 inch |
| Height | 90 mm |
| Height (inches) | 3.543 inch |
| Width | 36 mm |
| Width (inches) | 1.417 inch |
| Net weight | 330 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| Humidity | 5 - 95% rel. humidity |
| Colour |
black
orange |
| Design |
Installation housing; 2TE
Insta IP 20 |
| Operating altitude | ≤ 2000 m |

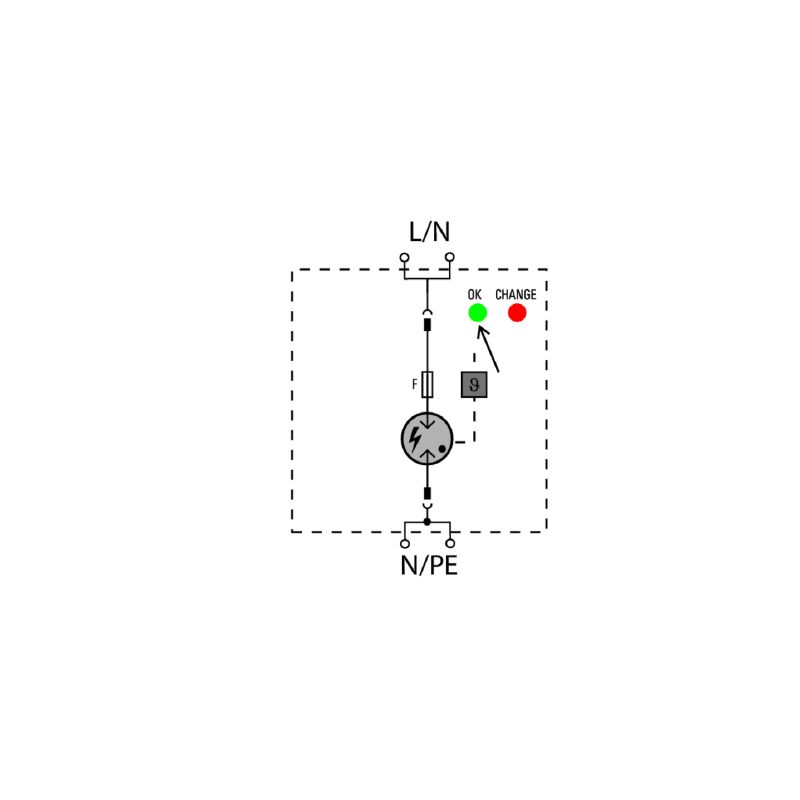

| Optical function display | green = OK; red = arrester is defective - replace |
| Protection degree | IP20 in installed state |
| Rail | TS 35 |
| Segment | Power distribution |
| Suitable for | Count-in installation (leakage current free) |
| UL 94 flammability rating | V-0 |
| Version | Surge protection |
| Pollution severity | 2 |
| Surge voltage category | IV |
| Discharge current Imax (8/20µs) wire-PE | 65 kA |
| Discharge current In (8/20µs) wire-PE | 25 kA |
| Discharge current, Iimp (10/350 µs) | 25 kA |
| Energy coordination (≤10 m) |
Type I
Type II Type III |
| Frequency range, max. | 60 Hz |
| Frequency range, min. | 50 Hz |
| Fuse | Not required |
| Lightning test current Iimp (10/350 µs) (L-PE) | 25 kA |
| Low voltage network |
TT nur für L-N
TN-C TN-S |
| Mains voltage | 230 V / 400 V |
| Max. continuous voltage, Uc (AC) | 275 V |
| Number of poles | 1 |
| Protection level Up at IN (L/N-PE) | ≤ 1.5 kV |
| Rated voltage (AC) | 240 V |
| Requirements category acc. to IEC 61643-11 |
Type I
Type II |
| Requirements class, acc. to EN 61643-11 |
T1
T2 |
| Response time | <100 ns |
| Short-circuit current rating ISCCR | 100 kA |
| Signalling contact | No |
| Standards |
EN 61643-11
IEC 61643-11 |
| Suitable for | Count-in installation (leakage current free) |
| Temporary surge voltage (over-voltage) - TOV | 442 V |
| Voltage type | AC |
| Stripping length | 15 mm |
| Wire connection method | Screw connection |
| Type of connection | Screw connection |
| Stripping length, rated connection | 15 mm |
| Tightening torque, min. | 2.5 Nm |
| Tightening torque, max. | 4.5 Nm |
| Clamping range, rated connection | 16 mm² |
| Clamping range, min. | 4 mm² |
| Clamping range, max. | 35 mm² |
| Wire cross-section, solid, min. | 1.5 mm² |
| Wire cross-section, solid, max. | 35 mm² |
| Wire connection cross section, finely stranded, min. | 1.5 mm² |
| Wire connection cross section, finely stranded, max. | 25 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 2.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 35 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection cross-section, stranded, max. | 35 mm² |
| Time interval | 5 years |
| Product information | If F1 > 315A gG, then the integrated backup fuse always operates before F1 |
| Approval/Certificate/Document of Conformity | [EU_Konformitätserklärung / EU_Declaration_of_Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_256638) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_249806) |
| User Documentation | [Beipackzettel / Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_256378) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000941 |
| ETIM 7.0 | EC000941 |
| ETIM 8.0 | EC000941 |
| ETIM 9.0 | EC000941 |
| ECLASS 9.0 | 27-13-08-05 |
| ECLASS 9.1 | 27-13-08-05 |
| ECLASS 10.0 | 27-13-08-05 |
| ECLASS 11.0 | 27-13-08-05 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| Approvals |   |
| ROHS | Conform |
