Properties

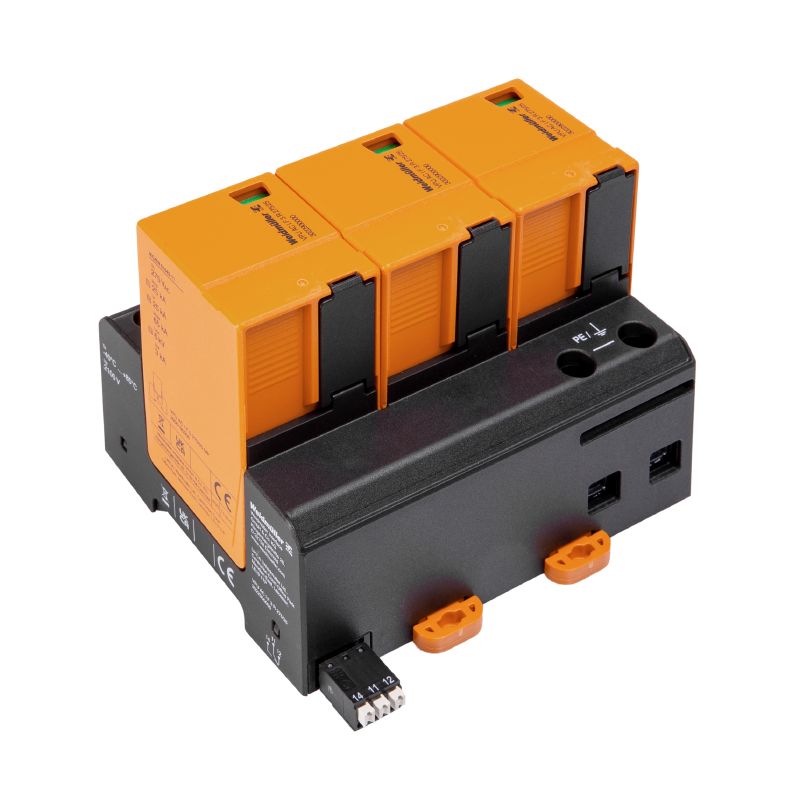

| Version | Surge voltage arrester, Low voltage, Surge protection, TN-C |
| Order No. | 3022890000 |
| Type | VPU AC I F 3 275/25 |
| GTIN (EAN) | 4099986942172 |
| Qty. | 1 items |
| Depth | 86 mm |
| Depth (inches) | 3.386 inch |
| Height | 90 mm |
| Height (inches) | 3.543 inch |
| Width | 108 mm |
| Width (inches) | 4.252 inch |
| Net weight | 825 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| Humidity | 5 - 95% rel. humidity |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour |
black
orange |
| Design |
Installation housing; 6 TE
Insta IP 20 |
| Operating altitude | ≤ 2000 m |
| Optical function display | green = OK; red = arrester is defective - replace |
| Protection degree | IP20 in installed state |
| Rail | TS 35 |
| Suitable for | Count-in installation (leakage current free) |
| UL 94 flammability rating | V-0 |
| Version | Surge protection |
| Pollution severity | 2 |
| Surge voltage category | III |
| Discharge current Imax (8/20µs) wire-PE | 65 kA |
| Discharge current In (8/20µs) wire-PE | 25 kA |
| Energy coordination (≤10 m) |
Type I
Type II Type III |
| Follow-on current extinguishing capability Ifi | Not available due for technical reasons |
| Frequency range, max. | 60 Hz |
| Frequency range, min. | 50 Hz |
| Fuse |
Not required
internally available |
| Integrated back-up fuse | Yes |
| Lightning test current Iimp (10/350 µs) (L-PE) | 25 kA |
| Low voltage network | TN-C |
| Mains voltage | 230 V / 400 V |
| Max. continuous voltage, Uc (AC) | 275 V |
| Number of poles | 3 |
| Protection level Up at IN (L/N-PE) | ≤ 1.9 kV |
| Rated voltage (AC) | 230 V |
| Requirements category acc. to IEC 61643-11 |
Type I
Type II Type III |
| Requirements class, acc. to EN 61643-11 |
T1
T2 T3 |
| Response time | <100 ns |
| Short-circuit current rating ISCCR | 100 kA |
| Signalling contact | No |
| Standards |
IEC 61643-11
EN 61643-11 |
| Suitable for | Count-in installation (leakage current free) |
| Temporary surge voltage (over-voltage) - TOV | 442 V |
| Voltage type | AC |
| Stripping length | 18 mm |
| Wire connection method | Screw connection |
| Stripping length, rated connection | 18 mm |
| Tightening torque, min. | 3 Nm |
| Tightening torque, max. | 4.5 Nm |
| Clamping range, rated connection | 16 mm² |
| Clamping range, min. | 1.5 mm² |
| Clamping range, max. | 35 mm² |
| Wire cross-section, solid, min. | 1.5 mm² |
| Wire cross-section, solid, max. | 35 mm² |
| Wire connection cross section, finely stranded, min. | 1.5 mm² |
| Wire connection cross section, finely stranded, max. | 25 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection cross-section, stranded, max. | 35 mm² |
| Voltage type | AC |
| Number of poles | 3 |
| Protection degree | IP20 in installed state |
| Colour |
black
orange |
| Time interval | 5 years |
| Product information | If F1 > 315A gG, then the integrated backup fuse always operates before F1 |
| Approval/Certificate/Document of Conformity | [EU_Konformitätserklärung / EU_Declaration_of_Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_256638) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_319403) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.3022890000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=3022890000) |
| User Documentation |
[Beipackzettel / Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_256378)
[FL_Application Note_Protection of SPDs_EN_WEB](https://mdcop.weidmueller.com/mediadelivery/asset/900_323850) [FL_Applikationsnotiz_Absicherung von SPDs_DE_WEB](https://mdcop.weidmueller.com/mediadelivery/asset/900_323851) |
| Catalogues | [Catalogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp) |
| ETIM 6.0 | EC000941 |
| ETIM 7.0 | EC000941 |
| ETIM 8.0 | EC000941 |
| ETIM 9.0 | EC000941 |
| ETIM 10.0 | EC000941 |
| ECLASS 9.0 | 27-13-08-05 |
| ECLASS 9.1 | 27-13-08-05 |
| ECLASS 10.0 | 27-13-08-05 |
| ECLASS 11.0 | 27-13-08-05 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| ECLASS 14.0 | 27-17-90-90 |
| ECLASS 15.0 | 27-17-90-90 |
| Approvals |  |
| ROHS | Conform |
