Properties
| Version | Interface converter, RS232, TTY |
| Order No. | 8615690000 |
| Type | WDS2 RS232/TTY |
| GTIN (EAN) | 4032248277681 |
| Qty. | 1 items |
| Delivery status | This article will no longer be available in the future. |
| Available until | 30.12.2023 |
| Height | 112.4 mm |
| Height (inches) | 4.425 inch |
| Width | 22.5 mm |
| Width (inches) | 0.886 inch |
| Length | 92.4 mm |
| Length (inches) | 3.638 inch |
| Net weight | 149 g |
| Storage temperature | -20 °C...85 °C |
| Operating temperature | 0 °C...55 °C |
| SIL in compliance with IEC 61508 | None |
| MTTF | 419 a |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC |
Lead 7439-92-1
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol 119-47-1 |
| SCIP | c6099607-b1cd-4fc8-8f5b-8c2defa73093 |
| Communication | Bi-directional |
| Interface | 1x serial RS-232 / TTA |
| Type |
RS232
TTY |

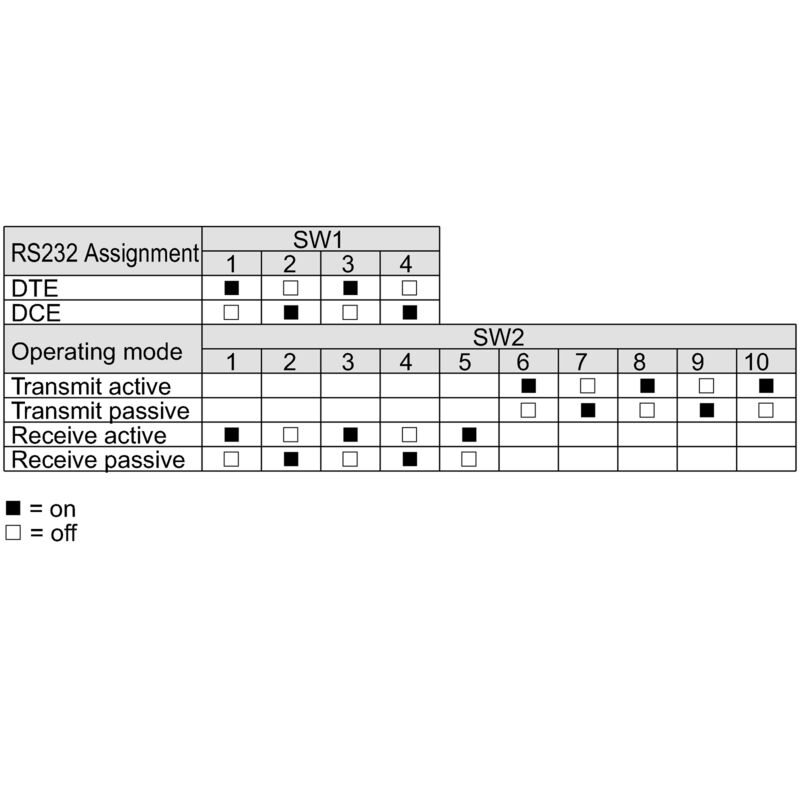

| Assignment | DTE/DCE switchable with DIP switch |
| Bit delay | ≤ 3 µs |
| Bit distortion | < 1.5% |
| Communication | Bi-directional |
| Connection type | SUB-D9 (male plug) |
| Interface | 1x serial RS-232 / TTA |
| Transmission rate | 19.2 kBit/s |
| Type |
RS232
TTY |
| Bit delay | ≤ 3 µs |
| Bit distortion | < 1.5% |
| Load | ≤ 500 Ω |
| Shield connection | KLBÜ 4-6/Z1 |
| Status indicator | LED green: supply voltage, TxD, RxD |

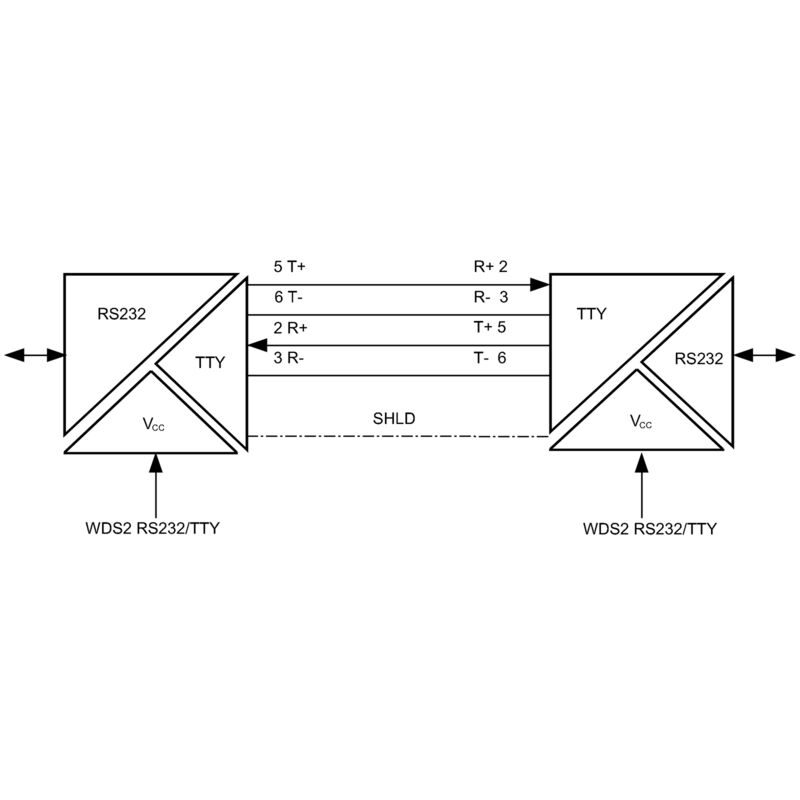

| Transmission channels | Full-duplex |
| Transmission distance | Max. 1000 m twisted pair |
| Transmission rate | 19.2 kBit/s |
| Status indicator | LED green: supply voltage, TxD, RxD |
| Configuration | DIP switch |
| Galvanic isolation | 3-way isolator |
| Power consumption | ca. 0.8 W |
| Protection degree | IP20 |
| Rail | TS 35 |
| Voltage supply | 24 V DC ± 20 % |
| EMC standards |
EN 55011
EN 61000-6-2 EN 61000-6-4 |
| Galvanic isolation | 3-way isolator |
| Impulse withstand voltage | 4 kV |
| Insulation voltage | 2 kV DC / 1 min. |
| Insulation voltage input or output/supply | 2 kV DC / 1 min. |
| Pollution severity | 2 |
| Rated voltage |
between adjacent electric circuits: 300 V between electric circuits and PE: 150 V |
| Surge voltage category | III |
| Type of connection | Screw connection |
| Stripping length, rated connection | 7 mm |
| Tightening torque, min. | 0.4 Nm |
| Tightening torque, max. | 0.5 Nm |
| Clamping range, rated connection | 2.5 mm² |
| Clamping range, min. | 0.5 mm² |
| Clamping range, max. | 2.5 mm² |
| Approval/Certificate/Document of Conformity |
[Application notes -- Type approval](https://mdcop.weidmueller.com/mediadelivery/asset/900_102056)
[Application notes -- DNV / GL certification](https://mdcop.weidmueller.com/mediadelivery/asset/900_102057) [Application notes -- Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37667) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_206166) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8615690000) |
| Product Change Notification | [20220218 Technical change - WAVE series’ signal conditioners WS WZ](https://mdcop.weidmueller.com/mediadelivery/asset/900_252007) |
| User Documentation | [Device description -- Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_36194) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000310 |
| ETIM 7.0 | EC000310 |
| ETIM 8.0 | EC000310 |
| ETIM 9.0 | EC000310 |
| ECLASS 9.0 | 19-17-92-90 |
| ECLASS 9.1 | 27-21-01-90 |
| ECLASS 10.0 | 19-17-92-90 |
| ECLASS 11.0 | 19-17-90-90 |
| ECLASS 12.0 | 27-06-03-20 |
| ECLASS 13.0 | 27-06-03-20 |
| ECLASS 14.0 | 27-06-03-20 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
