Properties
| Order No. | 8000075198 |

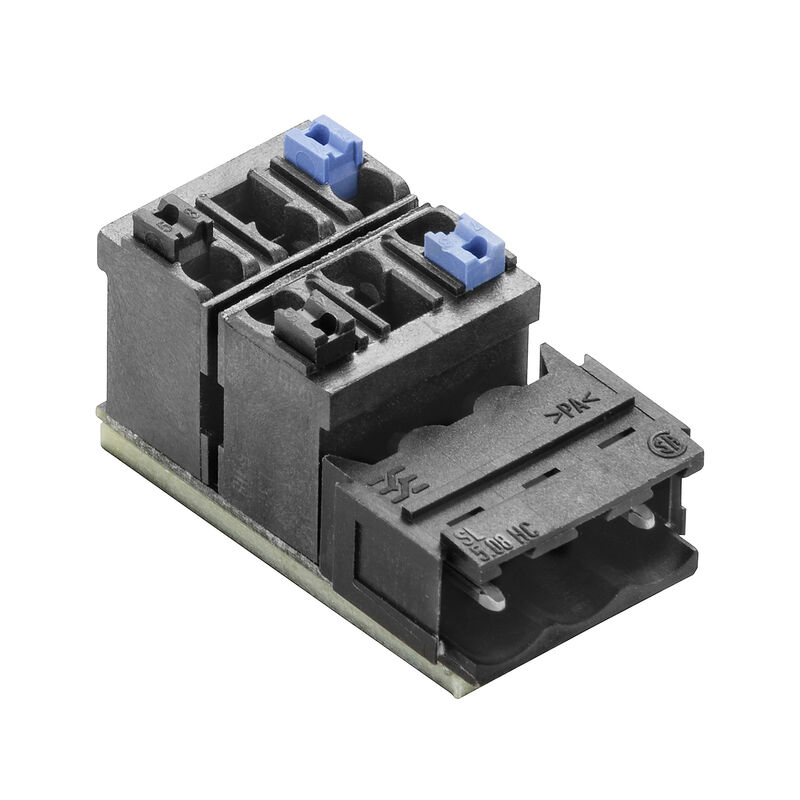

| Type | Y-INTERFACE SL |
| GTIN (EAN) | 8430243428439 |
| Qty. | 16 items |
| Depth | 16.4 mm |
| Depth (inches) | 0.646 inch |
| Height | 29.8 mm |
| Height (inches) | 1.173 inch |
| Width | 17 mm |
| Width (inches) | 0.669 inch |
| Net weight | 6 g |
| Storage temperature | -40...70 °C |
| Operating temperature | -40...70 °C |
| Humidity at operating temperature | 0…85% (no condensation) |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |

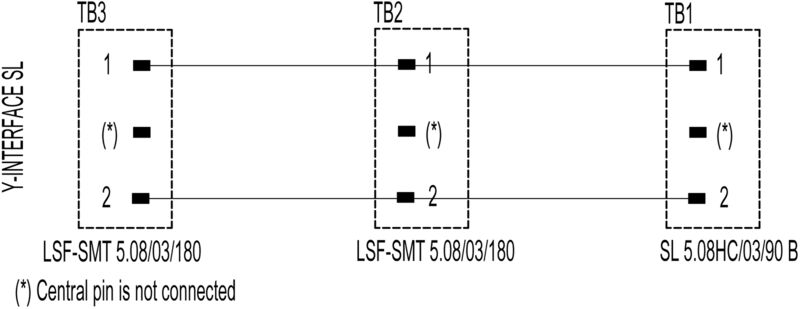

| Distribution PCB connectors | LSF-SMT 5.08/03/180 (no central pin) |
| Supply plug-in connectors | SL 5.08HC/03/90B (no central pin) |
| Protection degree | IP30 |
| Operating voltage | 230 V |
| Maximum current per distributor connection | 6 A |
| Total operating current | 12 A |
| Rated insulation voltage | 250 V AC |
| Surge voltage category | III |
| Pollution severity | 3 |
| Pulse voltage test (1,2/50 μs) | 6 kV |
| Clamping range, max. | 1.5 mm² |
| Clamping range, min. | 0.13 mm² |
| Max. wire cross-section, AWG | AWG 14 |
| Min. wire cross-section, AWG | AWG 28 |
| Stripping length | 10 mm |
| Type of connection | PUSH IN |
| Type of connection | Plug-in connection |
| Approval/Certificate/Document of Conformity | [EU Declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_269983) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_278292) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8000075198) |
| User Documentation |
[EN Data Sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_274258)
[DE Data Sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_274259) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002780 |
| ETIM 7.0 | EC002780 |
| ETIM 8.0 | EC002780 |
| ETIM 9.0 | EC002780 |
| ECLASS 9.0 | 27-14-11-52 |
| ECLASS 9.1 | 27-14-11-52 |
| ECLASS 10.0 | 27-14-11-52 |
| ECLASS 11.0 | 27-14-11-52 |
| ECLASS 12.0 | 27-14-11-52 |
| ECLASS 13.0 | 27-14-11-52 |
| ECLASS 14.0 | 27-14-11-52 |
| Approvals |  |
| ROHS | Conform |
