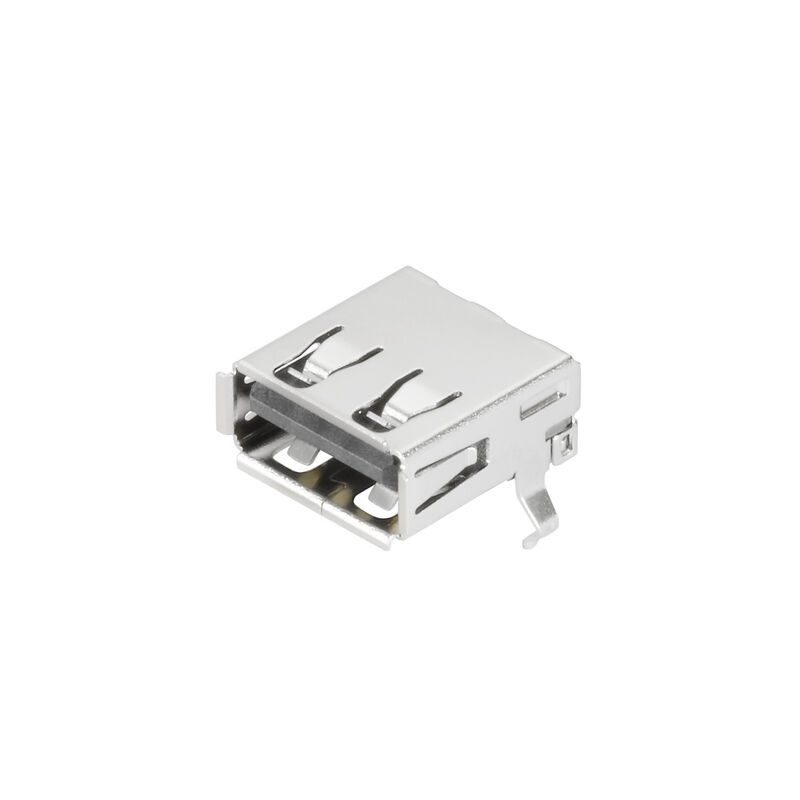

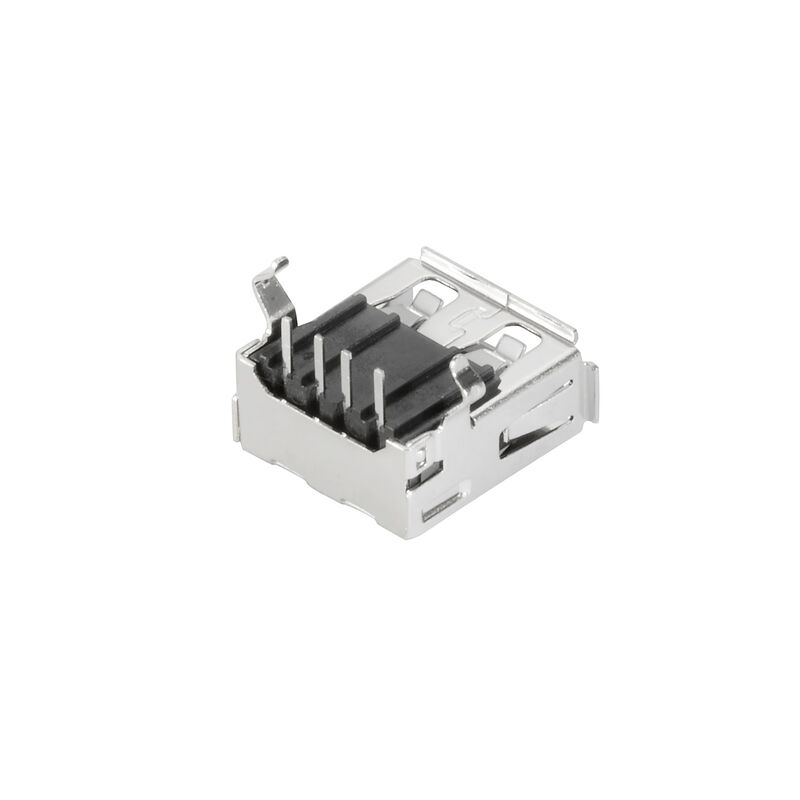

USB2.0A T1H 2.5N4 TY BK
OMNIMATE Data - USB jack, PCB plug-in connector, USB 2.0, Type A, 480 Mbps, THT solder connection, 90°, Plugging cycles: ≥ 1500, Pitch in mm (P): 2.00, Number of poles: 4, PBT, 30...80 µ" Ni / ≥ 30 µ" Au , Tray (manual assembly)
Tuotteen tunnus
2563710000
Ominaisuudet

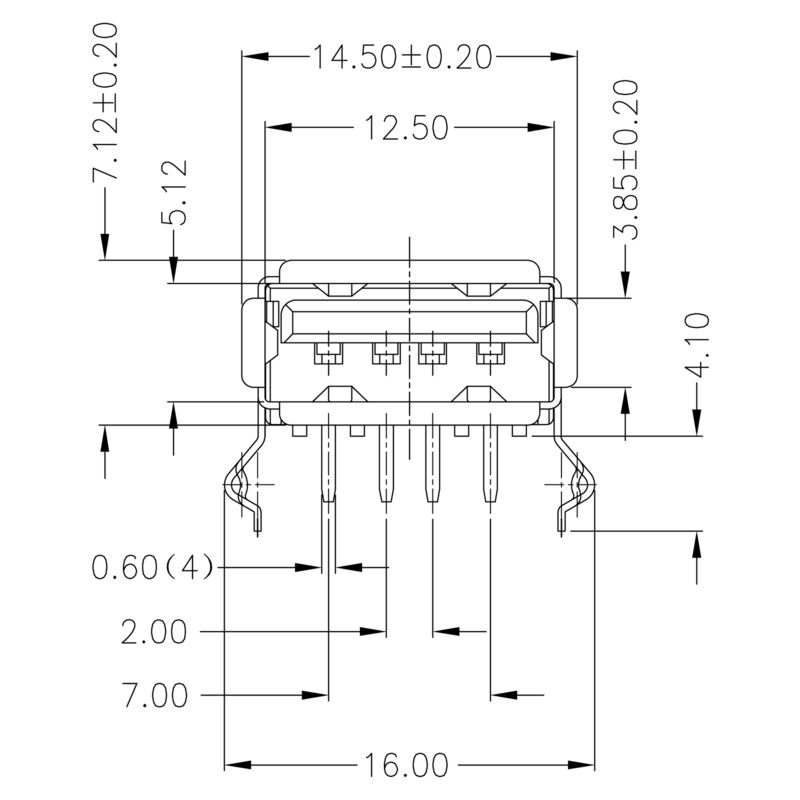

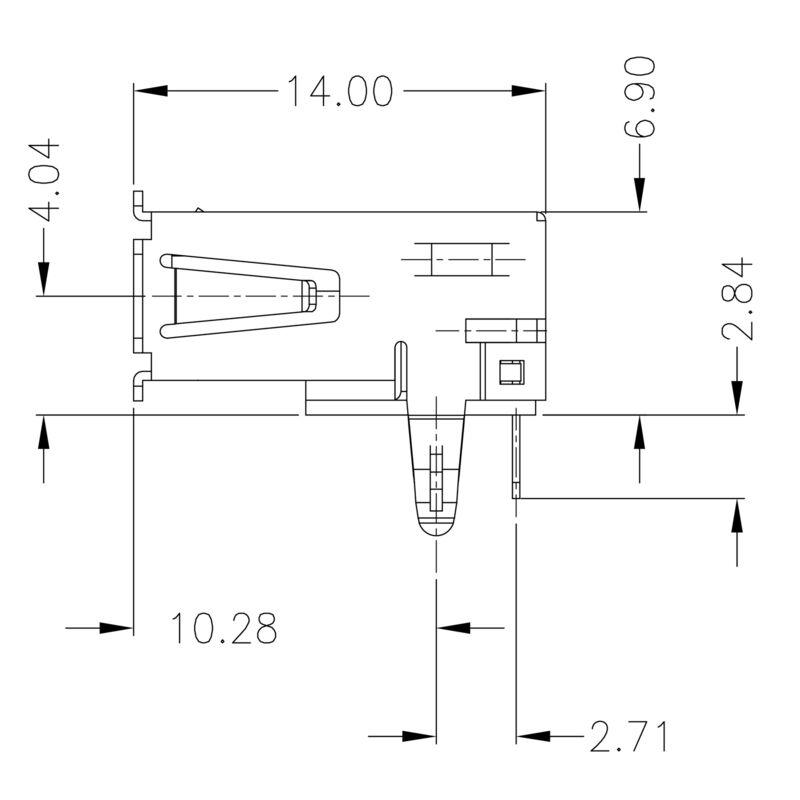

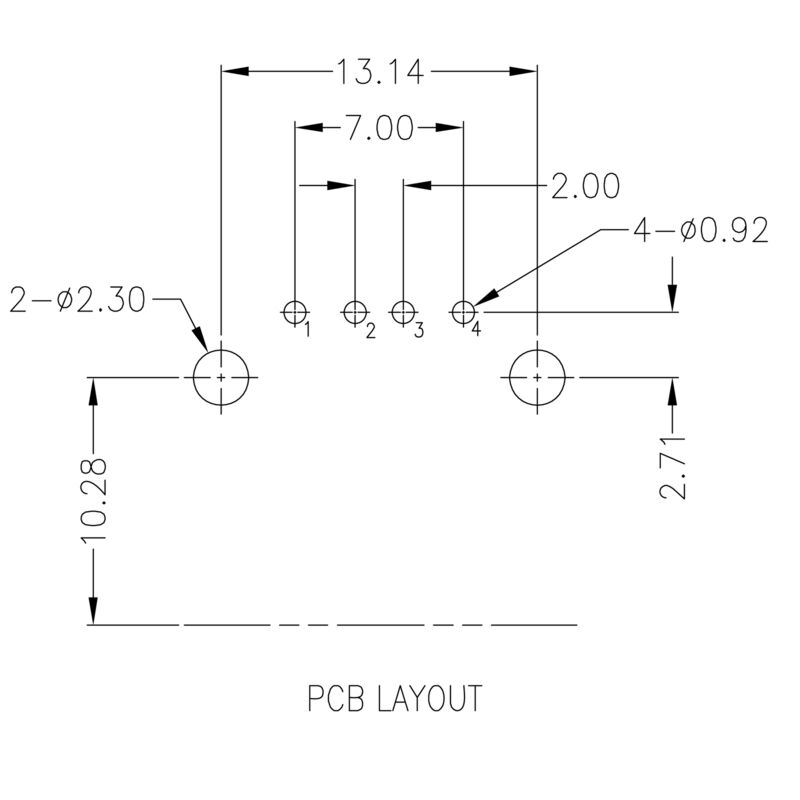

| Version | OMNIMATE Data - USB jack, PCB plug-in connector, USB 2.0, Type A, 480 Mbps, THT solder connection, 90°, Plugging cycles: ≥ 1500, Pitch in mm (P): 2.00, Number of poles: 4, PBT, 30...80 µ" Ni / ≥ 30 µ" Au , Tray (manual assembly) |
| Order No. | 2563710000 |
| Type | USB2.0A T1H 2.5N4 TY BK |
| GTIN (EAN) | 4050118572322 |
| Qty. | 100 items |
| Packaging | Tray (manual assembly) |
| Depth | 14 mm |
| Depth (inches) | 0,551 inch |
| Height | 9,74 mm |
| Height (inches) | 0,383 inch |
| Height of lowest version | 6,9 mm |
| Width | 14,5 mm |
| Width (inches) | 0,571 inch |
| Net weight | 0,001 g |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| LED | No |
| Mounting onto the PCB | THT solder connection |
| Number of poles | 4 |
| Number of solder pins per pole | 1 |
| Outgoing elbow | 90° |
| Performance-Category | 480 Mbps |
| Pitch in inches (P) | 0,079 " |
| Pitch in mm (P) | 2 mm |
| Plugging cycles | ≥ 1500 |
| Plugging force/pole, max. | 35 N |
| Product family | OMNIMATE Data - USB jack |
| Protection degree | IP20 |
| Pulling force / pole, min. | 10 N |
| Shield surface | nickel-plated |
| Shield tabs | none |
| Shielding | Yes |
| Shielding material | Brass |
| Solder pin dimensions | Octagonal |
| Solder pin length (l) | 2,84 mm |
| Soldering process |
Manual soldering
Wave soldering |

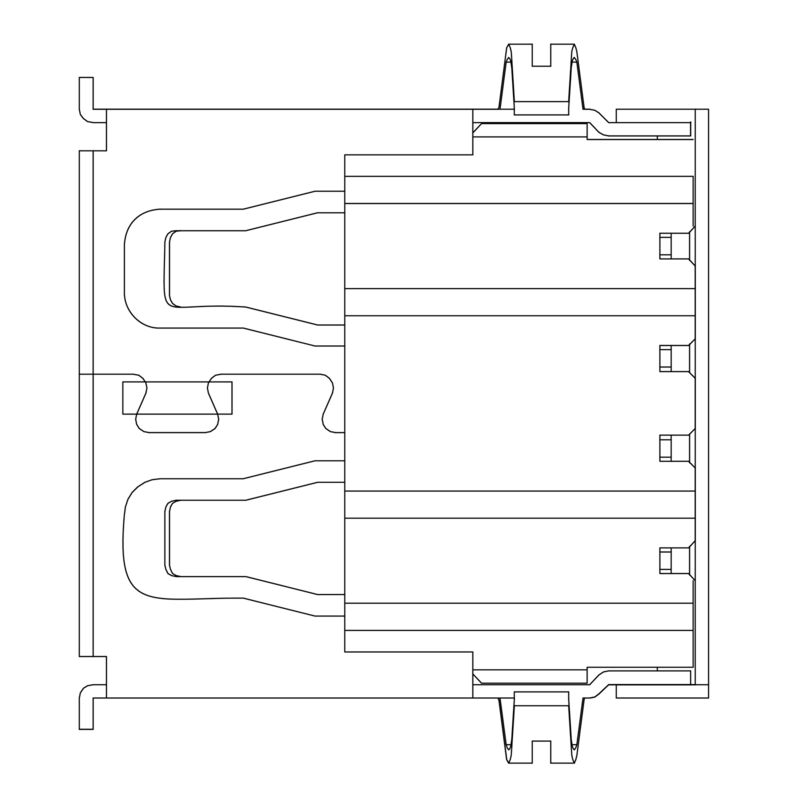

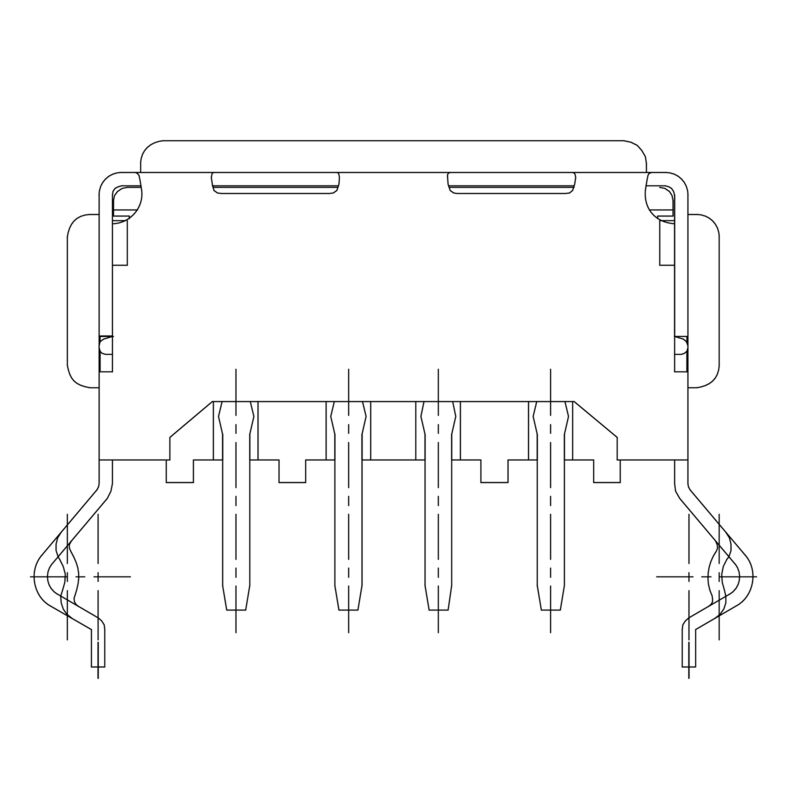

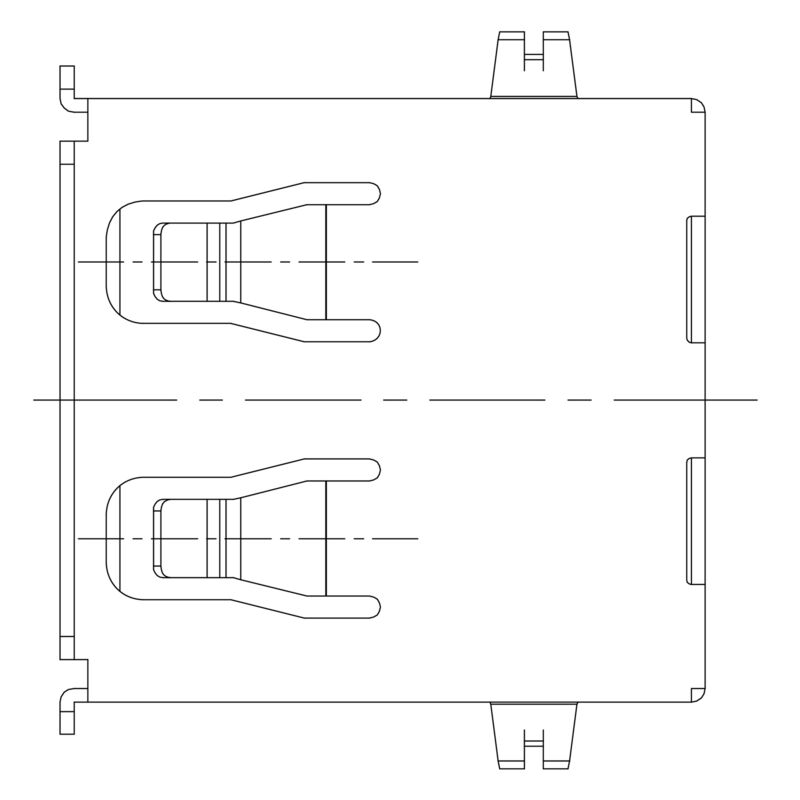

| Tolerance of solder pin position | ± 0.1 mm |
| Transmission rate | 480 Mbps |
| Type of connection | Socket connector |
| Dielectric strength, contact / contact | 500 V AC |
| Insulation strength | ≥ 1000 MΩ |
| Rated current | 1.5 A at 250 V AC |
| Rated voltage | 30 V |
| Insulating material | PBT |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Insulating material group | II |
| Comparative Tracking Index (CTI) | ≥ 500 |
| Insulation strength | ≥ 1000 MΩ |
| UL 94 flammability rating | V-0 |
| Contact base material | Phosphorus bronze |
| Contact material | Cu-alloy |
| Contact surface | Gold over nickel |
| Layer structure of plug contact | 30...80 µ" Ni / ≥ 30 µ" Au |
| Storage temperature, min. | −20 °C |
| Storage temperature, max. | 60 °C |
| Operating temperature, min. | −40 °C |
| Operating temperature, max. | 85 °C |
| Packaging | Tray (manual assembly) |
| VPE length | 250 mm |
| VPE width | 199 mm |
| VPE height | 19 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_212100) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2563710000) |
| Product Change Notification |
[20211223 USB 2.0A – Änderung Schirmblech](https://mdcop.weidmueller.com/mediadelivery/asset/900_249821)
[20211223 USB 2.0A – Change of shielding design](https://mdcop.weidmueller.com/mediadelivery/asset/900_249822) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
| ETIM 8.0 | EC002637 |
| ETIM 9.0 | EC002637 |
| ECLASS 9.0 | 27-44-04-02 |
| ECLASS 9.1 | 27-44-04-02 |
| ECLASS 10.0 | 27-44-04-02 |
| ECLASS 11.0 | 27-46-02-01 |
| ECLASS 12.0 | 27-46-02-01 |
| ECLASS 13.0 | 27-46-02-01 |
| ECLASS 14.0 | 27-46-02-01 |
| ROHS | Conform |
