SAISGP-P-5A-4/8-P12
SAISGP-P-5A-4/8-P12

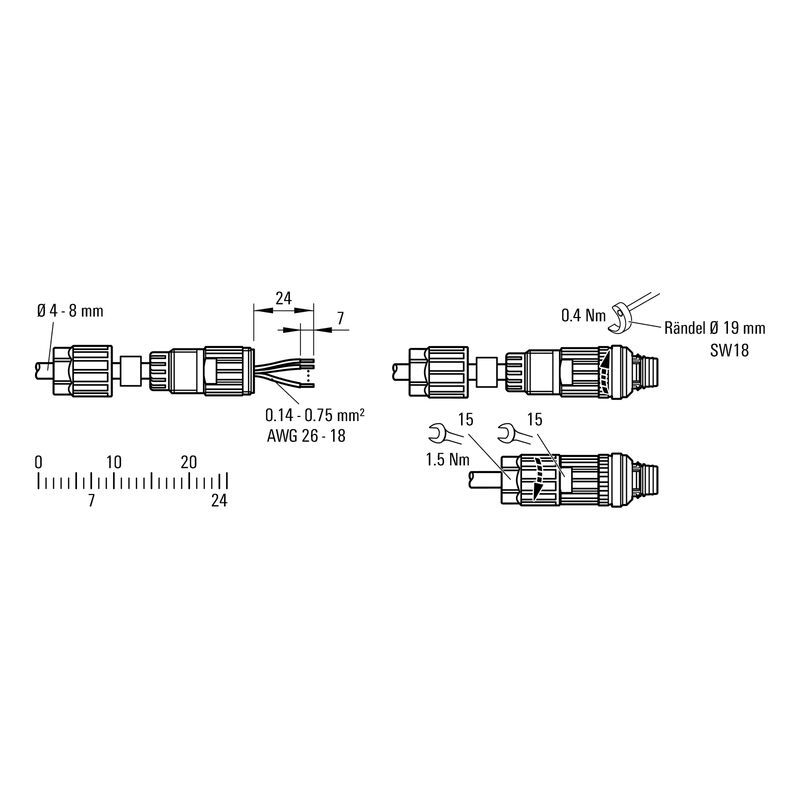

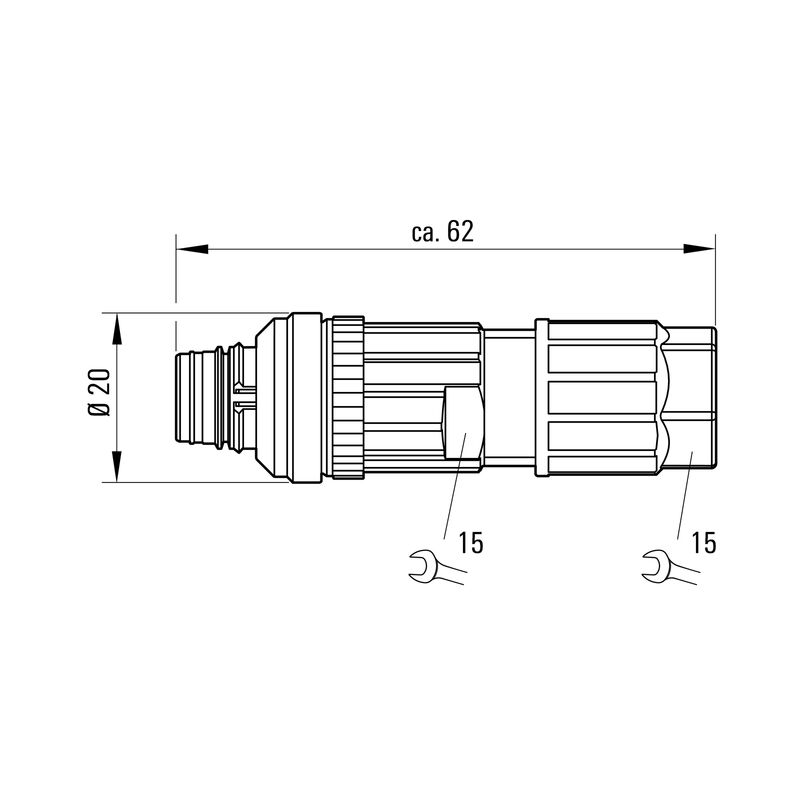

Dimensioned drawing
SAISGP-P-5A-4/8-P12
Pole scheme
M12 = A-coded
SAISGP-P-5A-4/8-P12

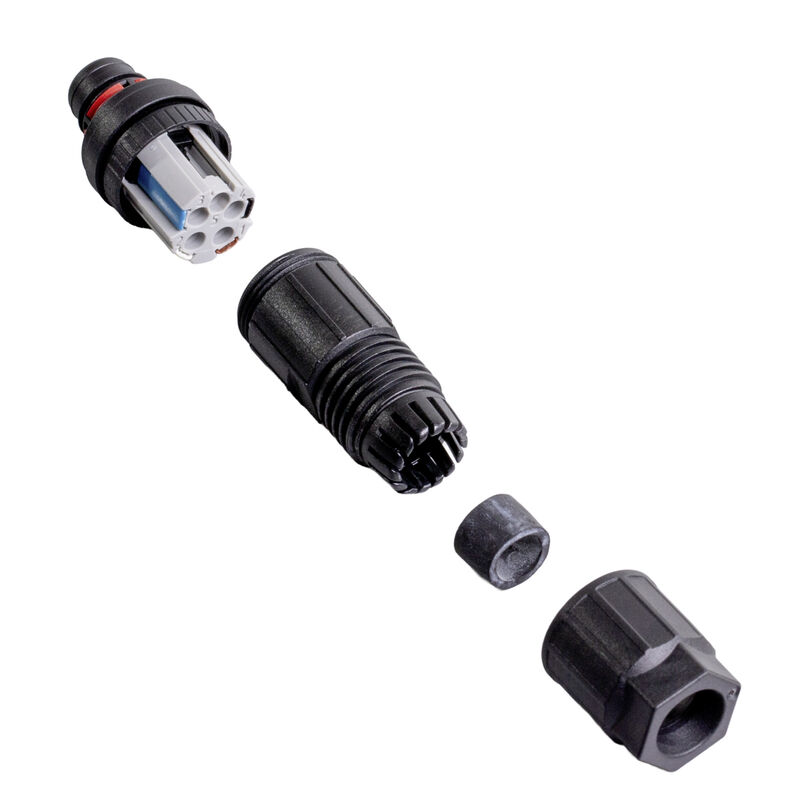

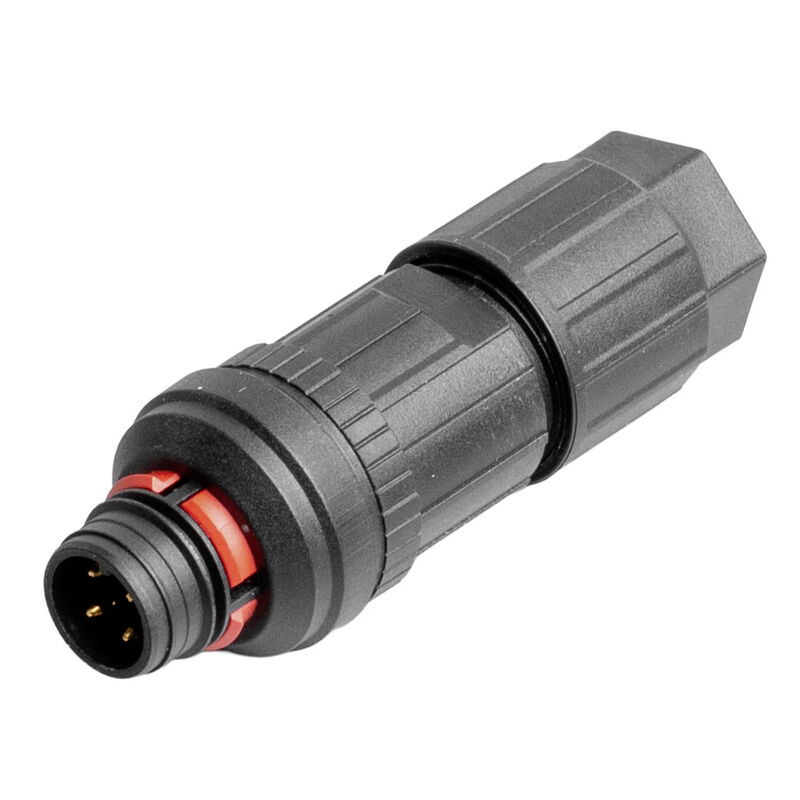

Similar to illustration
SAISGP-P-5A-4/8-P12
SAISGP-P-5A-4/8-P12

SAISGP-P-5A-4/8-P12

Connettore collegabile al campo, M12 Push-Pull

Ürün No. 3153330000
Veri sayfasını indir Engineering Support Product Downloads
aksesuarıdır 3 İlgili ürünler 36
Approvals Dati generali per l’ordinazione Dimensions and weights Conformità ambientale del prodotto Technical data customisable plug-in connectors Datos generales Standards Klasyfikacje

Approvals

ROHS
Conform

Dati generali per l’ordinazione

Version
Connettore collegabile al campo, M12 Push-Pull
Order No.
3153330000
Type
SAISGP-P-5A-4/8-P12
GTIN (EAN)
4099987636209
Qty.
1 adet

Dimensions and weights

Width
62 mm
Width (inches)
2,441 inch
Diameter
20 mm
Net weight
13 g

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme senza esenzione
REACH SVHC
No SVHC above 0.1 wt%

Technical data customisable plug-in connectors

Cable diameter, max.
8 mm
Cable diameter, min.
4 mm
Coding
A-coded
Conductor cross-section, max.
0,75 mm²
Conductor cross-section, min.
0,14 mm²
Contact material
CuSn
Contact surface
Ni/Au
Gender of contact
Male
Housing main material
PA 66
Insulation resistance
≥ 100 MΩ
Nominal current
4 A
Number of poles
4
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP67
Rated voltage
  • Rated voltage:
    48 V
  • Voltage type:
    AC
  • Jmenovité napětí:
    60 V
  • Typ napětí:
    DC
Shield connection
Nein
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Plástico
Type of connection
PUSH IN

Datos generales

Number of poles
4
Connection 1
M12
Connection 2
PUSH IN
UL 94 flammability rating
V-0
Housing main material
PA 66
Connection thread
M12 Push-Pull
Contact material
CuSn
Contact surface
Ni/Au
Wire cross-section, solid, min. (AWG)
AWG 26
Wire cross-section, solid, max. (AWG)
AWG 18
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross section, finely stranded, max.
0,75 mm²
Contact holder materials
PA
Shielding
Yes
No
Protection degree
IP65
IP67
Plugging cycles
≥ 100

Standards

Connector standard
IEC 61076-2-010
IEC 61076-2-101
Fire safety for railway vehicles
DIN EN 45545-2
Shock and vibration proof according to
EN 50155

Klasyfikacje

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
