CLI C 2-33 SDR SG
CLI C 2-33 SDR SG

CLI C 2-33 SDR SG

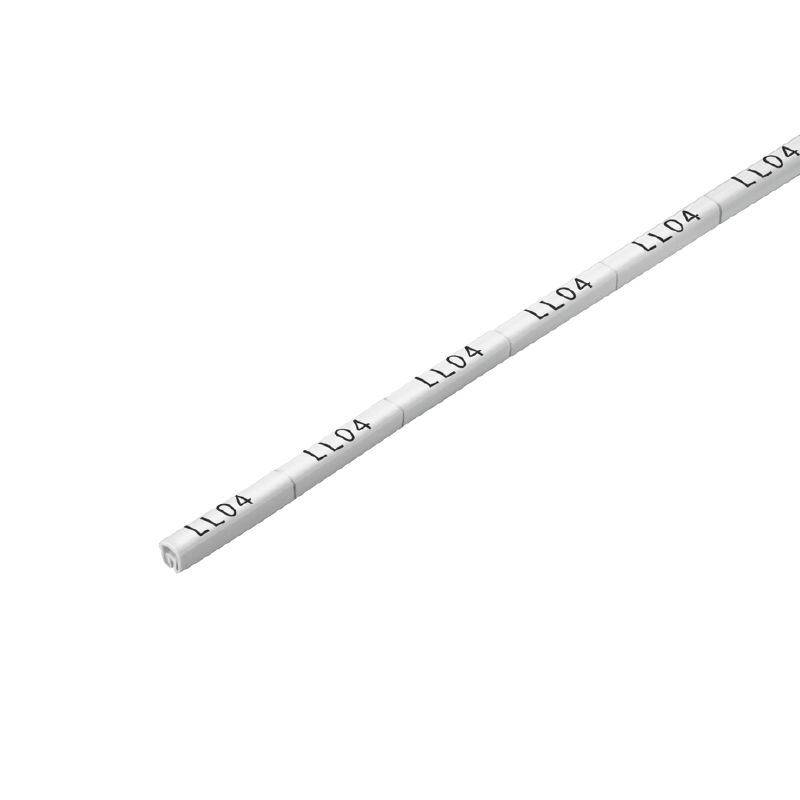

CableLine, 컨덕터 및 케이블 마커, 4 - 10 mm, 33 x 6.9 mm, 고객 사양

Produkt ID 1912740000
Download datablad Product Downloads Engineering Support
Anvendte produkter 14
Approvals 일반 주문 데이터 Dimensioni e pesi Temperatures Conformità ambientale del prodotto General data Conductor and cable markers Klasyfikacje

Approvals

ROHS
Conform

일반 주문 데이터

Version
CableLine, 컨덕터 및 케이블 마커, 4 - 10 mm, 33 x 6.9 mm, 고객 사양
Order No.
1912740000
Type
CLI C 2-33 SDR SG
GTIN (EAN)
4032248542581
Qty.
100 Styk

Dimensioni e pesi

Depth
8 mm
Depth (inches)
0,315 inch
Height
33 mm
Wysokość (cale)
1,299 inch
Width
6,9 mm
Width (inches)
0,272 inch
Net weight
0,86 g

Temperatures

Operating temperature range
-30...80 °C

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme senza esenzione
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
PVC, soft, without Cadmium
Colour
To customer specification
Colour of printing
black
Halogen
Yes
Imprint
Custom printing
Operating temperature range
-30...80 °C
Operating temperature range, max.
80 °C
Operating temperature range, min.
-30 °C
Orientation of print
horizontal
Printed characters
To customer specification
Printing method
Por chorro de tinta
Type of printing
según especificaciones del cliente
UL 94 flammability rating
V-0
Version
Boucle
Width
6,9 mm

Conductor and cable markers

Conductor cross-section, max.
16 mm²
Conductor cross-section, min.
2,5 mm²
Conductor O.D.
4 - 10 mm
Conductor O.D., max.
10 mm
Conductor O.D., min.
4 mm
Cross-section for connected wire
2.5 - 16 mm²
Halogen
Yes

Klasyfikacje

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
