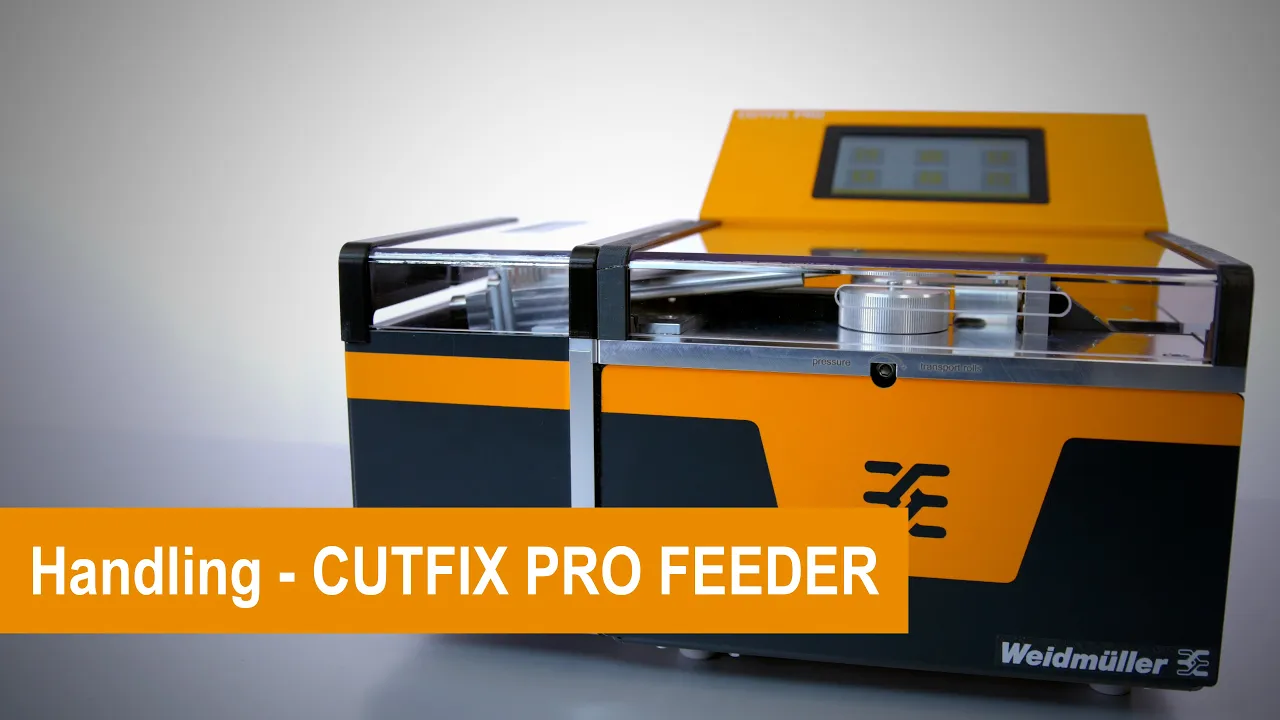

CUTFIX PRO FEEDER

CUTFIX PRO FEEDER

Automatic machines, Cutting machine

Item No. 2797200000
Download data sheet Product Downloads
Accessories 1 Related products 2
Approvals General ordering data Dimensions and weights Environmental Product Compliance Automatic cutting Classifications

Approvals

Zulassungen
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Ausfuehrung
Automatic machines, Cutting machine
Best.-Nr.
2797200000
Art
CUTFIX PRO FEEDER
GTIN (EAN)
4064675213215
Qty.
1 items

Dimensions and weights

Depth
370 mm
Depth (inches)
14.567 inch
Höhe
250 mm
Height (inches)
9.842 inch
Breite
300 mm
Width (inches)
11.811 inch
Net weight
13,000 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
Esenzione RoHS (se applicabile/nota)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
d2df479e-2b79-4e98-adc7-b03577df98ae

Automatic cutting

Amount pre-selection, max.
Код количества регулируемой детали
Aperture (max. diameter)
8 mm outer diameter
Connected load
0.1 kW
Drive
electrical
Elektrické připojení
100 - 240 V AC / 50/60 Hz
Flexible/solid individual conductors
max. 10 mm2 / max. 2.5 mm2
Indicator display
LCD display
Keyboard
Touch display
Length pre-selection, max.
999,999 mm
Length pre-selection, min.
10 mm
Software
for data exchanging with IBM-compatible PC

Classifications

ETIM 8.0
EC002778
ETIM 9.0
EC002778
ETIM 10.0
EC002778
ECLASS 14.0
17-13-01-01
ECLASS 15.0
17-13-01-01
