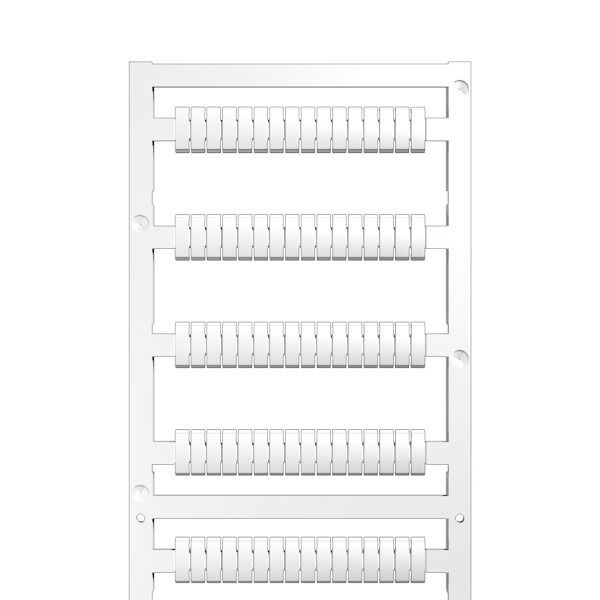

MF-W 9/3.5F MC NE WS
Similar to illustration
MF-W 9/3.5F MC NE WS

MF-W 9/3.5F MC NE WS

MultiFit, Terminal marker, 9 x 3.5 mm, Pitch in mm (P): 3.50 WAGO, white

Ürün No. 1521040000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
İlgili ürünler 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Connector markers Product images Classifications

Approvals

ROHS
Conform

General ordering data

Version
MultiFit, Terminal marker, 9 x 3.5 mm, Pitch in mm (P): 3.50 WAGO, white
Order No.
1521040000
Type
MF-W 9/3.5F MC NE WS
GTIN (EAN)
4050118327960
Qty.
800 adet

Dimensions and weights

Height
9 mm
Height (inches)
0,354 inch
Width
3,5 mm
Width (inches)
0,138 inch
Net weight
0,071 g

Temperatures

Operating temperature range
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.001 kg CO2 eq.

General data

Application/manufacturer
WAGO
Breite
3,5 mm
Brennbarkeitsklasse nach UL 94
V-2
Caracteres impresos
neutral
Colour
white
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halógenos
No
Material básico
Polyamide 66
Number of markers per combination
1 MultiCard = Terminal marker
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
-40 °C
Type of printing
neutral

Connector markers

Raster in mm (P)
3,5 mm

Product images

Classifications

ETIM 8.0
EC000761
ETIM 9.0
EC000761
ETIM 10.0
EC000761
ECLASS 14.0
27-28-11-01
ECLASS 15.0
27-28-11-01
