WS-A 8/12 MM WS

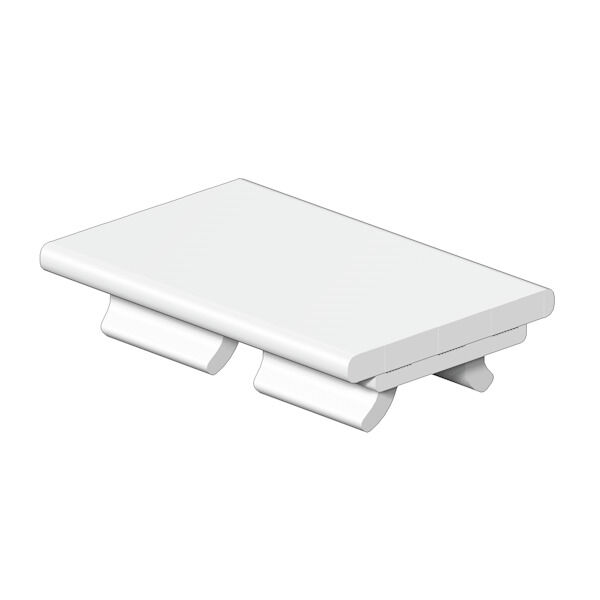

WS, Terminal marker, 8 x 12 mm, Weidmueller, white

Produkt ID 2619900000
Download datablad Engineering-support Produktdownloads
Tilbehør 3 Er tilbehør til 12 Anvendte produkter 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Classifications

Approvals

ROHS
Conform

General ordering data

Version
WS, Terminal marker, 8 x 12 mm, Weidmueller, white
Order No.
2619900000
Type
WS-A 8/12 MM WS
GTIN (EAN)
4050118626186
Qty.
300 Styk

Dimensions and weights

Height
8 mm
Height (inches)
0,315 inch
Width
12 mm
Width (inches)
0,472 inch
Net weight
0,195 g

Temperatures

plage de température d'utilisation
-50...90 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Applikation / Hersteller
Weidmueller
Barevný
biały
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
Halogen
No
Operating temperature range, max.
90 °C
Operating temperature range, min.
−50 °C
Rozsah provozní teploty
-50...90 °C
Tištěné znaky
neutral
UL 94 flammability rating
V-2
Velikost pole na označení
7 x 11.5 mm
Version
halogen-free
Width
12 mm
Základní materiál
PC-ABS
TPU

Classifications

ETIM 8.0
EC000761
ETIM 9.0
EC000761
ETIM 10.0
EC000761
ECLASS 14.0
27-28-11-01
ECLASS 15.0
27-28-11-01
