CLI C 02-3 GE/SW L MP
CLI C 02-3 GE/SW L MP

CLI C 02-3 GE/SW L MP

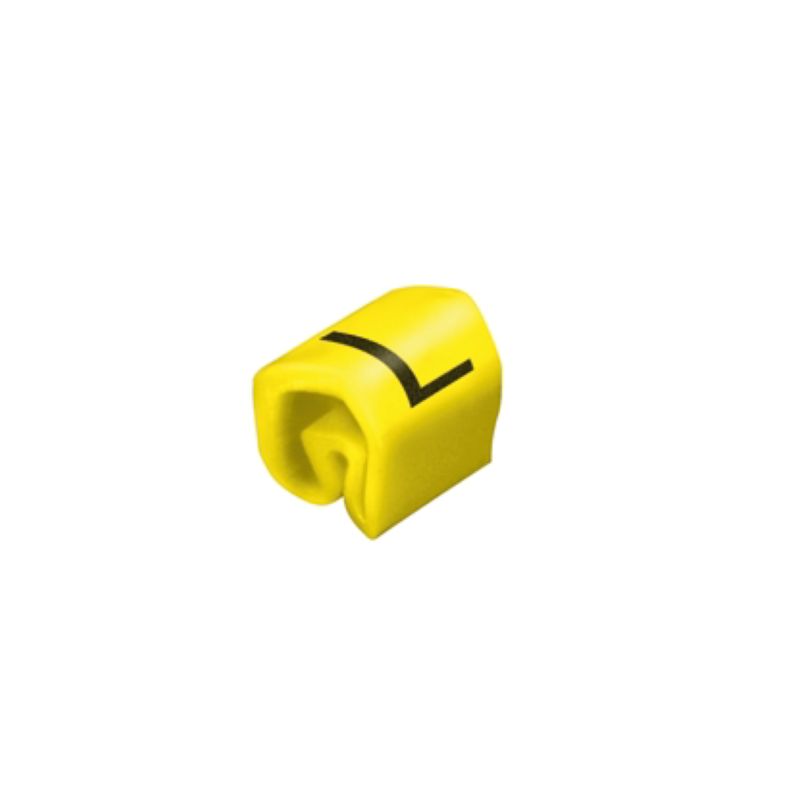

CableLine, Conductor and cable markers, 1.3 - 3 mm, 3 x 3.4 mm, yellow

Ürün No. 0252111659
Veri sayfasını indir Product Downloads Engineering Support
Aksesuarlar 44 İlgili ürünler 26
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Általános adatok 컨덕터 및 케이블 마커 Classifications

Approvals

ROHS
Conform

General ordering data

Verze
CableLine, Conductor and cable markers, 1.3 - 3 mm, 3 x 3.4 mm, yellow
Číslo objednávky
0252111659
Art
CLI C 02-3 GE/SW L MP
GTIN (EAN)
4008190104696
Qty.
200 adet

Dimensions and weights

Depth
3,5 mm
Depth (inches)
0,138 inch
Höhe
3 mm
Height (inches)
0,118 inch
Breite
3,4 mm
Width (inches)
0,134 inch
Net weight
0,025 g

Temperatures

Einsatztemperaturbereich
-30...80 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Általános adatok

Basic material
PVC, puha, kadmium nélkül
Colour
giallo
Colour of printing
검정
Contact
L
Halogen
Yes
Industrias recomendadas
Process
Machinery
Material colour according to resistance code
4
Number of markers per combination
1 Component part = Conductor and cable markers
Número de señalizadores por unidad de embalaje
  • Form of supply:
    Component part
Operating temperature range
-30...80 °C
Operating temperature range, max.
80 °C
Operating temperature range, min.
-30 °C
Orientation of print
horizontal
Printed characters
Upper-case letters
Printing method
hot-embossing
Type of printing
Standard
UL 94 flammability rating
V-0
Version
MultiPack
Width
3,4 mm

컨덕터 및 케이블 마커

Conductor cross-section, max.
1,5 mm²
Conductor cross-section, min.
0,2 mm²
Conductor O.D.
1.3 - 3 mm
Conductor O.D., max.
3 mm
Conductor O.D., min.
1,3 mm
Cross-section for connected wire
0.2 - 1.5 mm²
Halogen
Yes

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
