Özellikler
| Order No. | 1009080000 |

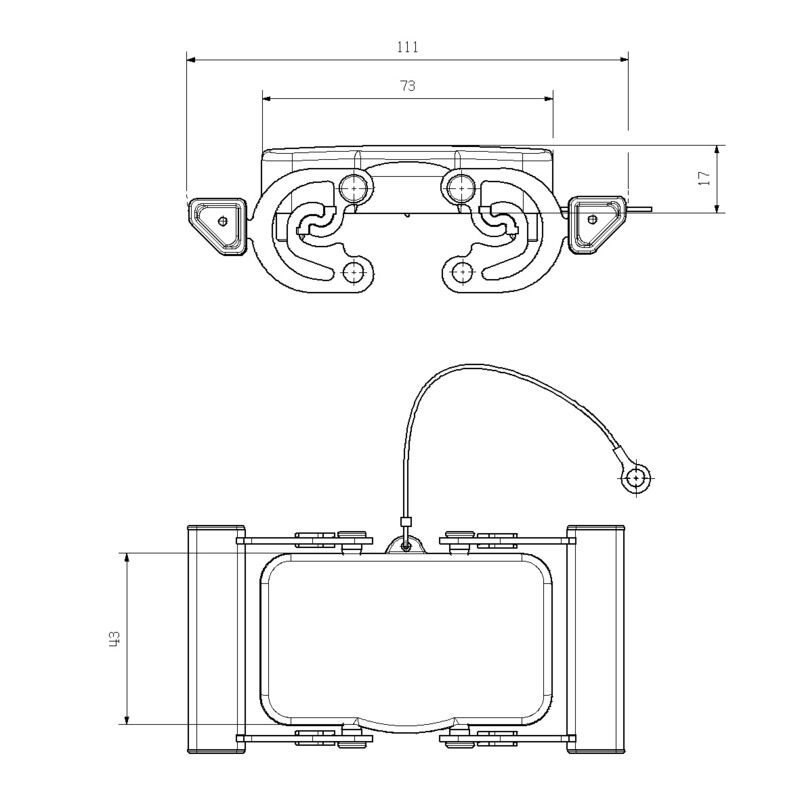

| Type | HDC 10B DODQ 2QB |
| GTIN (EAN) | 4032248713820 |
| Qty. | 1 adet |
| Net weight | 132 g |
| Limit temperature | -40 °C ... 125 °C |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | e98b2b24-ba23-41bf-8d19-0dda3647412f |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6bI |
| Cable entry | For bases |
| EMC housings | No |
| Housing main material | diecast aluminium |
| Protection degree | IP65 (in plugged condition) |
| Surface finish | Powder coating |
| BG | 4 |
| Cable entry | For bases |
| Colour (RAL) | RAL 7001 |
| Design | Standard |
| Design of housing | Cover for lower part of housing |
| Design of locking system | Side-locking clamp on upper side |
| Size | 4 |
| Suitable for ModuPlug® | Yes |
| Top part/bottom part/lid | Cover |
| Type | Cover |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_67612) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1009080000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1009080000) |
| Product Change Notification |
[20220214 Technical change to HDC housings](https://mdcop.weidmueller.com/mediadelivery/asset/900_252005)
[20220214 Technische Änderung bei HDC-Gehäusen](https://mdcop.weidmueller.com/mediadelivery/asset/900_252006) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC000437 |
| ETIM 8.0 | EC000437 |
| ETIM 9.0 | EC000437 |
| ECLASS 9.0 | 27-44-02-02 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-02 |
| ECLASS 11.0 | 27-44-02-02 |
| ECLASS 12.0 | 27-44-02-02 |
| ECLASS 13.0 | 27-44-02-02 |
| ECLASS 14.0 | 27-44-02-02 |
| ROHS | Conform |
